Product Overview

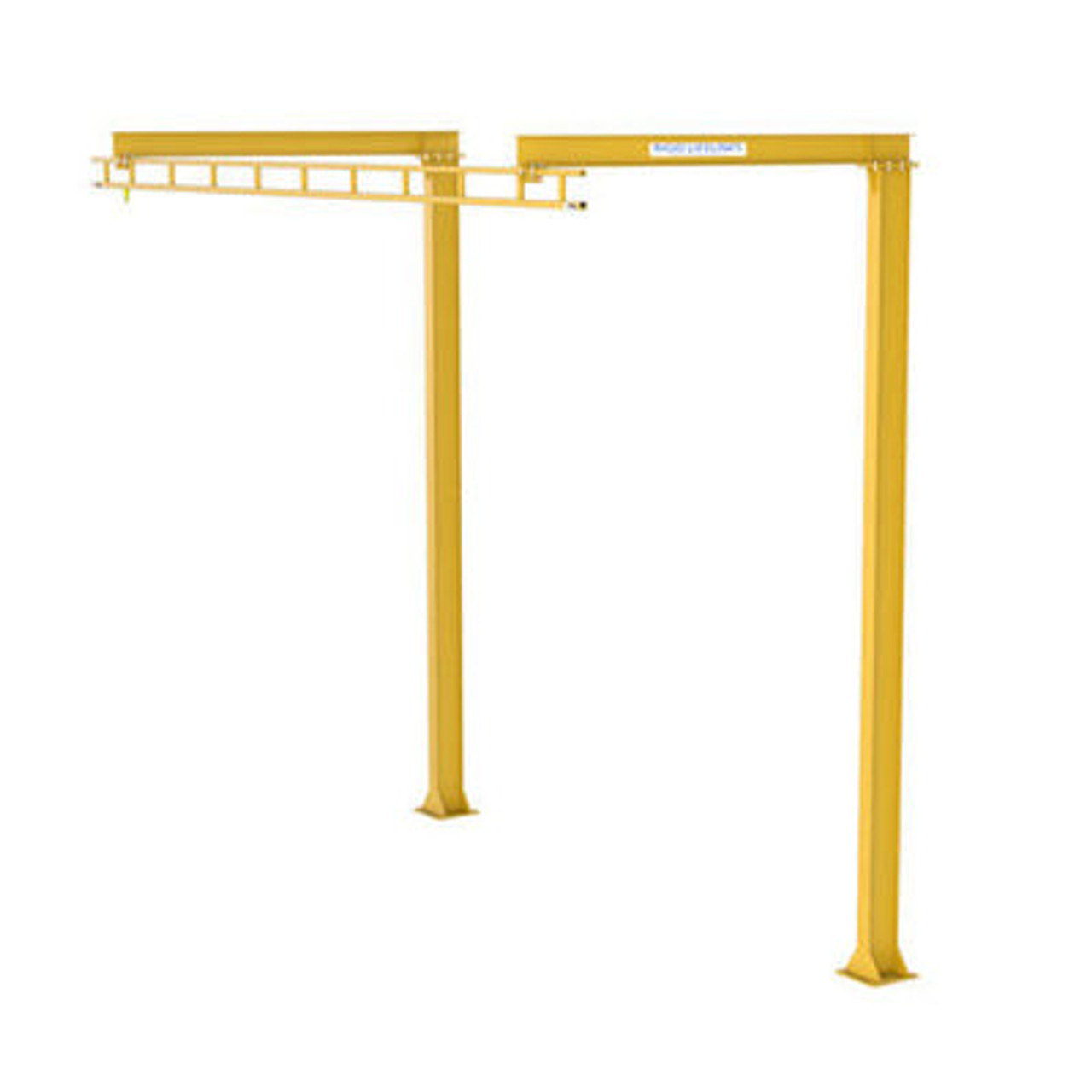

Developed for optimal performance and safety, the Inverted-L Anchor Track System FAFS-2-12-33-520DST-30 accommodates two users simultaneously, making it a vital tool for operations requiring dual functionality. This innovative system is engineered to enhance workplace safety while providing a robust solution for material handling applications.
The Inverted-L Anchor Track System integrates cutting-edge trussed dual track technology, ensuring impressive structural integrity and stability. With a substantial track length of 33 feet, including 18-inch overhangs on both ends, this system supports seamless material movement and positioning across varied job sites. The 30-foot support centers ensure effective load distribution, minimizing potential sag and enhancing reliability.
- Worker Capacity: Accommodates 2 users simultaneously for collaborative operations.
- Trussed Dual Track: Provides enhanced strength and stability to the overall system.
- Track Length: Total length of 33'-0” with 18” overhangs for flexibility.
- Support Centers: Spaced at 30'-0” for optimal load distribution.
- Trolley-Hook Height: Achieves a maximum vertical clearance of 22'-0” to facilitate material handling.
- Arm Reach: A flexible 12'-0” arm reach for broad operational coverage.
- Number of Supports: Two support columns for even load distribution.
- Trolleys: Features anchor trolleys equipped with patented auto-brake technology for enhanced control.
- Fixed End Stops: Two fixed stops at each end to prevent overtravel and ensure safety.
- Overturning Moment: Exceptional resistance to tipping with a calculated moment of 690,000.
- Safety Features: Painted in Armorpoxy Safety Yellow for high visibility and outdoor resilience.
- Weight: Total unit weight of 3,288 lbs for robust performance analysis.
- Recommended Foundation: Suggested 7' x 7' x 4' footing for optimal stability.
- Complete System: Includes monorail track, hangers, freestanding cantilevered support columns, and trolleys for a comprehensive solution.
In conclusion, the FAFS-2-12-33-520DST-30 Standard Inverted-L Anchor Track System represents a pinnacle of engineering, delivering stability, safety, and versatility for dual-user operations across a variety of applications. Invest in this effective solution to elevate safety standards and improve productivity in your workspace.
