Product Overview

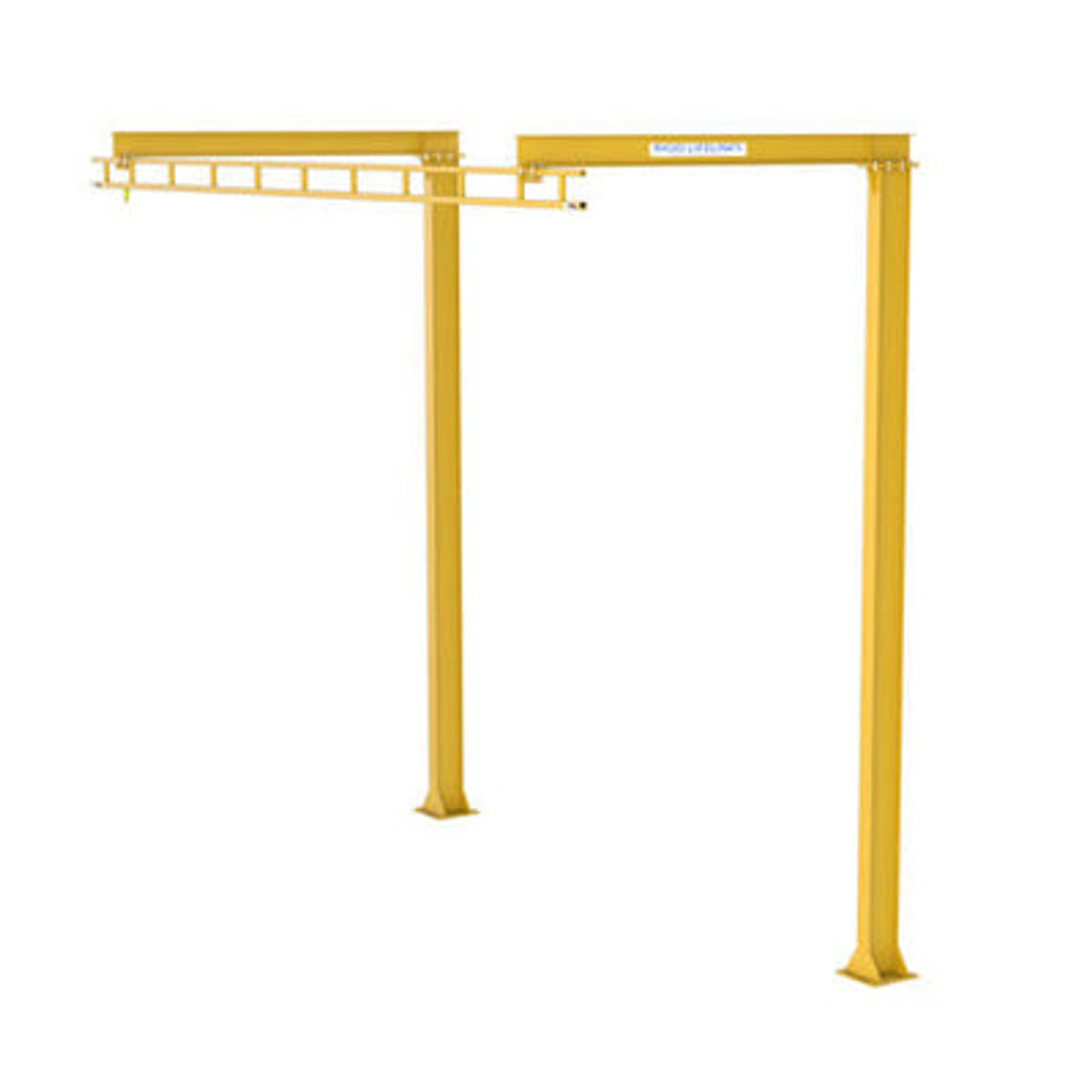

The given specifications outline the details of an expansive structure, likely an overhead crane or similar industrial equipment. Let's break down and expand upon each component:
Track Length: 43'-0" Including 18" Overhangs on Both Ends The overall length of the track, including 18-inch overhangs on both ends, provides stability and room for maneuverability. This design ensures flexibility in movement and positioning.
Support Centers: 20'-0" With support centers set at 20 feet apart, the structure is well-supported, minimizing sag and ensuring the stability of the track system.
Trolley-Hook Height: 22'-0" The trolley-hook height at 22 feet signifies the maximum clearance or lifting capacity of the system, allowing it to accommodate loads or materials within this vertical range.
Arm Reach: 12'-0" The arm reach of 12 feet indicates the maximum horizontal extension of the system, providing versatility in accessing various points within its operational radius.
Number of Supports: 3 The three support points distribute the load evenly, enhancing the structural integrity of the system and contributing to its overall stability during operation.
Trolleys: Anchor Trolleys with Patented Auto-Brake Technology Equipped with anchor trolleys featuring patented auto-brake technology, the system ensures precise control and safety during movement and positioning.
Fixed End Stops: Two at Each End The inclusion of fixed end stops at both ends serves as a safety feature, preventing overtravel and ensuring controlled stops during operation.
Overturning Moment: 670,000 The specified overturning moment of 670,000 indicates the system's resistance to tipping or overturning, highlighting its stability and robust design.
Painted with Armorpoxy Safety Yellow for Outdoor Application The safety yellow coating enhances visibility and weather resistance, making the system suitable for outdoor applications while also promoting workplace safety.
Weight: 4,827 lbs The weight of 4,827 pounds provides an indication of the system's mass, essential for calculating load capacities, foundation requirements and ensuring proper structural support.
Recommended Foundation: 7' x 7' x 4' The suggested foundation dimensions of 7 feet by 7 feet by 4 feet indicate the required footing for optimal stability and load distribution, ensuring the longevity and performance of the entire structure.
In summary, these specifications collectively describe a well-designed and robust industrial system tailored for outdoor applications, emphasizing safety, stability, and precise control during material handling operations.
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
43'-0" Including 18" Overhangs on Both Ends
Arm Reach: 12'-0"
Number of Supports 3
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 670,000
Painted with Armorpoxy Safety Yellow for Outdoor Application
Weight: 4,827 lbs
Recommended
Foundation: 7' x 7' x 4'
