Product Overview

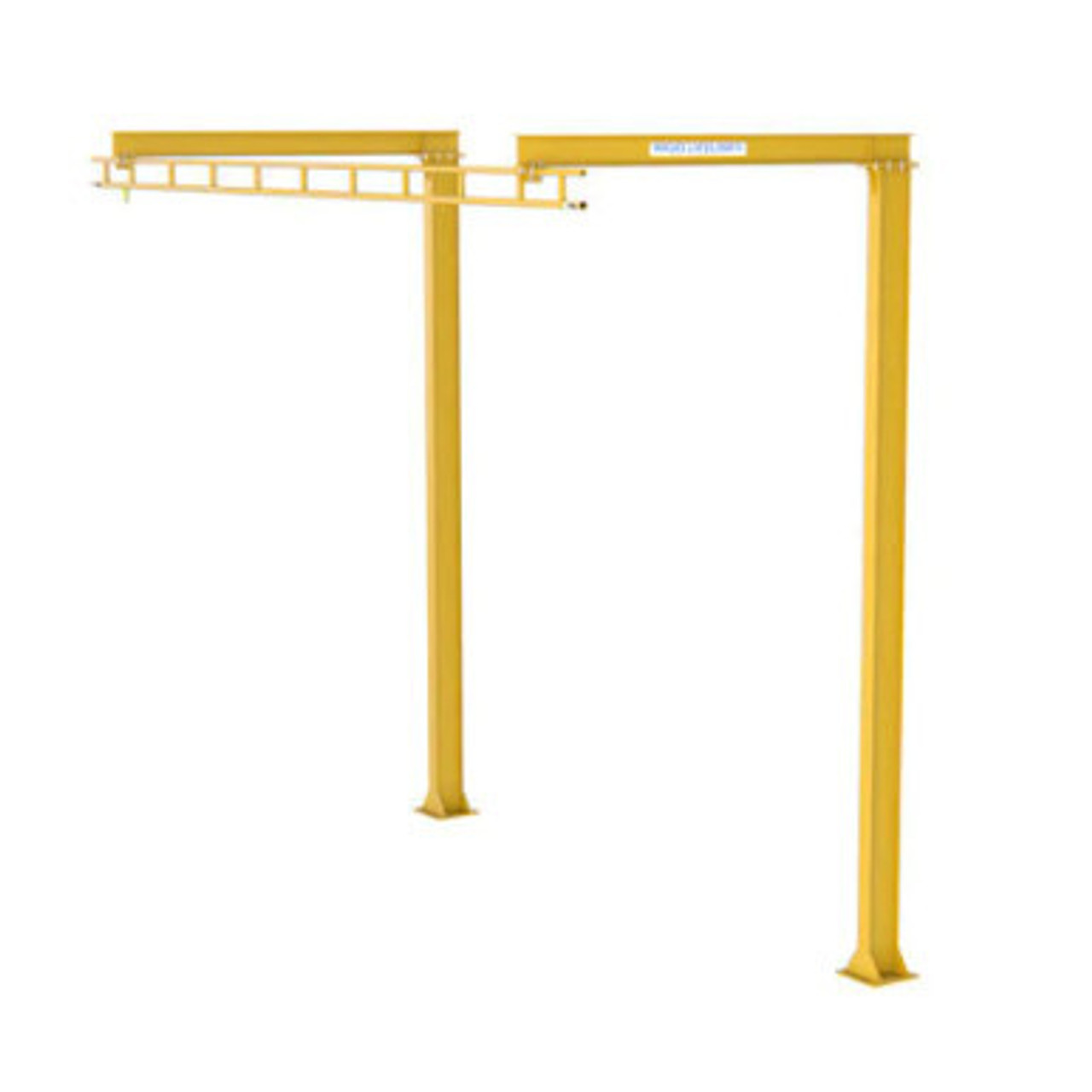

FAFS-2-10-43-520DST-20 Standard Inverted-L
Worker Capacity:
This system is designed to accommodate two users simultaneously, allowing for passable operations, which enhances productivity and workflow efficiency in industrial settings.
Track Type:
Utilizing a Trussed Dual Track configuration, this system provides enhanced stability and load-bearing capacity, ensuring reliable and efficient material transportation.
Track Length:
The track spans a length of 43 feet, including 18-inch overhangs on both ends. This generous length allows for ample space for maneuvering and accessing materials with ease, facilitating smooth workflow operations.
Support Centers:
Support centers are strategically placed at 20-foot intervals along the track, ensuring uniform weight distribution and structural integrity. This layout enhances the system's stability and performance, even under heavy loads.
Trolley-Hook Height:
With a trolley-hook height of 22 feet, this system facilitates smooth and controlled movement along the track, allowing for precise material handling operations. The elevated height ensures compatibility with various material handling equipment and processes.
Arm Reach:
Featuring a 10-foot arm reach, operators can effectively access materials within their workspace, promoting efficiency and minimizing operational downtime. The extended arm reach enhances flexibility and adaptability in material handling tasks.
Number of Supports:
Supported by three robust columns, this system ensures robust stability and structural integrity. The multiple supports distribute the load evenly, minimizing stress on individual components and enhancing overall system reliability.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, this system provides precise control and enhanced safety during material transportation. The advanced braking mechanism ensures smooth and controlled movement, minimizing the risk of accidents and damage to materials.
Technology:
- Fixed End Stops: Incorporates two fixed end stops at each end of the track, preventing trolleys from exceeding safe limits and enhancing operational safety. The fixed-end stops provide reliable stopping points, reducing the risk of overruns and collisions.
- Overturning Moment: Engineered to withstand high overturning moments of up to 610,000, this system offers exceptional stability and reliability, even in challenging operating conditions. The robust design ensures safe and efficient operation, minimizing downtime and maximizing productivity.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, this system offers excellent visibility and corrosion resistance. The durable coating provides long-lasting protection against environmental factors, ensuring longevity and durability in outdoor environments.
Weight:
With a weight of 4,676 lbs, this system balances strength and maneuverability, facilitating ease of installation and maintenance. The manageable weight simplifies handling and transportation, reducing installation time and labor costs.
Recommended Foundation:
A foundation measuring 7' x 7' x 4' is recommended to provide adequate support and stability for the system. The recommended foundation dimensions ensure optimal performance and longevity, minimizing the risk of structural issues and ensuring safe operation.
Inclusions:
The system is complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated material transportation needs. The inclusion of all necessary components simplifies installation and ensures seamless integration into existing industrial infrastructure.
This meticulously engineered system embodies reliability, safety, and efficiency, making it an ideal choice for industrial environments requiring advanced and dependable material handling solutions.

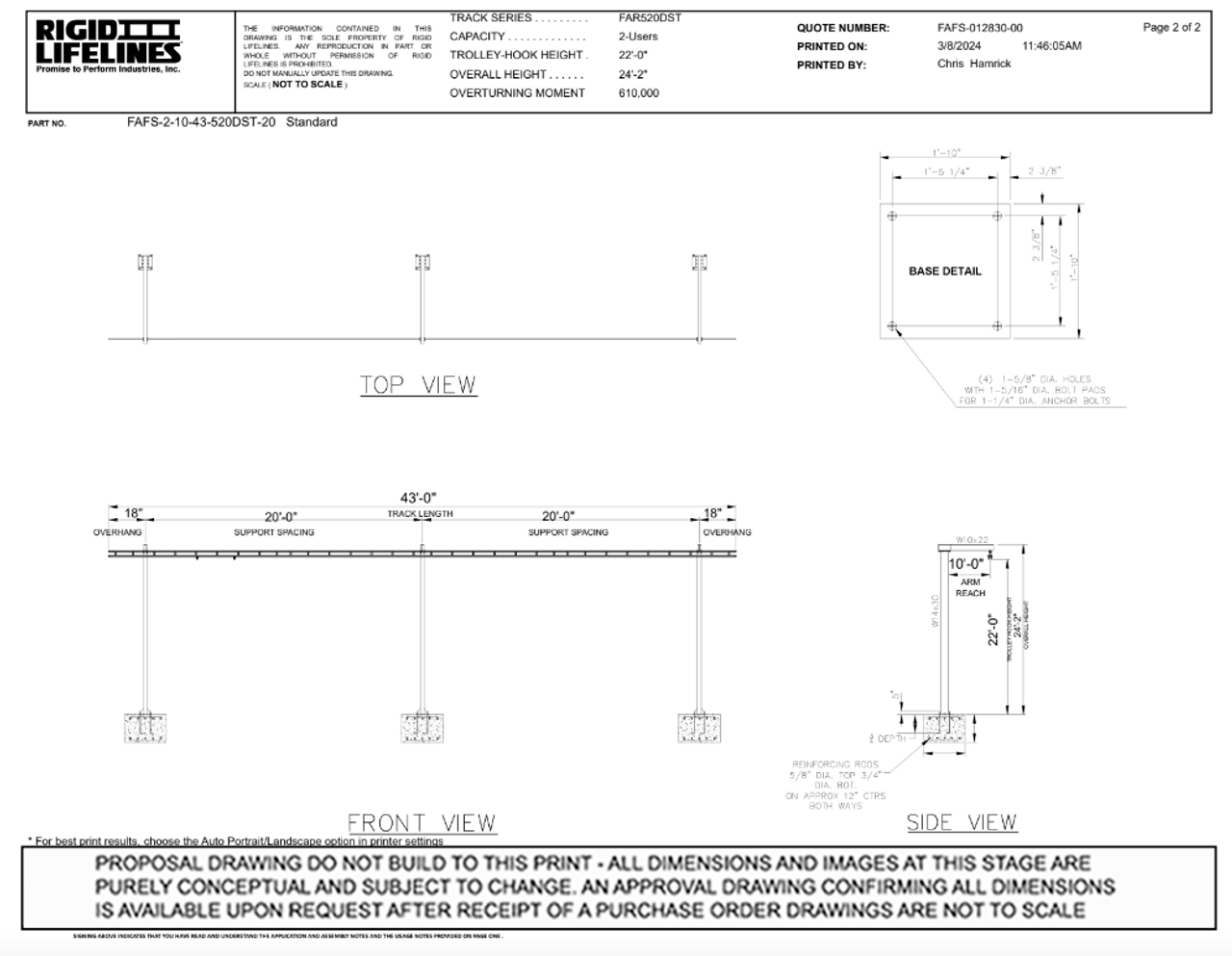

FAFS-2-10-43-520DST-20 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 10'-0"
Number of Supports 3
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 610,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 4,676 lbs
Recommended
Foundation: 7' x 7' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
