Product Overview

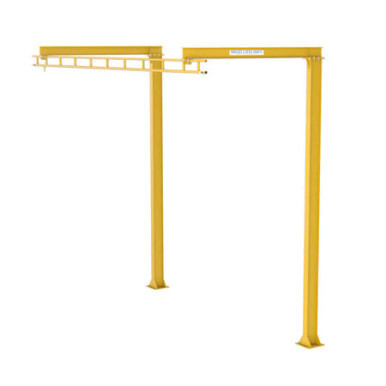

FAFS-1-08-43-520-20 Standard Inverted-L
Worker Capacity:
This system is designed to accommodate a single user at a time, ensuring safety and efficiency in industrial operations.
Track Type:
Featuring a Trussed Single Track configuration, the system offers robust structural support and stability.
Track Length:
With a total length of 43 feet, including 18-inch overhangs on both ends, users benefit from ample space for maneuvering and accessing materials.
Support Centers:
Strategically positioned support centers every 20 feet along the track ensure even weight distribution and enhance stability during operation.
Trolley-Hook Height:
The trolley-hook is positioned at a height of 22 feet, providing sufficient clearance for smooth movement along the track.
Arm Reach:
With an arm reach of 8 feet, operators can easily access materials within their workspace without the need for additional equipment.
Number of Supports:
Supported by three sturdy columns, the system ensures structural integrity and stability under varying loads.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, the system ensures precise control and safe movement along the track, enhancing overall operational safety.
Technology:
- Fixed End Stops: Positioned at each end of the track, fixed end stops prevent the trolley from traveling beyond safe limits, enhancing user safety.
- Overturning Moment: Engineered to withstand overturning moments up to 450,000, the system offers stability and reliability in demanding industrial environments.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, the system boasts enhanced visibility and protection against environmental factors, ensuring longevity and durability.
Weight:
Weighing 4,316 lbs, the system strikes a balance between durability and manageability, facilitating ease of installation and maintenance.
Recommended Foundation:
A foundation measuring 6' x 6' x 4' is recommended to provide adequate support and stability for the system.
Price:
Priced at $15,535.58, the system offers exceptional value for its quality, durability, and advanced features.
Inclusions:
The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing a comprehensive solution for elevated transportation needs.
This meticulously designed system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring elevated transportation solutions. If you have any further inquiries or wish to proceed with acquisition, please do not hesitate to contact us.
FAFS-1-08-43-520-20 Standard
Inverted-L
Worker Capacity: 1-User (Non-Passable)
Trussed Single Track
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 8'-0"
Number of Supports 3
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 450,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 4,316 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
