Product Overview

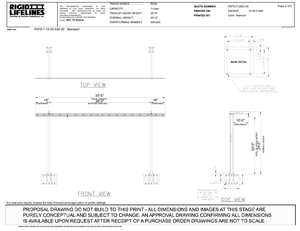

FAFS-1-10-43-520-20 Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Track Length: The track is designed with support centers ensuring stability and safety along its entirety.
Trolley-Hook Height: The height from the ground to the trolley-hook is 43 feet, including 18 inches of overhangs on both ends, providing ample clearance.
Arm Reach: Users can effectively reach objects within a radius of 20 feet.
Supports: The system is supported by three robust columns strategically placed to distribute weight evenly and ensure structural integrity.
Trolleys: Equipped with Anchor Trolleys featuring a Patented Auto-Brake mechanism, guaranteeing secure and controlled movement along the track.
Technology: Fixed End Stops are installed at both ends of the track, preventing the trolley from moving beyond safe limits.
Overturning Moment: The system's design is engineered to withstand overturning moments, ensuring stability even under challenging conditions.
Weight: With a weight of 4,467 lbs, the system is sturdy yet manageable for installation and maintenance.
Recommended Foundation: A foundation capable of supporting up to 500,000 pounds is advised for optimal stability and safety.
Coating: The system is coated with Armorpoxy Safety Yellow, providing enhanced visibility and weather resistance for outdoor applications.
Components: The system includes a complete set of components, comprising monorail track, hangers, freestanding cantilevered support columns, and trolleys, ensuring comprehensive functionality and ease of installation.
Price: The system is available at a price of $16,018.20, offering excellent value for its quality, durability, and functionality.
Worker Capacity: 1-User (Non-Passable)
Trussed Single Track
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 10'-0"
Number of Supports 3
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 500,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 4,467 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
