Product Overview

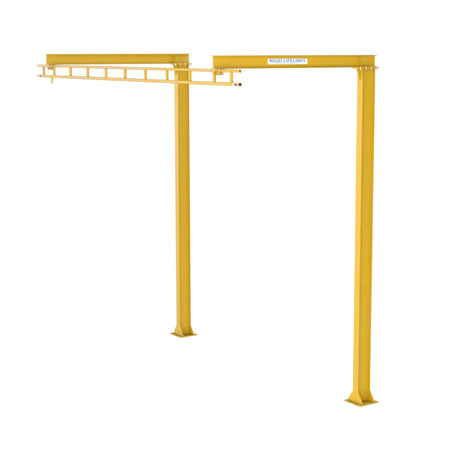

The FAFS-1-10-23-520-20 Standard Inverted-L system is designed for specific industrial applications, providing a comprehensive solution for material handling.
- Worker Capacity: The system is designed to accommodate one user at a time and is non-passable, meaning it's intended for only one user or for carrying people.
- Track Configuration: It utilizes a trussed single track configuration, providing stability and support for the trolley movement. The track length measures 23 feet, including 18-inch overhangs on both ends, offering sufficient coverage for material transport.
- Support Centers: The support centers are spaced at intervals of 20 feet, ensuring structural integrity and stability throughout the system.
- Trolley-Hook Height: The trolley-hook height is set at 22 feet, facilitating the lifting and transport of materials within the designated height range.
- Arm Reach: The system offers an arm reach of 10 feet, allowing for efficient material handling within the specified radius.
- Number of Supports: It requires two support structures to uphold the track and facilitate smooth trolley movement.
- Trolleys: Equipped with anchor trolleys featuring patented auto-brake technology, ensuring secure and controlled movement along the track.
- Fixed End Stops: Fixed end stops are installed at each end of the track, preventing trolleys from traveling beyond the designated endpoints.
- Overturning Moment: The system is designed to withstand an overturning moment of 500,000 units, ensuring stability and safety during operation.
- Paint: Coated with Armorpoxy Safety Yellow paint, the system is suitable for outdoor applications, providing enhanced visibility and durability against environmental elements.
- Weight: The total weight of the system is 2,908 pounds, which should be considered in the installation and support structure design.
- Recommended Foundation: A foundation measuring 6 feet by 6 feet by 4 feet is recommended to support the system adequately.
- Complete System: The system comes complete with all necessary components, including the monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for material handling needs.

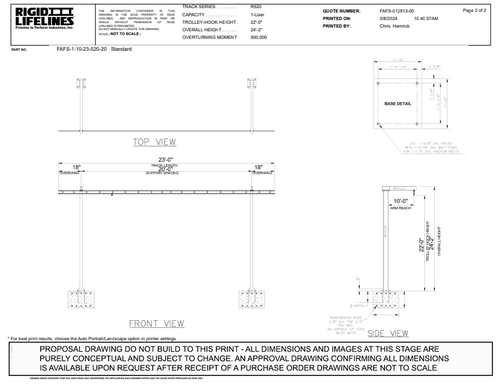

FAFS-1-10-23-520-20 Standard
Inverted-L
Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 10'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 500,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 2,908 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
