Product Overview

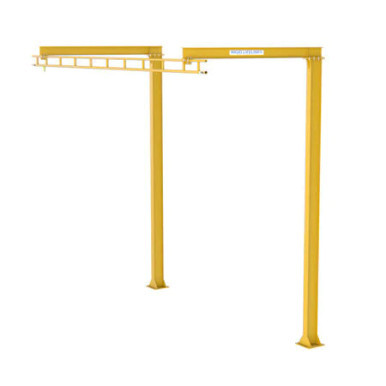

FAFS-2-12-23-520DST-20 Standard Inverted-L
Worker Capacity:
This system is designed for two users, allowing for passable operations. It's perfect for situations where multiple individuals need to work simultaneously, making it easier to collaborate and handle materials effectively.
Track Type:
Using a Trussed Dual Track setup, this system offers stability and support for heavy loads. With two tracks, it provides versatility in material handling tasks.
Track Length:
The track extends 23 feet, including 18-inch overhangs on both ends. It's just the right length for various industrial applications, offering enough space to maneuver materials without taking up too much space.
Support Centers:
Spaced 20 feet apart, the support centers ensure the track remains sturdy and balanced. This setup guarantees safe and reliable operations, even under significant loads.
Trolley-Hook Height:
At 22 feet, the trolley-hook height provides ample clearance for material handling equipment. It allows for smooth movement along the track, ensuring efficient workflows.
Arm Reach:
With a 12-foot arm reach, operators can easily access materials within their workspace. This feature enhances productivity by minimizing the need to reposition equipment frequently.
Number of Supports:
Supported by two sturdy columns, this system ensures stability and safety during operations. The supports are strategically placed to distribute weight evenly, preventing any strain on individual components.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, these trolleys offer precise control and enhanced safety during material transportation. The auto-brake system ensures smooth movement and reduces the risk of accidents.
Technology:
- Fixed End Stops: Each end of the track features two fixed end stops, providing reliable stopping points for trolleys. This feature enhances safety and prevents overruns.
- Overturning Moment: Engineered to withstand high overturning moments of up to 670,000, this system ensures stability and reliability in demanding environments.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, this system provides visibility and protection against corrosion. It's suitable for outdoor use, ensuring durability and longevity even in harsh conditions.
Weight:
Weighing 3,121 lbs, this system strikes a balance between strength and maneuverability. It's easy to install and maintain, making it ideal for various industrial settings.
Recommended Foundation:
A foundation measuring 7' x 7' x 4' is recommended to provide stable support for the system. This ensures optimal performance and longevity, minimizing the risk of structural issues.
Inclusions:
The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing a comprehensive solution for material handling needs. All necessary components are included for easy installation and seamless integration into existing infrastructure.
This system offers reliability, safety, and efficiency, making it an excellent choice for industrial environments requiring versatile and dependable material handling solutions.
FAFS-2-12-23-520DST-20 Standard Inverted-L Worker Capacity: 2-Users (Passable) Trussed Dual Track Track Length: 23'-0" Including 18" Overhangs on Both Ends Support Centers 20'-0" Trolley-Hook Height: 22'-0" Arm Reach: 12'-0" Number of Supports 2 Trolleys: Anchor Trolleys with Patented Auto-Brake Technology Fixed End Stops: Two at Each End Overturning Moment: 670,000 *Painted with Armorpoxy Safety Yellow for Outdoor Application* Weight: 3,121 lbs Recommended Foundation: 7' x 7' x 4' * System is complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys.
