Product Overview

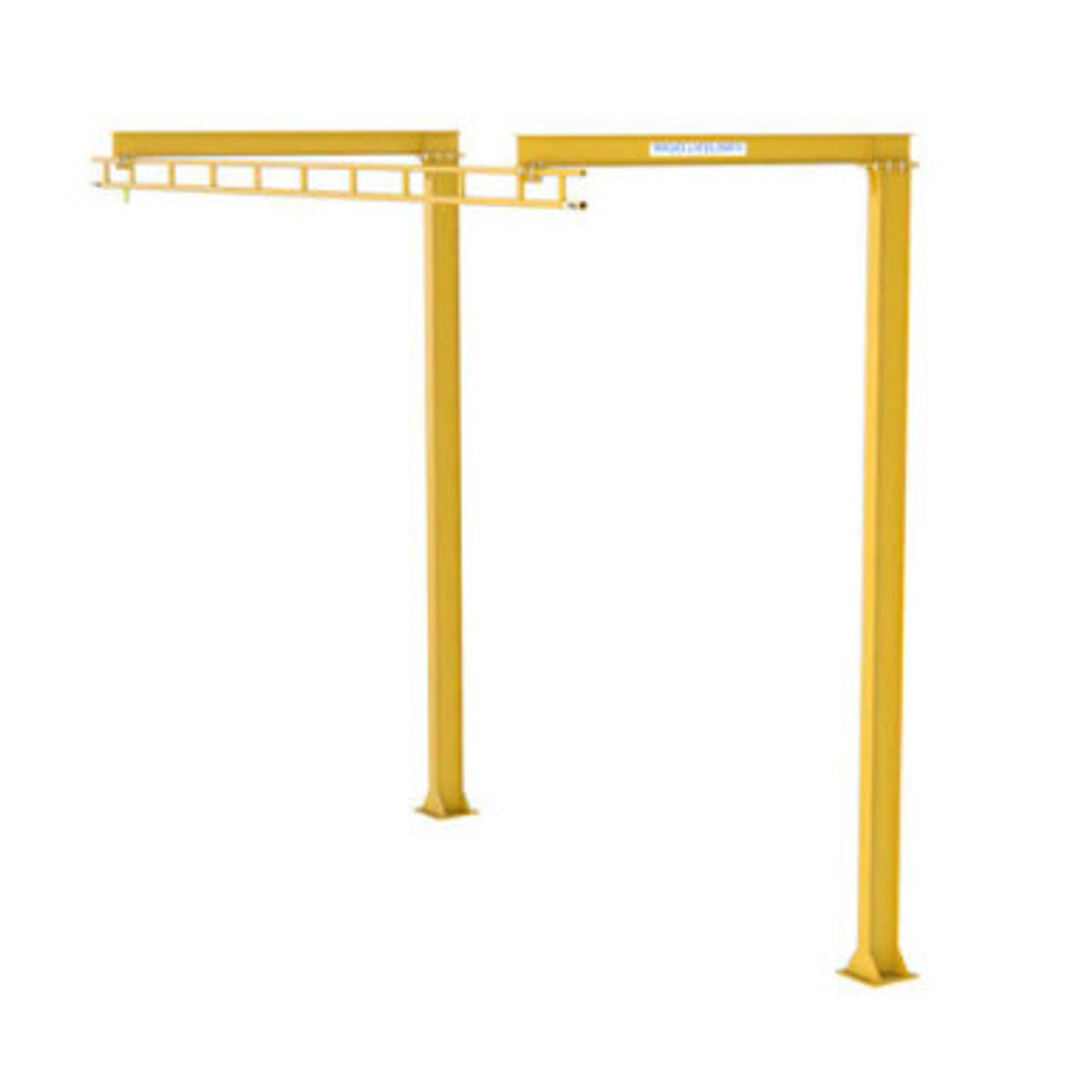

FAFS-2-10-23-520DST-20 Standard Inverted-L
Worker Capacity:
Designed to accommodate two users simultaneously, allowing for passable operations in industrial settings.
Track Type:
Utilizes a Trussed Dual Track configuration, enhancing stability and load-bearing capacity for efficient material transportation.
Track Length:
The track spans 23 feet, including 18-inch overhangs on both ends, providing ample space for maneuvering and material handling.
Support Centers:
Support centers are positioned every 20 feet along the track, ensuring uniform weight distribution and structural integrity.
Trolley-Hook Height:
With a trolley-hook height of 22 feet, the system allows for smooth and controlled movement along the track.
Arm Reach:
Featuring a 10-foot arm reach, operators can easily access materials within their workspace, promoting productivity and efficiency.
Number of Supports:
Supported by two robust columns, ensuring stability and structural integrity under varying loads and operating conditions.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, providing precise control and enhanced safety during material transportation.
Technology:
- Fixed End Stops: Incorporates two fixed end stops at each end of the track, preventing trolleys from traveling beyond safe limits, enhancing operational safety.
- Overturning Moment: Engineered to withstand high overturning moments of up to 610,000, ensuring stability and reliability in demanding environments.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, providing visibility and corrosion resistance for long-term durability.
Weight:
Weighing 3,020 lbs, the system offers a balance between strength and maneuverability, facilitating installation and maintenance procedures.
Recommended Foundation:
A foundation measuring 7' x 7' x 4' is recommended to ensure adequate support and stability for the system.
Inclusions:
The system is supplied with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a complete solution for elevated material transportation needs.
This system combines robust construction, advanced technology, and safety features, making it an ideal choice for industrial environments requiring efficient and reliable material handling solutions.

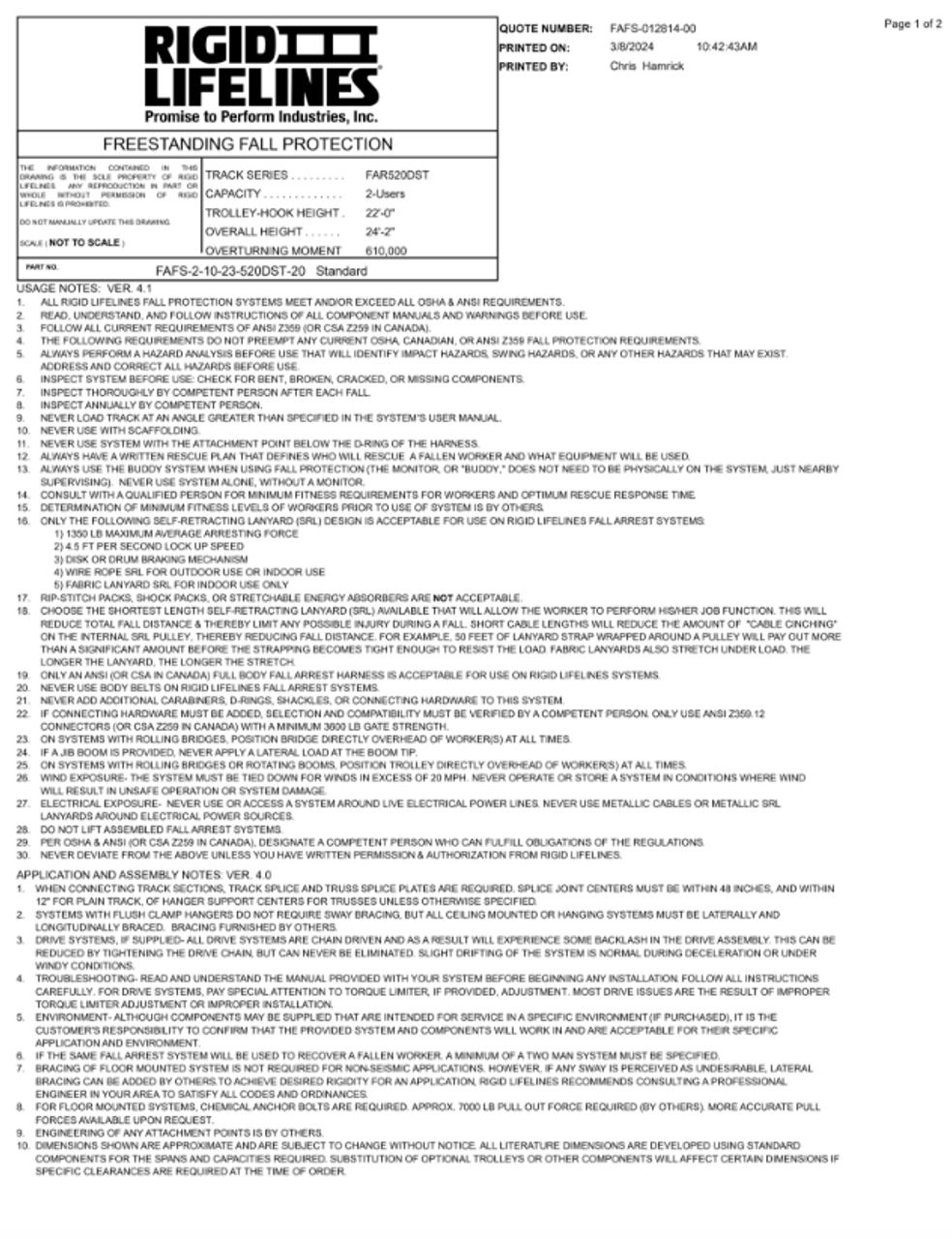

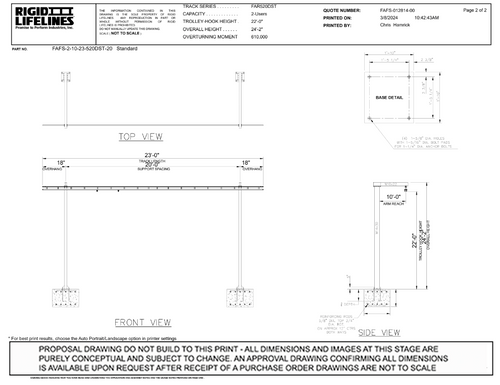

FAFS-2-10-23-520DST-20 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 10'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 610,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 3,020 lbs
Recommended
Foundation: 7' x 7' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
