Product Overview

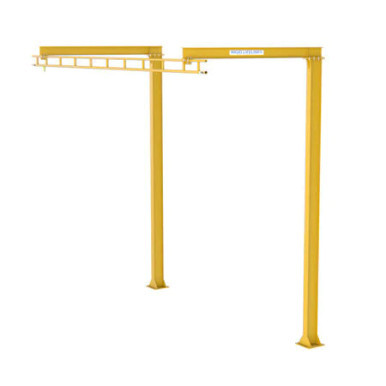

FAFS-2-08-43-520DST-20 Standard Inverted-L
Worker Capacity:
This system is meticulously engineered to accommodate up to two users simultaneously, facilitating passable operations within industrial environments with utmost efficiency and safety.
Track Type:
Featuring a sophisticated Trussed Dual Track configuration, the system offers unparalleled versatility and performance in material transportation applications, ensuring seamless workflow integration.
Track Length:
Spanning a length of 43 feet, inclusive of 18-inch overhangs on both ends, the track provides ample space for maneuvering and accessing materials, enhancing operational flexibility and productivity.
Support Centers:
Strategically positioned at 20-foot intervals along the track, the support centers ensure optimal weight distribution and stability throughout the operational cycle, enhancing overall system reliability.
Trolley-Hook Height:
At a height of 22 feet, the trolley-hook facilitates smooth and controlled movement along the track, enabling precise material handling operations and minimizing downtime.
Arm Reach:
With an arm reach of 8 feet, users can effortlessly access materials within their workspace, promoting operational efficiency and reducing strain on personnel.
Number of Supports:
Supported by three robust columns, the system ensures uncompromised structural integrity and stability, even under heavy loads and demanding operating conditions, ensuring long-term reliability and safety.
Trolleys:
Equipped with advanced Anchor Trolleys featuring Patented Auto-Brake technology, the system offers precise control and enhanced safety during material transportation activities, minimizing the risk of accidents and optimizing workflow efficiency.
Technology:
- Fixed End Stops: Incorporating two fixed end stops at each end of the track, the system effectively limits trolley travel, enhancing operational safety and preventing unintended overruns.
- Overturning Moment: Engineered to withstand high overturning moments of up to 540,000, the system delivers exceptional stability and reliability, even in the most demanding industrial environments, ensuring uninterrupted workflow continuity.
Coating:
Painted with high-quality Armorpoxy Safety Yellow for Outdoor Application, the system offers superior visibility and protection against corrosion, ensuring long-term durability and performance, even in harsh environmental conditions.
Weight:
With a weight of 4,525 lbs, the system strikes a perfect balance between robustness and manageability, facilitating ease of installation and maintenance procedures and ensuring long-term operational efficiency.
Recommended Foundation:
A foundation measuring 6' x 6' x 4' is recommended to provide robust support and stability for the system, ensuring optimal performance and longevity and minimizing the risk of structural issues.
Inclusions:
The system is delivered complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated transportation needs, and ensuring seamless integration into existing industrial infrastructure.
This meticulously crafted system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring advanced and dependable elevated transportation solutions. For further inquiries or to proceed with acquisition, please do not hesitate to contact us.
FAFS-2-08-43-520DST-20 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 8'-0"
Number of Supports 3
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 540,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 4,525 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
