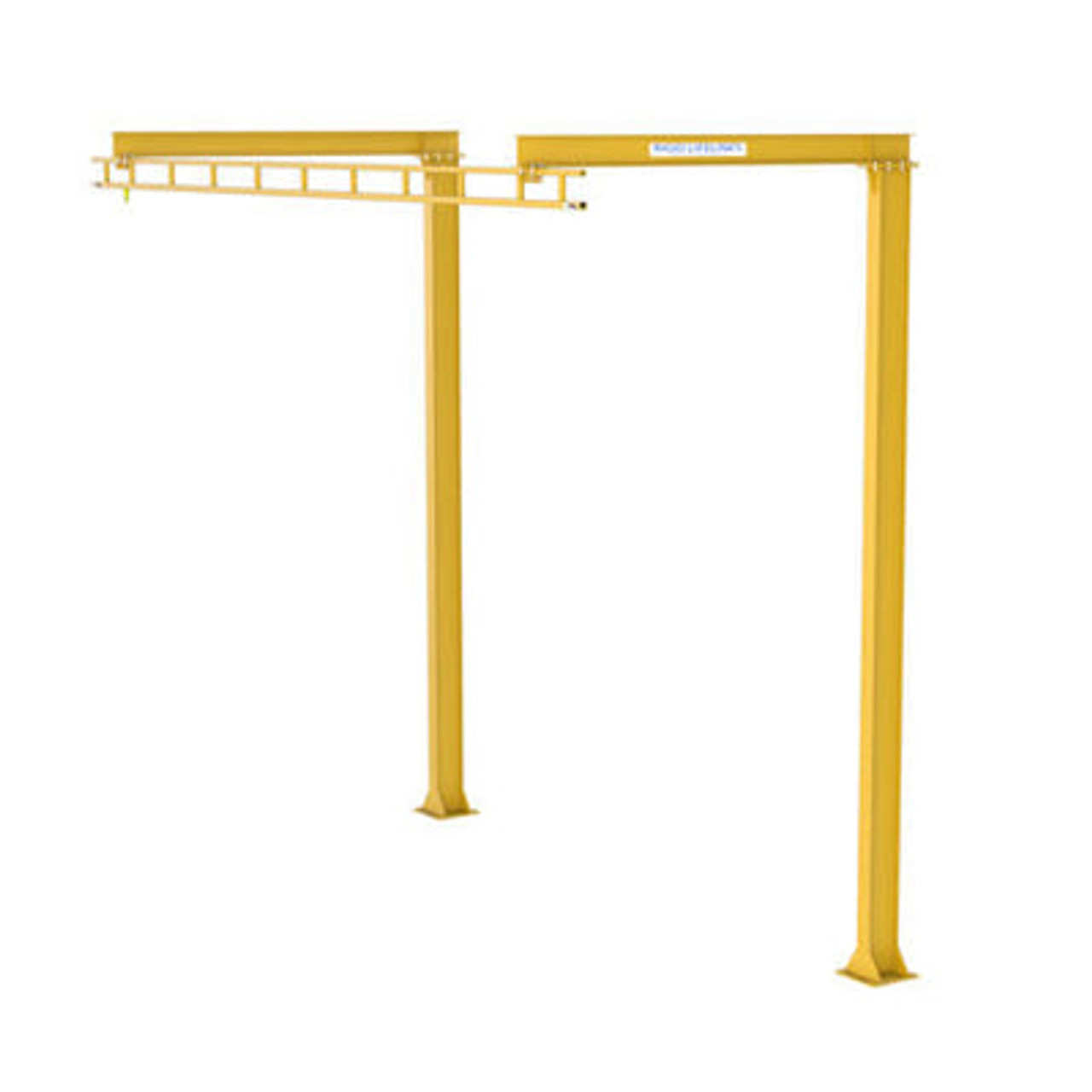

FAFS-2-12-33-520DST-30 Standard Inverted-L
Worker Capacity: 2-Users (Passable) This system is designed to accommodate two users simultaneously, making it suitable for applications where dual operation is required.
Trussed Dual Track The use of trussed dual track technology enhances the structural integrity of the system, providing additional strength and stability for the track structure.
Track Length: 33'-0" Including 18" Overhangs on Both Ends With a total track length of 33 feet, inclusive of 18-inch overhangs on both ends, the system offers flexibility and adaptability in material handling and positioning.
Support Centers: 30'-0" The support centers, spaced at 30 feet apart, contribute to the overall stability of the system, ensuring proper load distribution and minimizing sag.
Trolley-Hook Height: 22'-0" The trolley-hook height of 22 feet indicates the maximum vertical clearance or lifting capacity of the system, allowing for versatile material handling within this range.
Arm Reach: 12'-0" A 12-foot arm reach implies that the system can effectively cover a horizontal distance of 12 feet, providing flexibility in accessing various points within its operational radius.
Number of Supports: 2 The system is supported by two columns, distributing the load evenly and contributing to its stability during operation.
Trolleys: Anchor Trolleys with Patented Auto-Brake Technology Equipped with anchor trolleys featuring patented auto-brake technology, the system ensures precise control and enhanced safety during movement and positioning.
Fixed End Stops: Two at Each End The inclusion of fixed end stops at both ends enhances safety by preventing overtravel and ensuring controlled stops during operation.
Overturning Moment: 690,000 The specified overturning moment of 690,000 indicates the system's resistance to tipping or overturning, emphasizing its stability and robust design.
Painted with Armorpoxy Safety Yellow for Outdoor Application The safety yellow coating provides visibility and weather resistance, making the system suitable for outdoor use while prioritizing workplace safety.
Weight: 3,288 lbs The weight of 3,288 pounds indicates the mass of the system, crucial for calculating load capacities, foundation requirements, and overall structural stability.
Recommended Foundation: 7' x 7' x 4' The suggested foundation dimensions of 7 feet by 7 feet by 4 feet highlight the necessary footing for optimal stability and load distribution, ensuring the long-term performance of the entire structure.
Complete System The system is comprehensive, including monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing an all-in-one solution for material handling applications.
In summary, this technology style represents a well-engineered and versatile system tailored for dual-user operations, characterized by its stability, safety features, and adaptability to various working environments.
FAFS-2-12-33-520DST-30 Standard
Inverted-L
Worker Capacity: 2-Users (Passable) Trussed Dual Track
Track Length: 33'-0" Including 18" Overhangs on Both Ends
Support Centers 30'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 12'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake Technology
Fixed End Stops: Two at Each End
Overturning Moment: 690,000
Painted with Armorpoxy Safety Yellow for Outdoor Application
Weight: 3,288 lbs
Recommended
Foundation: 7' x 7' x 4'
* System is complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys.
