Product Overview
FAFS-2-08-33-520DST-30 Standard Inverted-L
Worker Capacity:
This meticulously engineered system is designed to accommodate up to two users simultaneously, allowing for seamless and efficient operations within industrial environments.
Track Type:
Featuring a sophisticated Trussed Dual Track design, the system offers unparalleled versatility and performance in material transportation applications.
Track Length:
The track extends to 33 feet, inclusive of 18-inch overhangs on both ends, providing ample space for maneuvering and accessing materials with ease and precision.
Support Centers:
Support centers are strategically positioned at 30-foot intervals along the track, ensuring optimal weight distribution and stability throughout the operational cycle.
Trolley-Hook Height:
At a height of 22 feet, the trolley-hook facilitates smooth and controlled movement along the track, enabling efficient material handling operations.
Arm Reach:
With an arm reach of 8 feet, users can effortlessly access materials within their workspace, enhancing productivity and operational efficiency.
Number of Supports:
Supported by two robust columns, the system ensures uncompromised structural integrity and stability, even under heavy loads and demanding operating conditions.
Trolleys:
Equipped with state-of-the-art Anchor Trolleys featuring Patented Auto-Brake technology, the system offers precise control and enhanced safety during material transportation activities.
Technology:
- Fixed End Stops: Incorporating two fixed end stops at each end of the track, the system effectively limits trolley travel, minimizing the risk of accidents and ensuring operator safety.
- Overturning Moment: Engineered to withstand high overturning moments of up to 560,000, the system delivers exceptional stability and reliability, even in the most challenging industrial environments.
Coating:
Coated with high-quality Armorpoxy Safety Yellow for Outdoor Application, the system offers superior visibility and protection against corrosion, ensuring long-term durability and performance.
Weight:
With a weight of 3,087 lbs, the system strikes a perfect balance between robustness and manageability, facilitating ease of installation and maintenance procedures.
Recommended Foundation:
A foundation measuring 6' x 6' x 4' is recommended to provide robust support and stability for the system, ensuring optimal performance and longevity.
Inclusions:
The system is delivered complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated transportation needs.
This meticulously crafted system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring advanced and dependable elevated transportation solutions. For further inquiries or to proceed with acquisition, please do not hesitate to contact us.

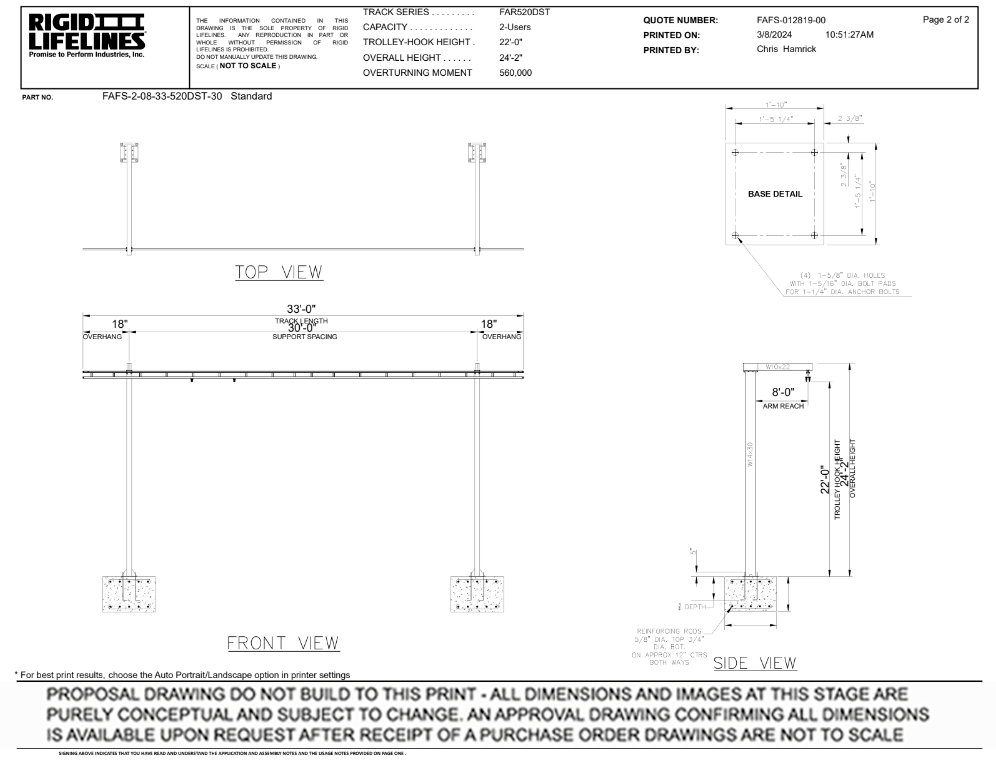

FAFS-2-08-33-520DST-30 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 33'-0" Including 18" Overhangs on Both Ends
Support Centers 30'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 8'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 560,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight:3,087 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
