Product Overview

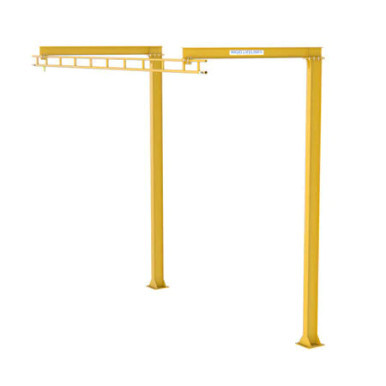

FAFS-1-08-33-530-30 Standard Inverted-L
Worker Capacity:
This system is designed to accommodate a single user, providing efficient material handling capabilities in industrial environments. It's intended for non-passable use, ensuring safety during operation.
Track Type:
Utilizing a Trussed Single Track configuration, this system offers a sturdy and reliable platform for material transportation tasks.
Track Length:
The track spans a length of 33 feet, including 18-inch overhangs on both ends. This length provides sufficient space for maneuvering and accessing materials, promoting smooth workflow operations.
Support Centers:
Support centers are positioned at 30-foot intervals along the track, ensuring uniform weight distribution and structural stability. This layout enhances the system's overall performance and reliability.
Trolley-Hook Height:
With a trolley-hook height of 22 feet, this system facilitates efficient material handling operations, allowing for precise positioning and movement of materials within the workspace.
Arm Reach:
Featuring an 8-foot arm reach, operators can easily access materials within their workspace, promoting productivity and minimizing operational downtime.
Number of Supports:
Supported by two robust columns, this system ensures stability and structural integrity, even under heavy loads. The supports are strategically placed to distribute weight evenly, minimizing stress on individual components.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, this system offers precise control and enhanced safety during material transportation. The auto-brake mechanism ensures smooth and controlled movement, reducing the risk of accidents.
Technology:
- Fixed End Stops: Incorporates one fixed end stop at each end of the track, providing reliable stopping points for trolleys. This enhances operational safety and prevents unintended overruns.
- Overturning Moment: Engineered to withstand high overturning moments of up to 470,000, ensuring stability and reliability during operation.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, this system offers visibility and corrosion resistance, ensuring durability and longevity in outdoor environments.
Weight:
With a weight of 3,054 lbs, this system is lightweight yet robust, facilitating ease of installation and maintenance.
Recommended Foundation:
A foundation measuring 6' x 6' x 4' is recommended to provide stable support for the system. This ensures optimal performance and longevity, minimizing the risk of structural issues.
Inclusions:
The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing a comprehensive solution for material handling needs. All necessary components are included for seamless integration into existing industrial infrastructure.
This meticulously engineered system embodies reliability, safety, and efficiency, making it an ideal choice for industrial environments requiring dependable material handling solutions.
