Product Overview

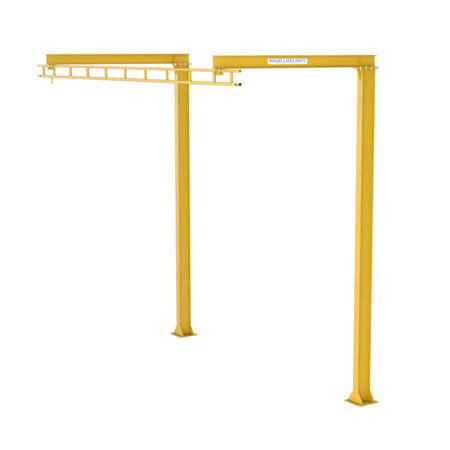

The FAFS-1-10-33-530-30 Standard Inverted-L system represents a professional-grade solution tailored for industrial material handling needs.
- Worker Capacity: Designed to accommodate one user at a time, emphasizing safety and efficiency in material handling operations. It's configured as non-passable, ensuring single-user operation.
- Track Configuration: Utilizes a trussed single track design, providing structural integrity and support for trolley movement. The track spans 33 feet in length, inclusive of 18-inch overhangs at both ends, offering ample coverage for material transport.
- Support Centers: Spaced at 30-foot intervals, the support centers contribute to the system's stability and robustness, ensuring smooth operation under varying load conditions.
- Trolley-Hook Height: Set at 22 feet, the trolley-hook height facilitates lifting and transporting materials within the specified height range, optimizing usability and versatility.
- Arm Reach: With an arm reach of 10 feet, the system enables efficient material handling within a defined radius, enhancing productivity in industrial settings.
- Number of Supports: Requires two support structures to uphold the track and ensure stability during operation, contributing to the system's reliability and safety.
- Trolleys: Equipped with anchor trolleys featuring patented auto-brake technology, enhancing control and safety during material transport along the track.
- Fixed End Stops: Incorporates fixed end stops at each end of the track, preventing trolleys from exceeding designated endpoints, thereby enhancing operational safety.
- Overturning Moment: Engineered to withstand an overturning moment of 530,000 units, the system ensures stability and safety under varying load conditions.
- Paint: Coated with Armorpoxy Safety Yellow paint, the system is suitable for outdoor applications, providing durability and enhanced visibility in industrial environments.
- Weight: The total weight of the system is 3,155 pounds, a consideration for installation and support structure design to ensure proper load-bearing capacity.
- Recommended Foundation: A foundation capable of supporting the weight of the system is recommended for installation, ensuring stability and longevity of the equipment.
- Complete System: The system includes all necessary components, such as the monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for industrial material handling requirements.
FAFS-1-10-33-530-30 Standard Inverted-L Item Model / Description / Details Qty Unit List Price Extended Price Worker Capacity: 1-User (Non-Passable) Trussed Single Track Track Length: 33'-0" Including 18" Overhangs on Both Ends Support Centers 30'-0" Trolley-Hook Height: 22'-0" Arm Reach: 10'-0" Number of Supports 2 Trolleys: Anchor Trolleys with Patented Auto-Brake Technology Fixed End Stops: One at Each End Overturning Moment: 530,000 *Painted with Armorpoxy Safety Yellow for Outdoor Application* Weight: 3,155 lbs Recommended Foundation: 3,155 lbs * System is complete with monorail track, hangers, freestanding cantilevered support columns and trolleys.
