Product Overview

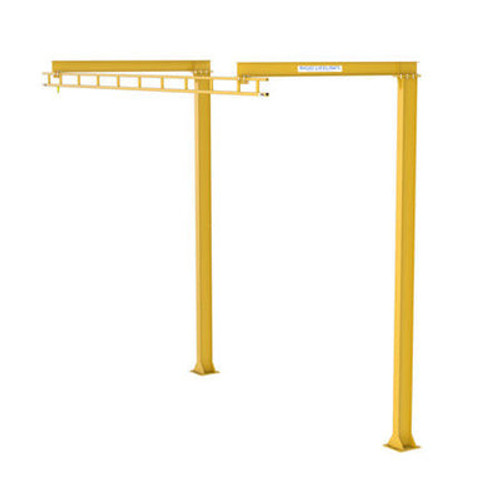

FAFS-1-12-33-530-30 Standard Inverted-L
Item Model / Description / Details:
- Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Track Specifications:
- Track Length: Customizable to meet specific requirements
- Support Centers: Strategically positioned to ensure optimal stability and load distribution
Dimensions:
- Trolley-Hook Height: 33'-0" (Including 18" Overhangs on Both Ends)
- Arm Reach: Provides a generous reach of 30'-0", allowing for efficient maneuverability
- Arm Reach Variations: Also includes arm reach options of 12'-0" and 22'-0" for versatile functionality
Support System:
- Number of Supports: 2 sturdy supports for structural integrity
- Trolleys: Equipped with Anchor Trolleys featuring Patented Auto-Brake technology for precise control and safety during movement
Technological Features:
- Fixed End Stops: Incorporates fixed end stops at each end of the track to ensure safe travel limits
- Overturning Moment: Engineered to withstand significant overturning moments, providing stability in demanding conditions
Weight and Foundation:
- Weight: 3,256 lbs, balancing durability with manageability for installation and maintenance
- Recommended Foundation: Designed for a foundation capable of supporting up to 590,000 pounds, ensuring long-term stability and safety
Coating:
- Coated with Armorpoxy Safety Yellow for Outdoor Application, enhancing visibility and offering protection against environmental elements
Dimensions and Pricing:
- Dimensions: Occupies a space of 7' x 7' x 4'
- Unit List Price: $14,162.00
- Extended Price: $14,162.00
Inclusions:
- The system is complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing a comprehensive solution for elevated transportation needs.
This meticulously crafted system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring elevated transportation solutions. For further inquiries or to proceed with procurement, please do not hesitate to contact us.

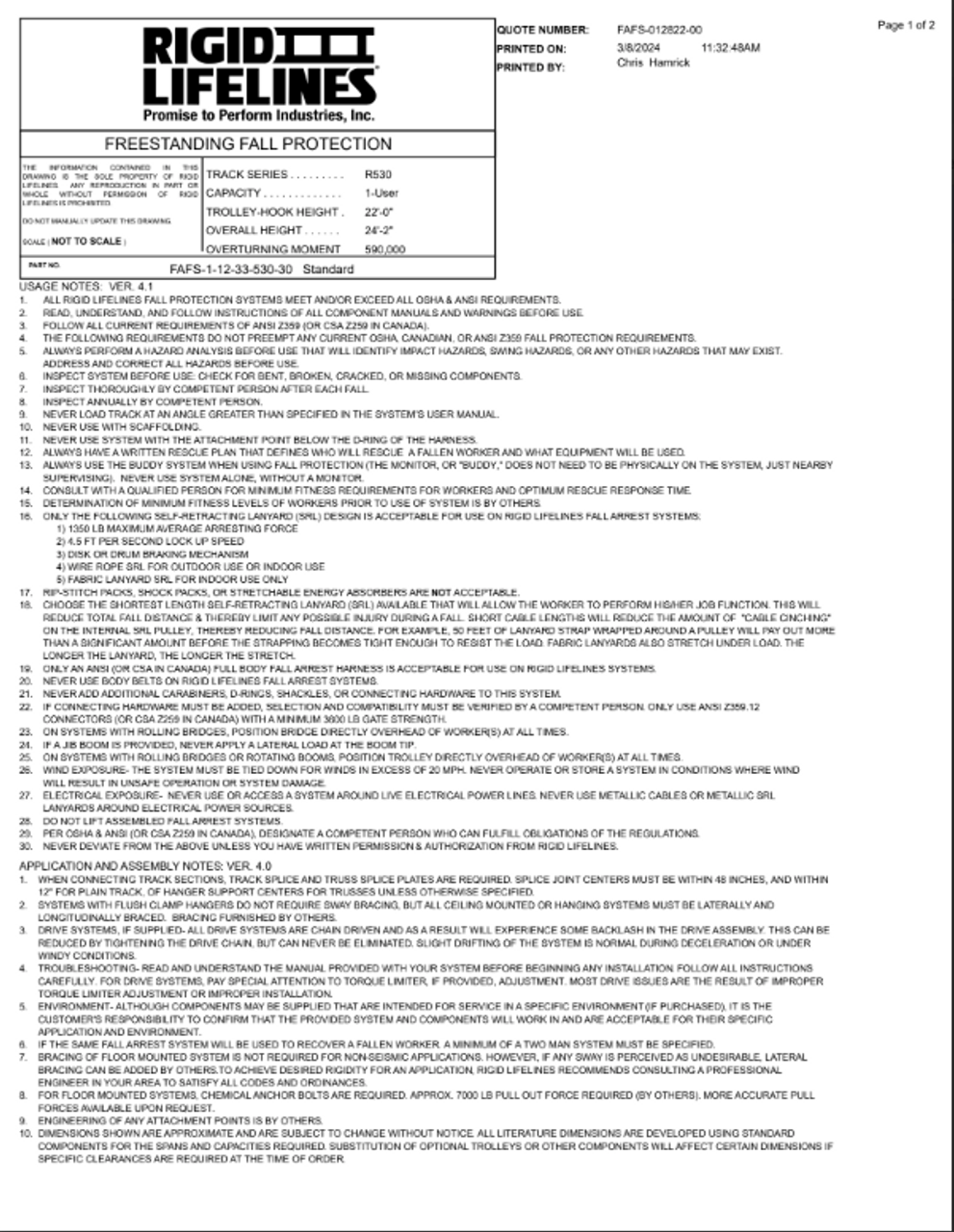

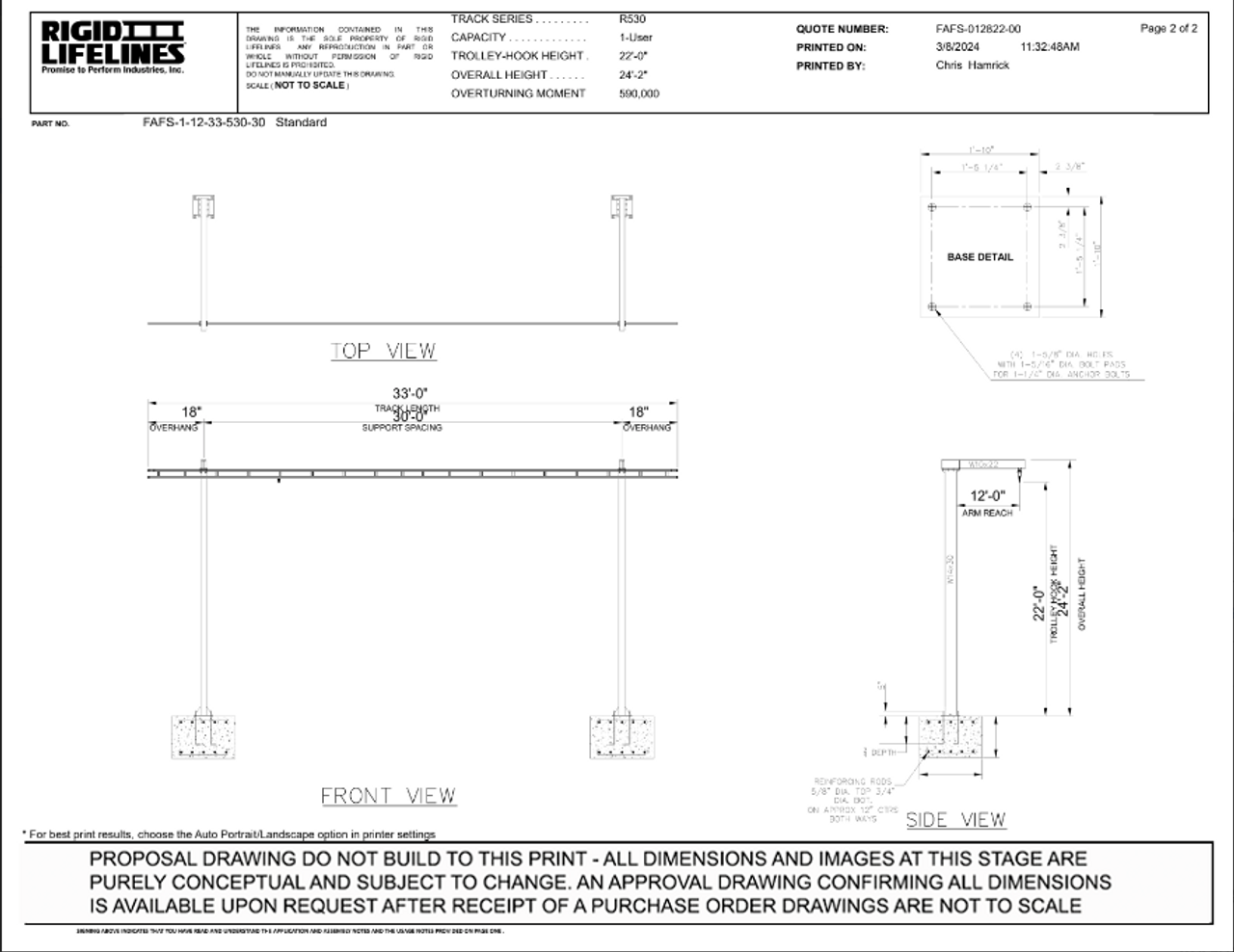

FAFS-1-12-33-530-30 Standard
Inverted-L
Item Model / Description / Details Qty Unit List Price Extended Price
Worker Capacity: 1-User (Non-Passable)
Trussed Single Track
Track Length: 33'-0" Including 18" Overhangs on Both Ends
Support Centers 30'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 12'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 590,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 3,256 lbs
Recommended
Foundation: 7' x 7' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
