Product Overview

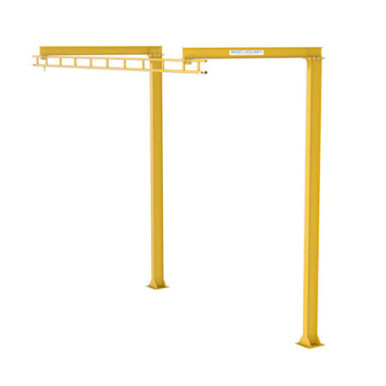

FAFS-2-10-33-520DST-30 Standard Inverted-L
Worker Capacity:
This system is engineered to facilitate the passage of two users simultaneously, making it suitable for various industrial applications requiring efficient material handling.
Track Type:
Utilizing a Trussed Dual Track design, this system offers enhanced stability and load-bearing capacity for seamless material transportation.
Track Length:
With a total length of 33 feet, including 18-inch overhangs on both ends, this track provides ample space for maneuvering and accessing materials with ease.
Support Centers:
Support centers are strategically positioned at 30-foot intervals along the track, ensuring uniform weight distribution and structural integrity under load.
Trolley-Hook Height:
At a height of 22 feet, the trolley-hook allows for smooth and controlled movement along the track, facilitating efficient material handling operations.
Arm Reach:
Featuring a generous 10-foot arm reach, operators can easily access materials within their workspace, promoting productivity and minimizing downtime.
Number of Supports:
Supported by two robust columns, this system ensures stability and structural integrity, even under heavy loads and demanding operating conditions.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, providing precise control and enhanced safety during material transportation activities.
Technology:
- Fixed End Stops: Incorporates two fixed end stops at each end of the track, preventing trolleys from traveling beyond safe limits and enhancing operational safety.
- Overturning Moment: Engineered to withstand high overturning moments of up to 620,000, ensuring stability and reliability in challenging industrial environments.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, providing visibility and corrosion resistance for long-term durability and safety.
Weight:
Weighing 3,188 lbs, this system strikes a balance between strength and maneuverability, facilitating installation and maintenance procedures.
Recommended Foundation:
A foundation measuring 7' x 7' x 4' is recommended to ensure adequate support and stability for the system, enhancing overall performance and longevity.
Inclusions:
The system comes complete with monorail tracks, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated material transportation needs.
This system combines advanced technology, robust construction, and safety features, making it an ideal choice for industrial environments requiring efficient and reliable material handling solutions.
FAFS-2-10-33-520DST-30 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 33'-0" Including 18" Overhangs on Both Ends
Support Centers 30'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 10'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 620,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 3,188 lbs
Recommended
Foundation: 7' x 7' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
