Product Overview

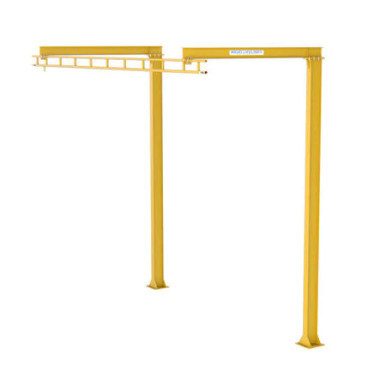

Formal Expansion: FAFS-2-08-23-520DST-20 Standard Inverted-L
Worker Capacity:
This system is engineered to accommodate up to two users simultaneously, allowing for passable operations within industrial environments.
Track Type:
Featuring a Trussed Dual Track design, the system offers enhanced efficiency and versatility in material transportation.
Track Length:
The track spans 23 feet, inclusive of 18-inch overhangs on both ends, providing ample space for maneuvering and accessing materials.
Support Centers:
Support centers are strategically placed at 20-foot intervals along the track, ensuring uniform weight distribution and maximizing stability during operation.
Trolley-Hook Height:
At a height of 22 feet, the trolley-hook allows for smooth and efficient movement along the track, facilitating seamless material handling.
Arm Reach:
With an arm reach of 8 feet, users can easily access materials within their workspace without the need for additional equipment, enhancing productivity.
Number of Supports:
Supported by two robust columns, the system ensures structural integrity and stability, even under heavy loads.
Trolleys:
Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, the system ensures precise control and safe movement along the track, minimizing the risk of accidents.
Technology:
- Fixed End Stops: Equipped with two fixed end stops at each end of the track, preventing the trolleys from traveling beyond safe limits and enhancing operational safety.
- Overturning Moment: Engineered to withstand overturning moments of up to 540,000, the system provides superior stability and reliability in demanding industrial environments.
Coating:
Painted with Armorpoxy Safety Yellow for Outdoor Application, the system offers enhanced visibility and protection against corrosion and environmental factors, ensuring longevity and durability.
Weight:
Weighing 2,919 lbs, the system strikes a balance between durability and manageability, facilitating ease of installation and maintenance.
Recommended Foundation:
A foundation measuring 6' x 6' x 4' is recommended to provide adequate support and stability for the system.
Price:
The system is priced at $10,955.18, offering exceptional value for its quality, durability, and advanced features.
Inclusions:
The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, providing a comprehensive solution for elevated transportation needs.
This meticulously designed system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring elevated transportation solutions. If you have any further inquiries or wish to proceed with the acquisition, please do not hesitate to contact us.
FAFS-2-08-23-520DST-20 Standard
Inverted-L
Worker Capacity: 2-Users (Passable)
Trussed Dual Track
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 8'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: Two at Each End
Overturning Moment: 540,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 2,919 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
