Product Overview

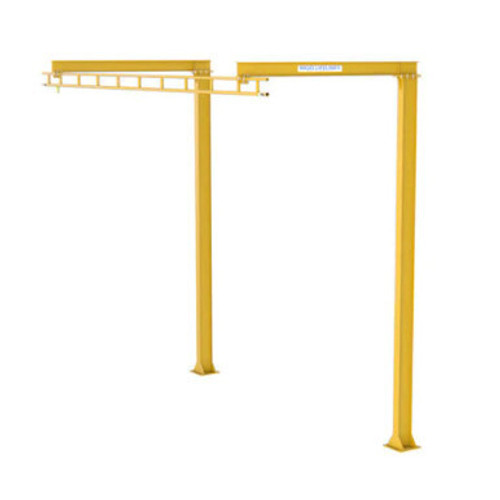

FAFS-1-12-43-520-20 Standard Inverted-L
Worker Capacity: Designed for 1-User (Non-Passable) operation on a Trussed Single Track.
Track Length: Extending to 43'-0" with 18" Overhangs on Both Ends, this track ensures comprehensive coverage and accessibility.
Support Centers: Strategically spaced at 20'-0" intervals, guaranteeing stability and load distribution along the track.
Trolley-Hook Height: Tower at a height of 22'-0", including clearance for the trolley and load.
Arm Reach: With an extended reach of 12'-0", users can access materials efficiently within their workspace.
Number of Supports: Supported by 3 robust columns, ensuring structural integrity and safety during operation.
Trolleys: Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, allowing for controlled movement along the track.
Technology: Fixed End Stops are positioned at each end to limit travel and ensure safe operation.
Overturning Moment: Engineered to withstand overturning moments up to 560,000, providing stability in challenging conditions.
Coating: Painted with Armorpoxy Safety Yellow for Outdoor Application, ensuring visibility and protection against environmental elements.
Weight: With a weight of 4,618 lbs, this system offers durability while remaining manageable for installation and maintenance.
Recommended Foundation: Requires a foundation measuring 6' x 6' x 4' to support the system effectively.
Pricing: Available at $20,199.00, providing excellent value for its quality and functionality.
Inclusions: The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated transportation needs.
This meticulously designed system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring elevated transportation solutions. For further inquiries or to proceed with procurement, please do not hesitate to contact us.

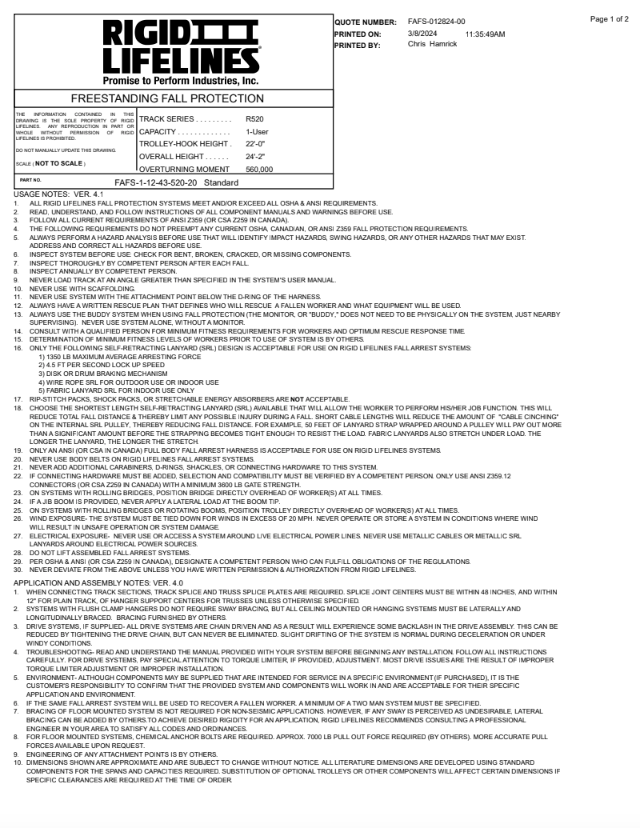

FAFS-1-12-43-520-20 Standard
Inverted-L
Worker Capacity: 1-User (Non-Passable)
Trussed Single Track
Track Length: 43'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 12'-0"
Number of Supports 3
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 560,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 4,618 lbs
Recommended
Foundation: 6' x 6' x 4
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
