Product Overview

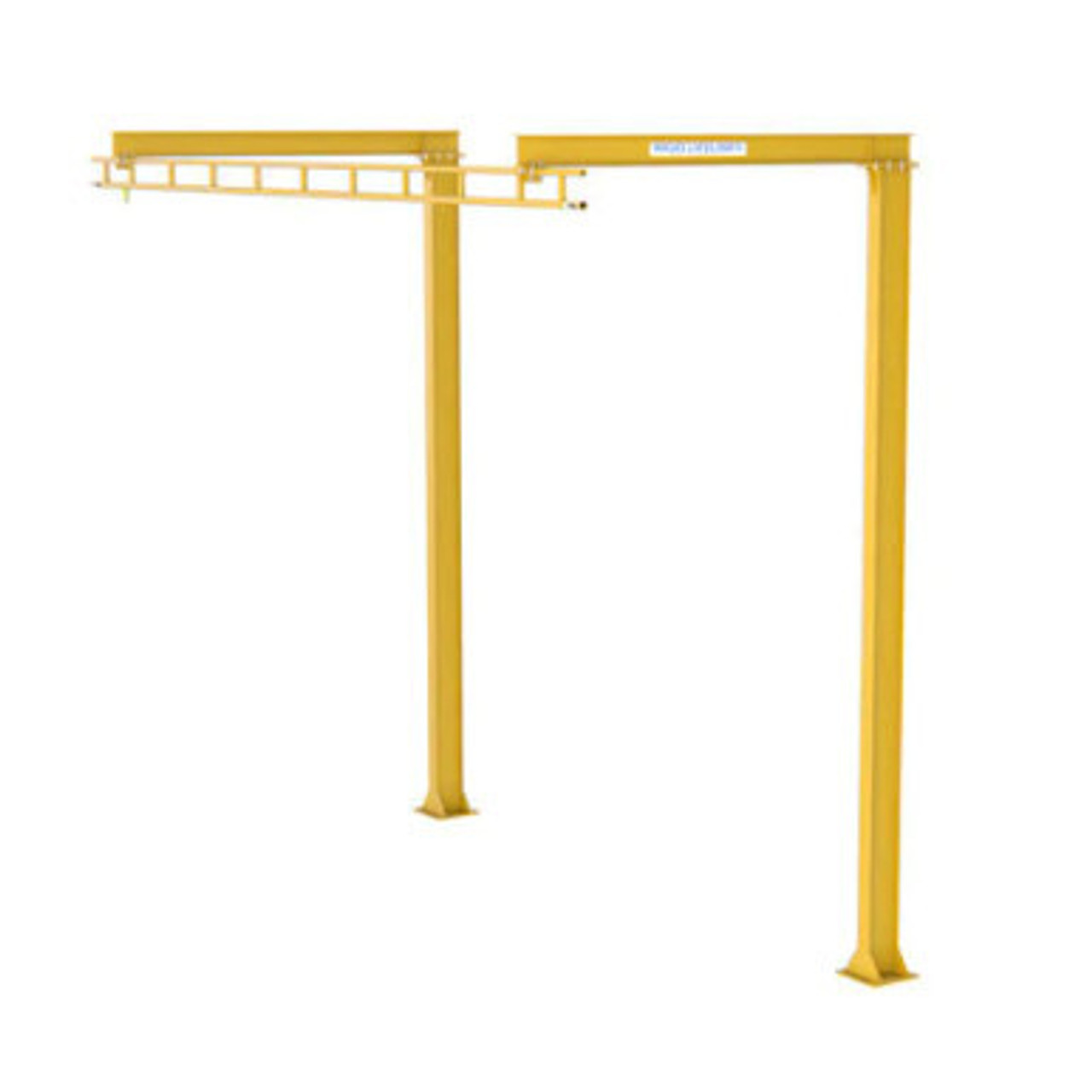

The Inverted-L Anchor Track System 1-Person is a pinnacle of engineering designed to optimize material handling in industrial environments, providing a robust solution for enhanced productivity and safety.
This system is precisely crafted to accommodate up to two users simultaneously, facilitating seamless operations and ensuring a smooth workflow within your facility. The sophisticated Trussed Dual Track design enhances versatility, making it ideal for various material transportation applications.
- Worker Capacity: Supports up to two users efficiently and safely.

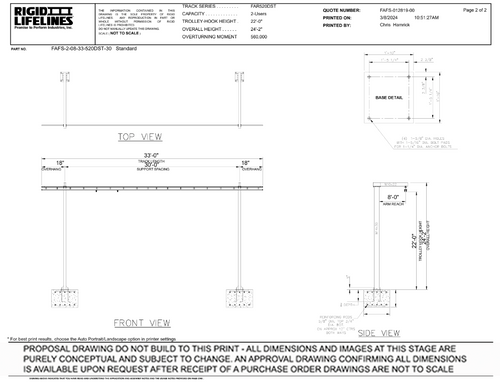

- Track Length: Extends to 33 feet, including generous 18-inch overhangs on either side, ensuring easy maneuverability and material access.
- Support Centers: Strategically positioned at 30-foot intervals for optimal weight distribution and stability.
- Trolley-Hook Height: Elevated design at 22 feet enables controlled and efficient material handling.
- Arm Reach: A generous 8-foot arm reach allows users to access materials swiftly, enhancing operational efficiency.
- Number of Supports: Two sturdy columns provide unwavering structural integrity under demanding loads.
- Trolleys: State-of-the-art Anchor Trolleys come equipped with Patented Auto-Brake technology for enhanced safety and precision during material transport.
- Fixed End Stops: Two fixed end stops at each end of the track effectively limit trolley travel, mitigating accident risk.
- Overturning Moment: Built to endure high overturning moments of up to 560,000, ensuring reliability in tough industrial conditions.
- Coating: Finished with Armorpoxy Safety Yellow, this coating not only augments visibility but also provides corrosion protection for long-lasting durability.
- Weight: Weighing in at 3,087 lbs, this system amalgamates robustness with manageability for straightforward installation and maintenance.
- Recommended Foundation: A foundation size of 6' x 6' x 4' is advised to support the system effectively, ensuring optimal stability and longevity.
- Inclusions: The system is delivered complete with essential components, including monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for your elevated transportation needs.
This meticulously crafted Inverted-L Anchor Track System not only emphasizes reliability and safety but also enhances overall operational efficiency, making it the ideal choice for industrial settings requiring advanced and dependable transportation solutions. For further inquiries or to proceed with acquisition, please do not hesitate to contact us.
