Product Overview

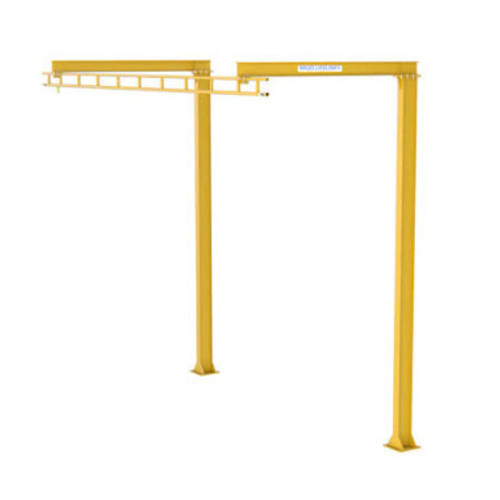

The Inverted-L Anchor Track System FAFS-1-08-43-520-20 redefines safety and efficiency in industrial operations. Engineered for optimal performance, this system provides robust structural support and stability, making it essential for any workspace requiring precise elevated transportation.
This system is tailored for one operator at a time, which maximizes safety without compromising tactical maneuverability. The 43-foot track length, featuring 18-inch overhangs on either end, allows for increased workspace and seamless access to various materials, streamlining your industrial processes.
- Worker Capacity: Supports one user at a time, prioritizing safety.
- Track Type: Trussed Single Track configuration for enhanced stability.

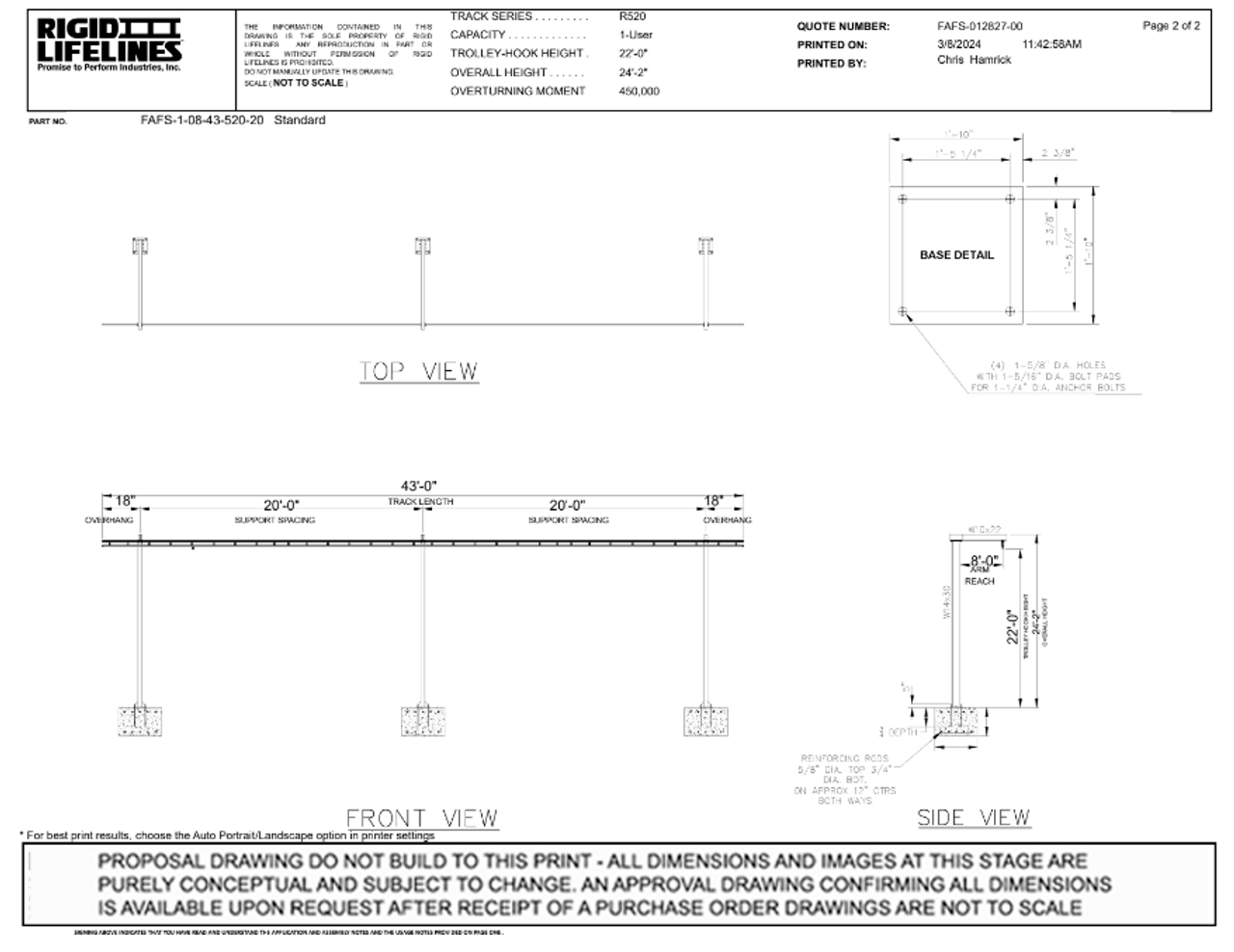

- Track Length: Total length of 43 feet with 18-inch overhangs.
- Support Centers: Every 20 feet to evenly distribute weight and improve stability.
- Trolley-Hook Height: Positioned at 22 feet for adequate clearance.
- Arm Reach: 8 feet reach enables easy material handling.
- Number of Supports: Three sturdy columns ensure structural integrity.
- Trolleys: Anchor Trolleys with Patented Auto-Brake technology for safe movements.
- Fixed End Stops: Located at both ends to prevent trolley travel beyond safe limits.
- Overturning Moment: Engineered for stability under overturning moments up to 450,000.
- Coating: Armorpoxy Safety Yellow finish enhances visibility and protection.
- Weight: Weighs 4,316 lbs for manageable installation and maintenance.
- Recommended Foundation: 6' x 6' x 4' foundation for stability.
- Comprehensive Inclusion: Comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys.
This meticulously designed system embodies a blend of reliability and advanced technology, making it the ideal solution for industries that demand elevated transportation capabilities. The Inverted-L Anchor Track System combines high standards of safety and performance, truly representing an investment in your operational efficiency. For further inquiries or to proceed with acquisition, feel free to reach out for personalized assistance.
