Product Overview

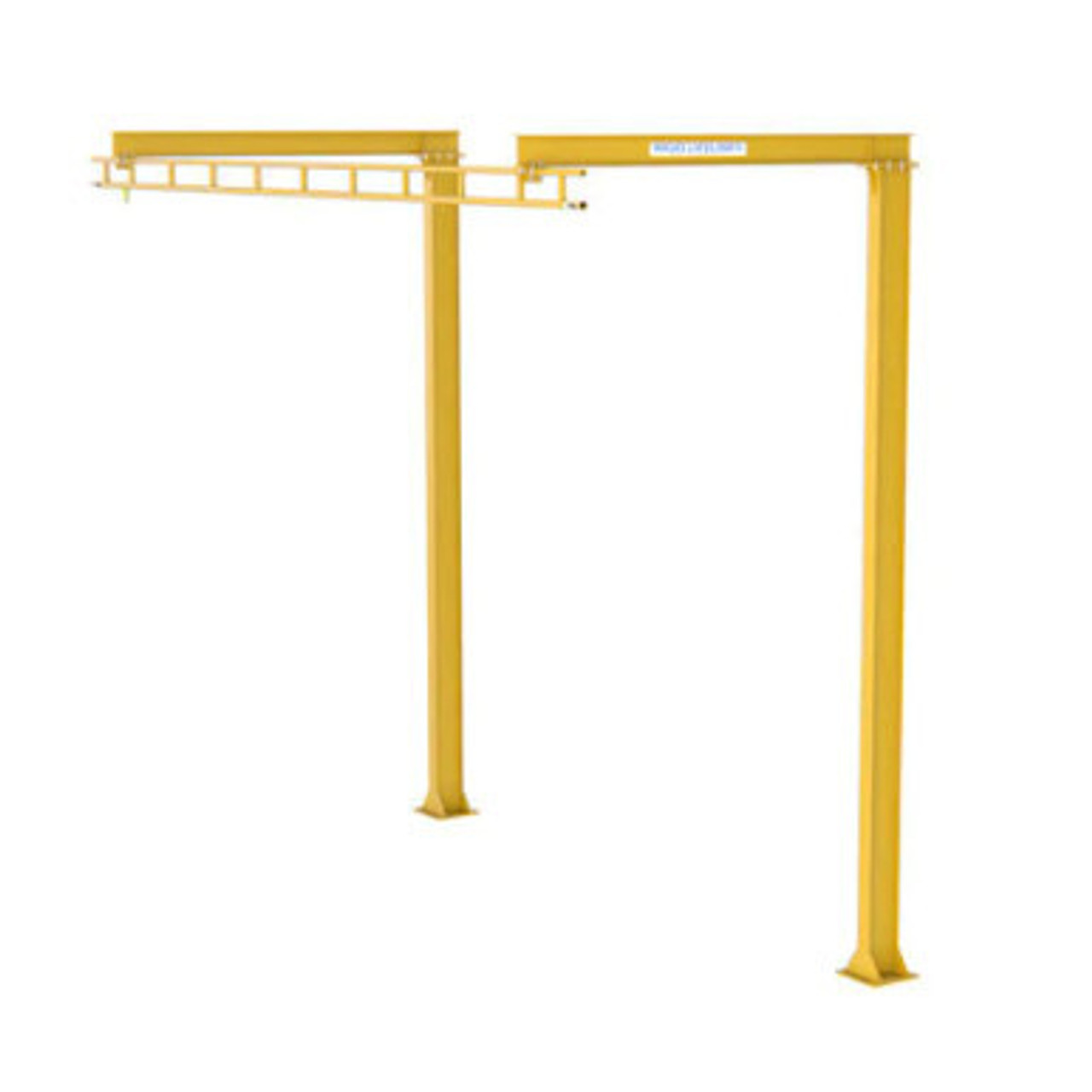

The Inverted-L Anchor Track System combines innovative engineering with robust design to create an unparalleled solution for elevated material handling in industrial environments. Capable of supporting up to two users simultaneously, this system is designed to enhance productivity and streamline operations.
With a Trussed Dual Track design stretching 23 feet and featuring 18-inch overhangs on both ends, the system provides ample space for efficient maneuvering and access to materials. Its support centers are strategically positioned at 20-foot intervals, ensuring uniform weight distribution, maximizing stability, and facilitating safer operations.
- Supports up to two users simultaneously, enhancing operational efficiency.
- 23-foot track length with dual 18-inch overhangs for flexibility in movement.
- Support centers positioned at 20-foot intervals for optimal stability.
- 22-foot trolley-hook height for smooth movement and accessibility.
- 8-foot arm reach, allowing users to easily access materials without additional equipment.
- Constructed with two sturdy support columns to ensure structural integrity.
- Equipped with Anchor Trolleys featuring patented Auto-Brake technology for enhanced safety.
- Includes fixed end stops at each end, providing additional operational safeguards.
- Engineered to withstand overturning moments up to 540,000 for superior reliability.
- Painted with Armorpoxy Safety Yellow providing visibility and corrosion resistance for outdoor applications.
- Weighs 2,919 lbs, balancing durability with manageability for easier installation.
- Recommended foundation size of 6' x 6' x 4' for optimal support and stability.
The Inverted-L Anchor Track System is meticulously crafted to embody the highest standards of safety, reliability, and operational efficiency. It includes everything needed for installation, including the monorail track, hangers, freestanding cantilevered support columns, and trolleys, making it a comprehensive solution for all your elevated transportation needs. Priced at $10,955.18, it offers exceptional value for its quality and advanced features. For further inquiries or to begin the acquisition process, please feel free to reach out to us.
