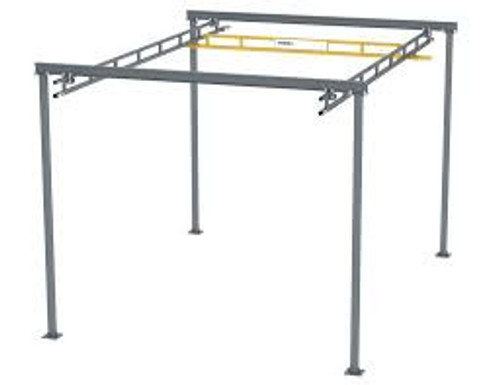

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 250 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-63-400-FAST-12 SPANCO

Product Overview

• Bridge Capacity: The bridge is designed to support loads of up to 250 lbs, ensuring reliable transportation of materials across the system.

• Bridge Length: With a length of 10 feet, the bridge provides a sturdy platform for material movement within the operational area.

• Bridge Span: The bridge spans 8 feet from one runway to the other, facilitating efficient material transfer between the runways.

• Runway Capacity: Each runway is capable of supporting loads of up to 500 lbs, providing stability and safety during material handling operations.

• Runway Length: The runways extend to a length of 63 feet, including 18-inch cantilevers on both ends, allowing for ample space for material handling activities.

• Number of Bays: The system features three bays, each strategically positioned at a support center of 20 feet.

• Support Kit: Included in the system are 8 columns and 4 headers, offering robust support and stability for the entire structure.

• Trolley Clevis Height: The trolley clevis is set at a height of 12 feet, ensuring smooth movement along the runways and efficient material transfer.

• Overall System Height: With an overall height of 13 feet 6 inches, the system provides sufficient vertical clearance for material handling operations.

• Overall Width: The system has an overall width of 10 feet 10 inches, optimizing space utilization within the operational area.

• Bridge Festoon Type: Utilizing flat cable festoons, the bridge ensures reliable power and signal transmission for uninterrupted operation.

• Runway Festoon Type: Similarly, the runways are equipped with flat cable festoons, ensuring consistent performance in demanding conditions.

• Runway Color: The runways are coated in industrial enamel gray, providing a durable and visually appealing finish.

• Bridge Color: The bridge is finished in industrial enamel yellow, enhancing visibility and safety within the system.

• Support Kit Color: The support kit components are coated in industrial enamel gray, ensuring a uniform and professional appearance.

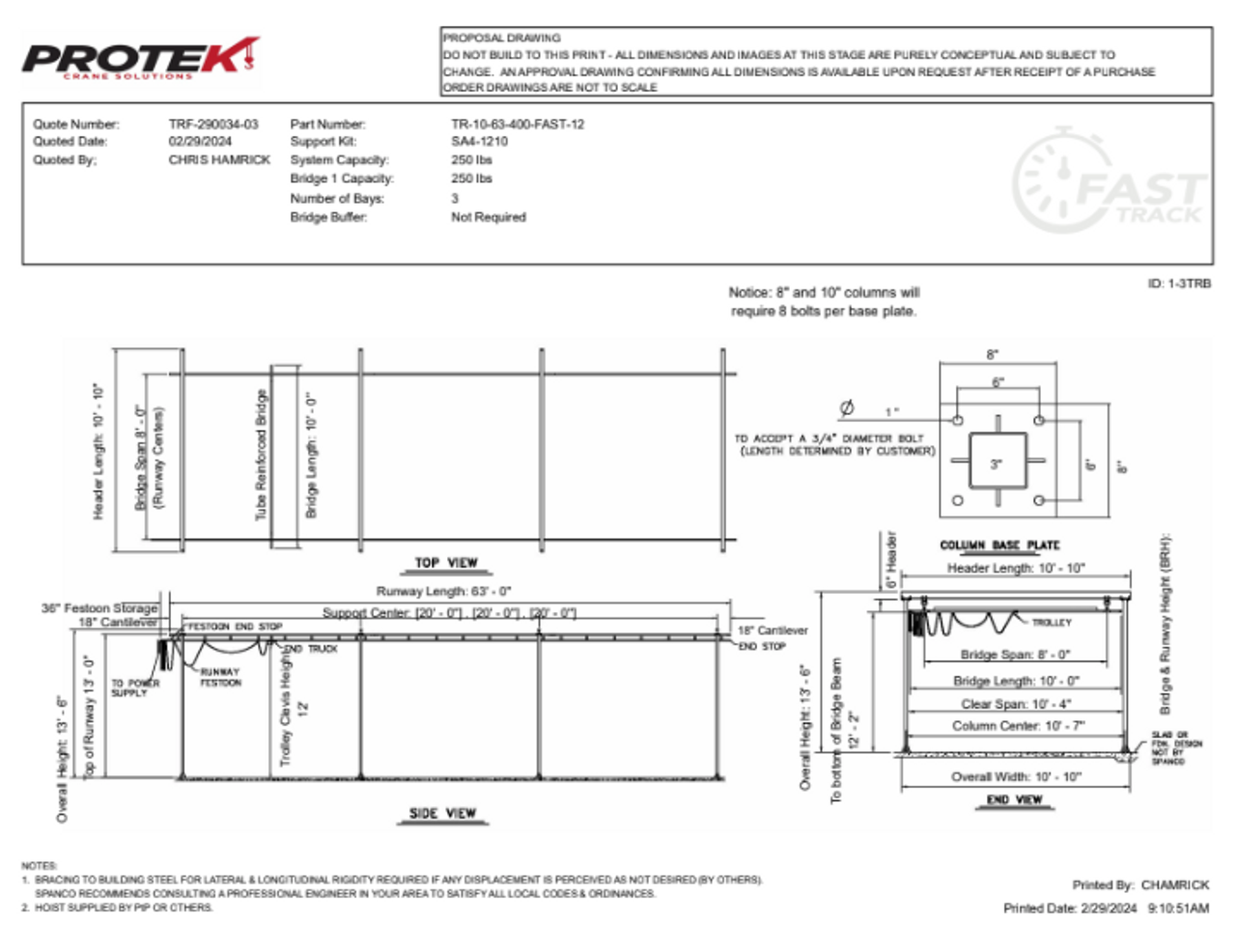

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 250 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 500 lbs

Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 3

Support Center: [20' - 0''], [20' - 0''], [20' - 0'']

Support Kit: Included (8) columns and (4) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 6''

Overall Width: 10' - 10''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
