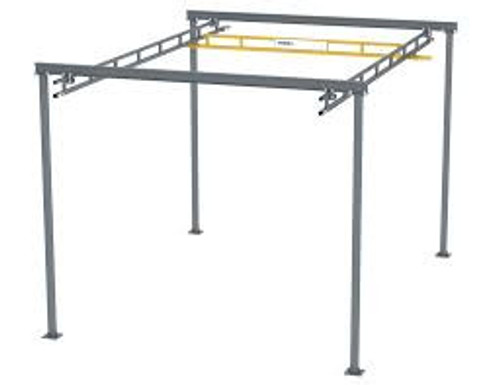

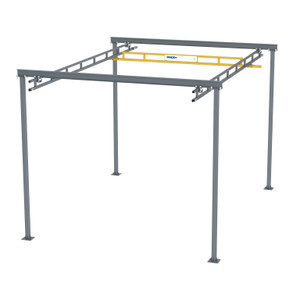

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 250 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-43-400-FAST-12 SPANCO

Product Overview

• Bridge Capacity: The bridge is designed to hold up to 250 lbs, offering a reliable solution for transporting moderate loads.

• Bridge Length: Measuring 10 feet in length, the bridge provides ample space for moving materials across the operational area.

• Bridge Span: With an 8-foot span from one runway to the other, the bridge ensures smooth and efficient material transport.

• Runway Capacity: Each runway can support up to 1000 lbs, providing sturdy support for heavier loads.

• Runway Length: The runways extend to 43 feet, featuring 18-inch cantilevers on both ends for added flexibility in loading and unloading materials.

• Number of Bays: This system is equipped with two bays, each positioned conveniently at a support center of 20 feet.

• Support Kit: Included in the setup are 6 columns and 3 headers, providing robust support and stability for the entire system.

• Trolley Clevis Height: The trolley clevis is set at a height of 12 feet, facilitating smooth movement along the runways.

• Overall System Height: Standing at 13 feet 6 inches tall, the system offers sufficient vertical clearance for material handling operations.

• Overall Width: With a width of 10 feet 10 inches, the system strikes a balance between space efficiency and functionality.

• Bridge Festoon Type: Utilizing flat cable festoons, the bridge ensures reliable power and signal transmission for uninterrupted operation.

• Runway Festoon Type: Similarly, the runways are equipped with flat cable festoons, ensuring consistent performance even in demanding conditions.

• Runway Color: The runways are coated in industrial enamel gray, providing a neutral and durable finish.

• Bridge Color: The bridge is finished in industrial enamel yellow, enhancing visibility and adding a touch of color to the system.

• Support Kit Color: Just like the runways, the support kit components come in industrial enamel gray, ensuring a uniform and cohesive appearance.

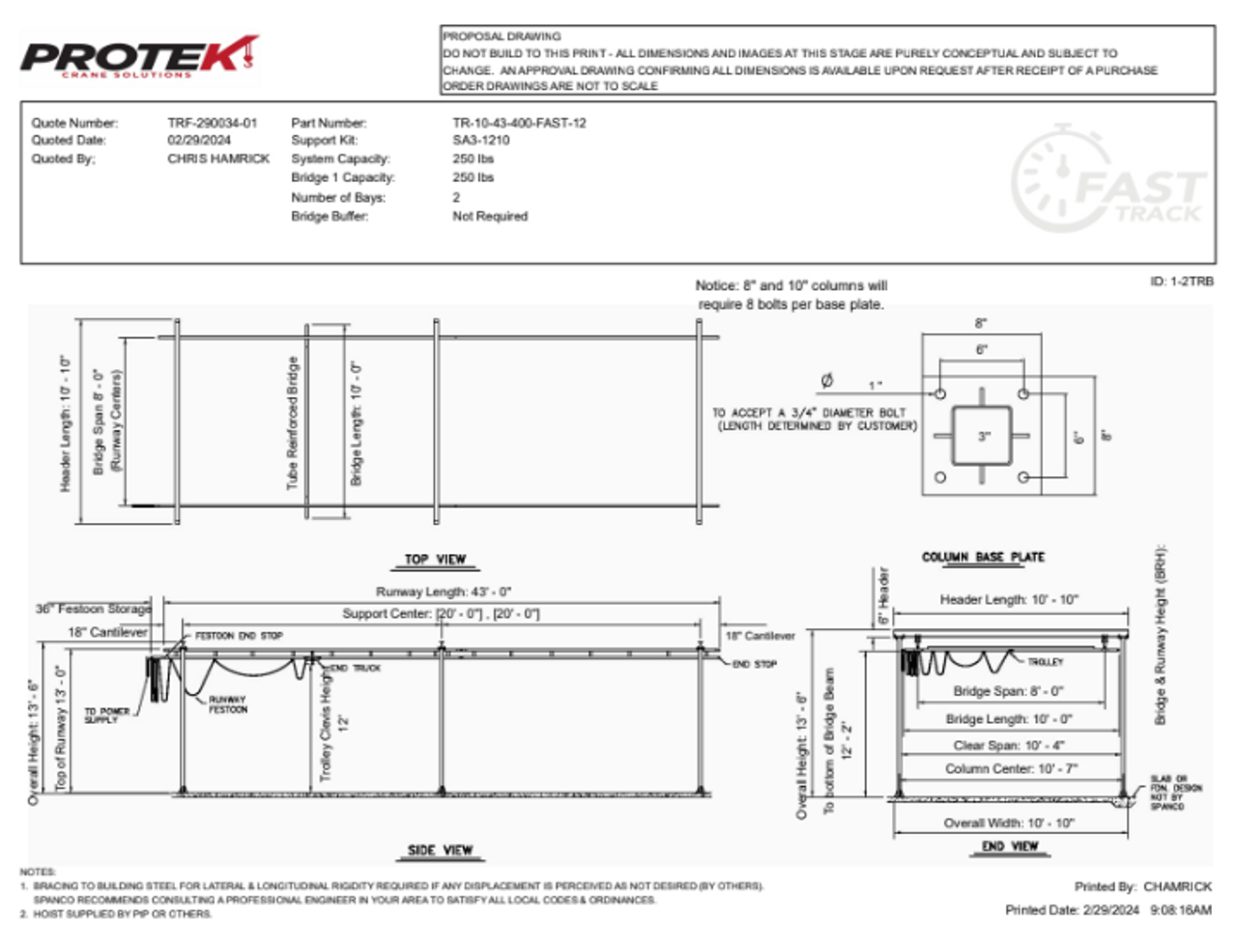

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 250 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 1000 lbs

Runway Length: 43' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 2

Support Center: [20' - 0''], [20' - 0'']

Support Kit: Included (6) columns and (3) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 6''

Overall Width: 10' - 10''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
