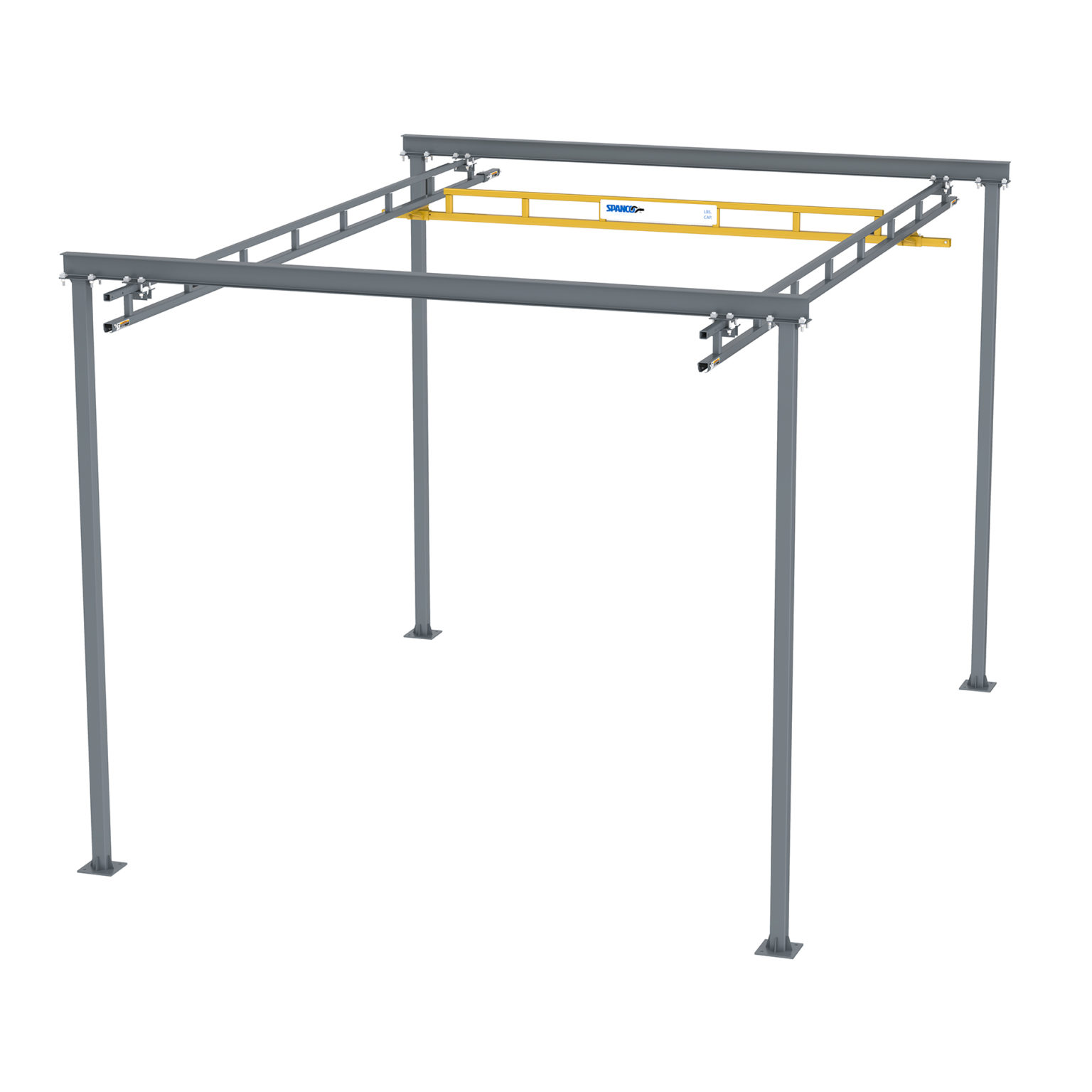

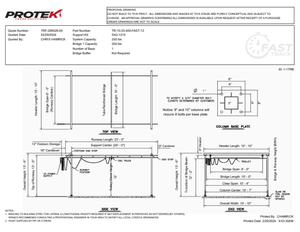

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 250 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-23-400-FAST-12 SPANCO

Product Overview

• Bridge Capacity: With a capacity of 250 lbs, this bridge is designed for efficient handling of lighter loads, ensuring smooth material transport.

• Bridge Length: Spanning 10 feet, the bridge offers a compact yet functional space for material movement within the operational area.

• Bridge Span: Featuring an 8-foot span from the center of one runway to the center of the other, this bridge provides adequate coverage for light-duty material handling tasks.

• Runway Capacity: Each runway is capable of supporting up to 250 lbs, ensuring the safe and secure transport of materials.

• Runway Length: Extending to 23 feet, including an 18-inch cantilever on both the left and right sides, the runways offer versatility in material handling.

• Number of Bays: Configured with a single bay, strategically positioned at a support center of 20 feet, this system ensures efficient load distribution and structural stability.

• Support Kit: Equipped with 4 columns and 2 headers, the support kit provides adequate reinforcement, enhancing the stability and strength of the system.

• Trolley Clevis Height: Set at a height of 12 feet, the trolley clevis facilitates smooth and efficient movement of materials along the runways.

• Overall System Height: Reaching a height of 13 feet 6 inches, this system offers ample vertical clearance for material transport and maneuverability.

• Overall Width: Extending to 10 feet 10 inches, the system provides sufficient space for material transportation while maintaining a compact footprint.

• Bridge Festoon Type: Utilizing flat cable festoon technology, the bridge ensures reliable power and signal transmission for uninterrupted operation.

• Runway Festoon Type: Similarly, the runways are equipped with flat cable festoon technology, enhancing operational efficiency and reliability.

• Runway Color: Finished in industrial enamel gray, the runways offer durability and a professional appearance suitable for various industrial environments.

• Bridge Color: Coated in industrial enamel yellow, the bridge enhances visibility and safety while maintaining durability.

• Support Kit Color: Consistent with the runways, the support kit is coated in industrial enamel gray, ensuring uniformity in appearance and durability.

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 250 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 250 lbs

Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 1

Support Center: [20' - 0'']

Support Kit: Included (4) columns and (2) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 6''

Overall Width: 10' - 10''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
