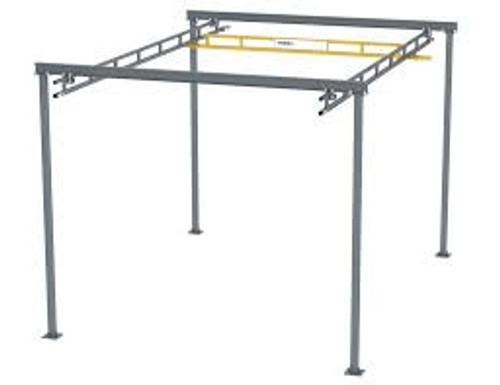

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 500 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-23-500-FAST-12 SPANCO

Product Overview

• Bridge Capacity: With a sturdy capacity of 500 lbs, this bridge ensures the seamless transport of materials with confidence and stability.

• Bridge Length: Spanning 10 feet, the bridge offers a compact yet functional space for material movement within the operational area.

• Bridge Span: Featuring an 8-foot span from the center of one runway to the center of the other, this bridge provides optimal coverage for effective material handling tasks.

• Runway Capacity: Each runway is engineered to support up to 500 lbs, guaranteeing the safe and secure transport of various materials.

• Runway Length: Extending to 23 feet, including an 18-inch cantilever on both the left and right sides, the runways offer versatility and flexibility in material handling.

• Number of Bays: Configured with a single bay, strategically positioned at a support center of 20 feet, this system ensures efficient load distribution and structural integrity.

• Support Kit: Equipped with 4 columns and 2 headers, the support kit provides robust reinforcement, enhancing the overall stability and strength of the system.

• Trolley Clevis Height: Set at a height of 12 feet, the trolley clevis facilitates smooth and efficient movement of materials along the runways, ensuring optimal performance.

• Overall System Height: Reaching a height of 13 feet 8 inches, this system offers ample vertical clearance for material transport and maneuverability, ensuring ease of operation.

• Overall Width: Extending to 11 feet 6 inches, the system provides sufficient space for material transportation while maintaining a compact footprint, optimizing space utilization.

• Bridge Festoon Type: Utilizing flat cable festoon technology, the bridge ensures reliable power and signal transmission, minimizing downtime and maximizing productivity.

• Runway Festoon Type: Similarly, the runways are equipped with flat cable festoon technology, enhancing operational efficiency and reliability, even in demanding environments.

• Runway Color: Finished in industrial enamel gray, the runways offer durability and a professional appearance, ensuring long-lasting performance in industrial settings.

• Bridge Color: Coated in industrial enamel yellow, the bridge enhances visibility and safety, allowing for easy identification and maintenance, while maintaining durability.

• Support Kit Color: Consistent with the runways, the support kit is coated in industrial enamel gray, ensuring uniformity in appearance and durability, complementing the overall system aesthetics.

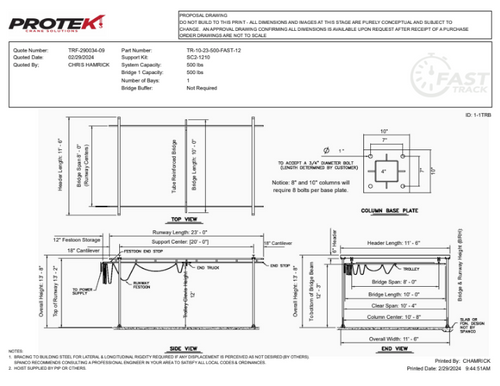

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 500 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 500 lbs

Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 1

Support Center: [20' - 0'']

Support Kit: Included (4) columns and (2) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 8''

Overall Width: 11' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
