Product Overview
-
Bridge Capacity: The bridge is engineered to safely support loads of up to 500 lbs, ensuring reliable transportation of materials across the system.
-
Bridge Length: With a length of 10 feet, the bridge provides a sturdy platform for material movement within the operational area.
-
Bridge Span: The bridge spans 8 feet from the center of one runway to the center of the other, facilitating efficient and smooth material transfer between the runways.
-
Runway Capacity: Each runway is designed to bear loads of up to 500 lbs, providing robust support and stability during material handling operations.
-
Runway Length: The runways extend to a length of 63 feet, inclusive of 18-inch cantilevers on both ends, offering ample space for material handling activities and ensuring flexibility in operation.
-
Number of Bays: The system is configured with three bays, strategically positioned at support centers of 20 feet each, allowing for efficient organization and management of materials.
-
Support Kit: The system includes a comprehensive support kit comprising 8 columns and 4 headers, which provide sturdy structural support and ensure the stability of the entire system.
-
Trolley Clevis Height: The trolley clevis is positioned at a height of 12 feet, facilitating smooth and seamless movement along the runways and enabling efficient material transfer.
-
Overall System Height: With an overall height of 13 feet 8 inches, the system offers ample vertical clearance for material handling operations, ensuring unhindered movement and operation.
-
Overall Width: The system has an overall width of 11 feet 6 inches, optimizing space utilization within the operational area and allowing for efficient material handling and organization.
-
Bridge Festoon Type: Utilizing flat cable festoons, the bridge ensures reliable power and signal transmission, minimizing downtime and ensuring uninterrupted operation.
-
Runway Festoon Type: Similarly, the runways are equipped with flat cable festoons, ensuring consistent performance and reliability even in demanding operating conditions.
-
Runway Color: The runways are coated in industrial enamel gray, providing a durable and visually appealing finish that enhances the overall aesthetics of the system.
-
Bridge Color: The bridge is finished in industrial enamel yellow, ensuring high visibility and safety within the operational environment, thus enhancing operational efficiency.
-
Support Kit Color: Components of the support kit are coated in industrial enamel gray, ensuring uniformity in appearance and complementing the overall design of the system.

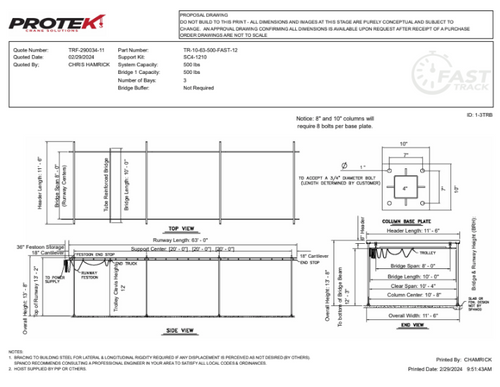

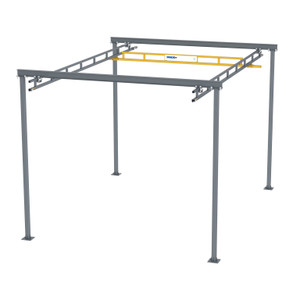

Trussed Bridge Running on Trussed Runways
Bridge Capacity: 500 lbs
Bridge Length: 10' - 0''
Bridge Span: 8' - 0'' Center of runway to center of runway
Runway Capacity: 500 lbs
Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''
Number of Bays: 3
Support Center: [20' - 0''], [20' - 0''], [20' - 0'']
Support Kit: Included (8) columns and (4) headers
Trolley Clevis Height: 12'
Overall System Height: 13' - 8''
Overall Width: 11' - 6''
Bridge Festoon Type: FLAT CABLE
Runway Festoon Type: FLAT CABLE
Runway Color: INDUSTRIAL ENAMEL - GRAY
Bridge Color: INDUSTRIAL ENAMEL - YELLOW
Support Kit Color: INDUSTRIAL ENAMEL - GRAY
