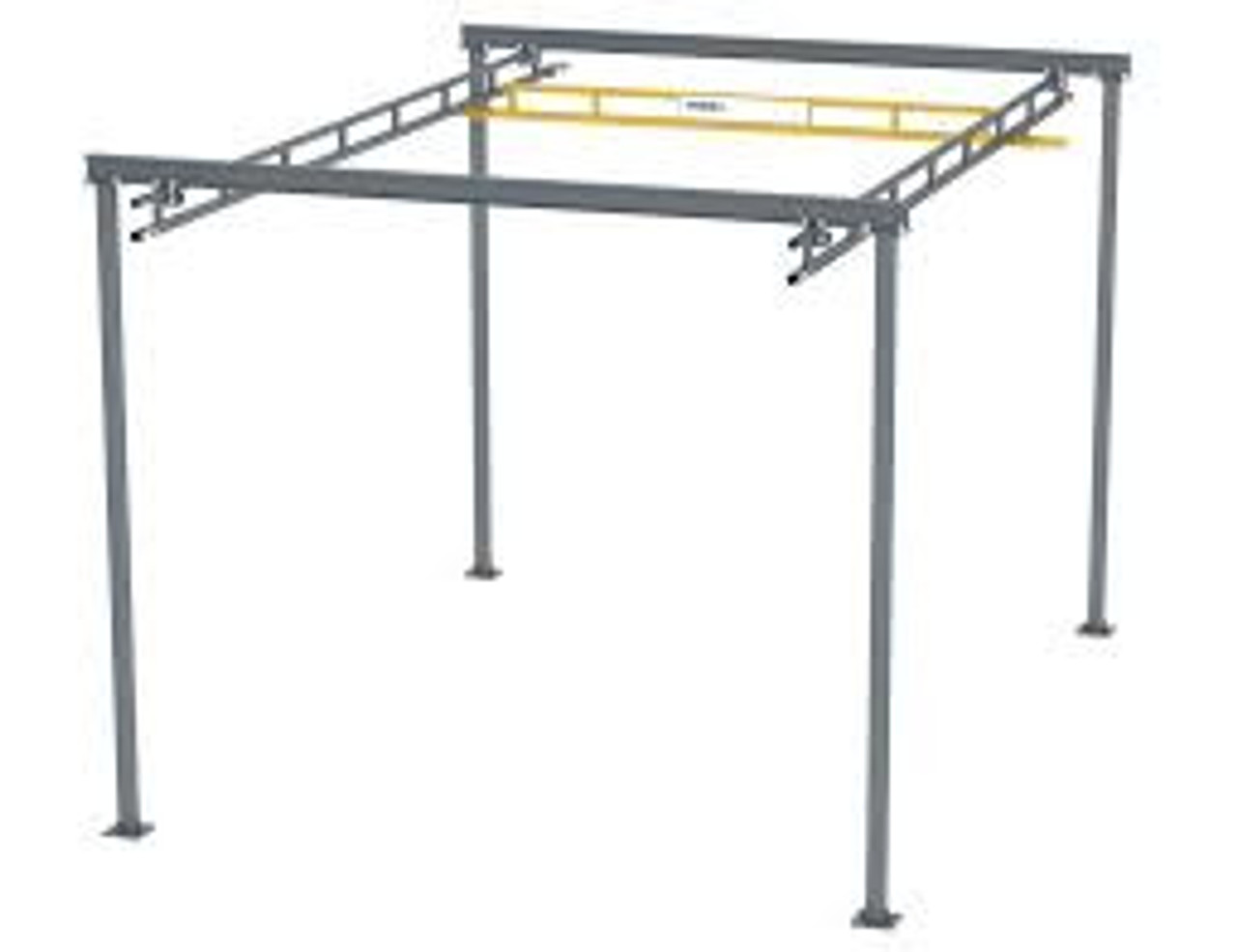

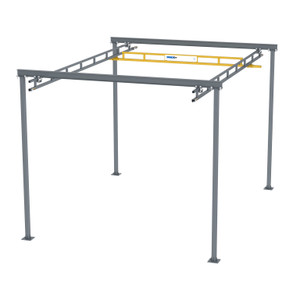

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 500 lbs, Bridge Length: 15' - 0'', Bridge Span: 13' - 0'' Center of runway to center of runway, TR-15-63-500-FAST-12 SPANCO

Product Overview

• Bridge Capacity: Our requirement dictates a bridge capable of supporting loads of up to 500 lbs, ensuring versatility in our material handling operations.

• Bridge Length: We are in need of a bridge with a length of 15 feet to facilitate the transportation of materials within our operational area effectively.

• Bridge Span: The bridge span should measure 13 feet, extending from the center of one runway to the center of the other, to ensure seamless functionality.

• Runway Capacity: Each runway must have a capacity of 500 lbs to accommodate our material handling needs efficiently and safely.

• Runway Length: The total length of the runways should be 63 feet, inclusive of an 18-inch left runway cantilever and the right runway, to cater to our diverse material handling requirements.

• Number of Bays: Our operation necessitates a system with three bays, each with a support center positioned at 20 feet, ensuring stability and structural integrity.

• Support Kit: We require a support kit consisting of eight columns and four headers to provide robust support for the runways and bridge, ensuring safety and stability during operation.

• Trolley Clevis Height: The trolley clevis height should be set at 12 feet to allow for smooth movement and clearance of materials being transported.

• Overall System Height: The overall height of the system should be 13 feet 8 inches, providing ample clearance for material handling activities while optimizing vertical space utilization.

• Overall Width: With an overall width of 16 feet 6 inches, the system should offer sufficient clearance for material transportation and maneuverability within the operational area.

• Bridge Festoon Type: We require flat cable festoon for the bridge to ensure reliable power and signal transmission, thereby facilitating uninterrupted operation.

• Runway Festoon Type: Similar to the bridge, the runways should be equipped with flat cable festoon to ensure efficient power and signal transmission for reliable operation.

• Runway Color: The runways should be finished in industrial enamel gray to maintain a professional appearance while offering durability and resistance to environmental factors.

• Bridge Color: The bridge should be coated in industrial enamel yellow to enhance visibility and safety in the operational environment while ensuring durability and corrosion resistance.

• Support Kit Color: The support kit components should be finished in industrial enamel gray to ensure consistency in appearance and complement the overall design of the system.

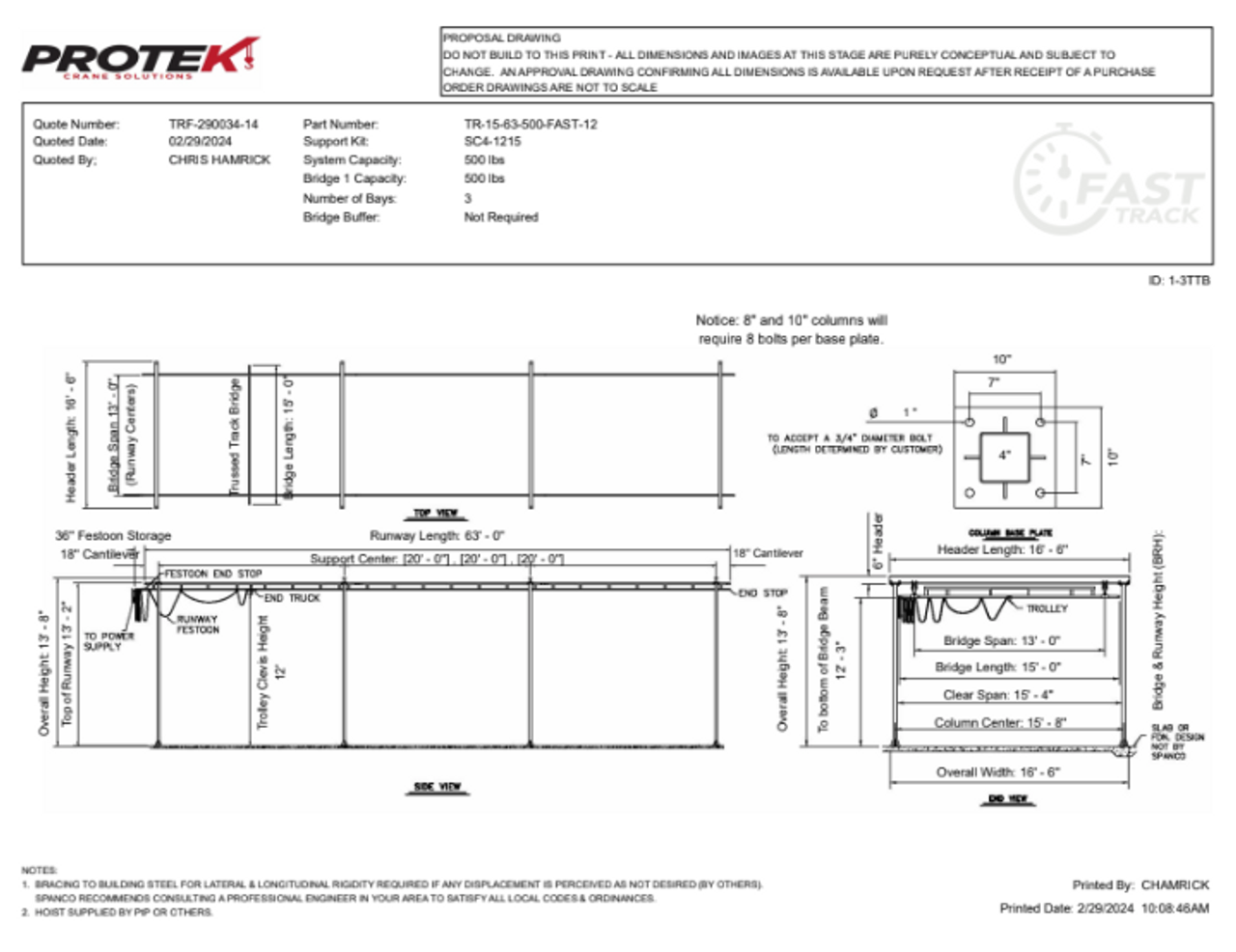

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 500 lbs

Bridge Length: 15' - 0''

Bridge Span: 13' - 0'' Center of runway to center of runway

Runway Capacity: 500 lbs

Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway

Number of Bays: 3

Support Center: [20' - 0''], [20' - 0''], [20' - 0'']

Support Kit: Included (8) columns and (4) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 8''

Overall Width: 16' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
