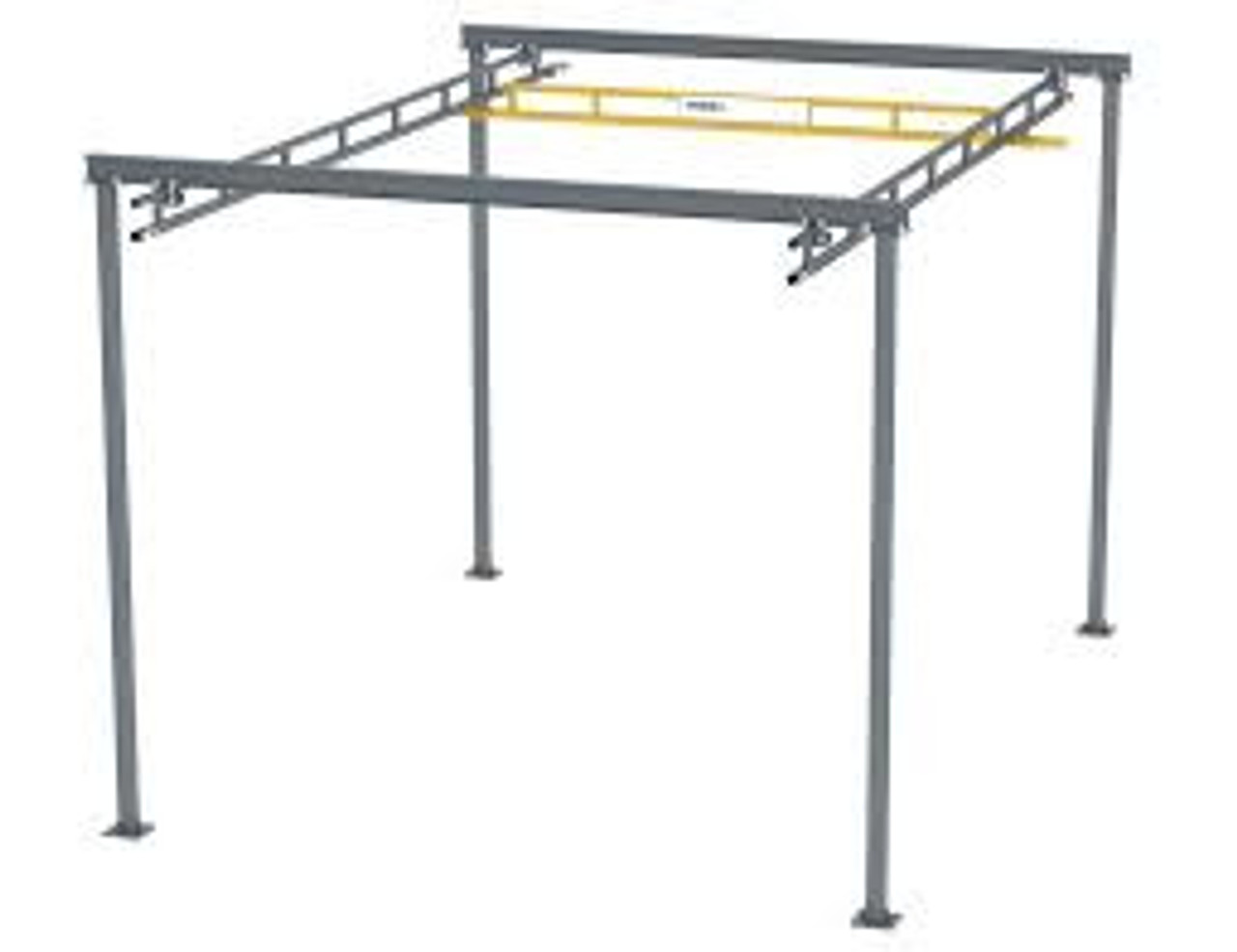

SPANCO Trussed Bridge Running on Trussed Runways, Bridge Capacity: 250 lbs, Bridge Length: 15' - 0'', Bridge Span: 13' - 0'' Center of runway to center of runway, TR-15-63-400-FAST-12

Product Overview

• Bridge Capacity: The bridge must have a capacity of 250 lbs to meet our specific material handling requirements.

• Bridge Length: We require a bridge with a length of 15 feet to ensure efficient material transportation within our operational area.

• Bridge Span: The bridge span should be 13 feet, measured from the center of one runway to the center of the other, ensuring optimal functionality and maneuverability.

• Runway Capacity: Each runway must have a capacity of 250 lbs to ensure safe and reliable operation.

• Runway Length: The total length of the runways should be 63 feet, including an 18-inch left runway cantilever and the right runway, to accommodate our material handling needs effectively.

• Number of Bays: We require a system with three bays, each with a support center positioned at 20 feet, ensuring structural integrity and stability in our operations.

• Support Kit: The system should include eight columns and four headers to provide robust support for the runways and bridge, ensuring safety and stability during operation.

• Trolley Clevis Height: The trolley clevis height should be set at 12 feet to facilitate smooth movement and clearance for materials being transported.

• Overall System Height: The overall height of the system should be 13 feet 6 inches, providing sufficient clearance for material handling activities while maximizing vertical space utilization.

• Overall Width: With an overall width of 15 feet 10 inches, the system should offer ample clearance for material transportation and maneuverability within the operational area.

• Bridge Festoon Type: Utilizing flat cable festoon, the bridge should ensure reliable power and signal transmission, facilitating smooth and uninterrupted operation.

• Runway Festoon Type: Similar to the bridge, the runways should be equipped with flat cable festoon to ensure efficient power and signal transmission for reliable operation.

• Runway Color: The runways should be finished in industrial enamel gray to maintain a professional appearance while offering durability and resistance to environmental factors.

• Bridge Color: The bridge should be coated in industrial enamel yellow to enhance visibility and safety in the operational environment while maintaining durability and corrosion resistance.

• Support Kit Color: The support kit components should be finished in industrial enamel gray to ensure consistency in appearance and complement the overall design of the system.

Trussed Bridge Running on Trussed Runways
Bridge Capacity: 250 lbs
Bridge Length: 15' - 0''
Bridge Span: 13' - 0'' Center of runway to center of runway
Runway Capacity: 250 lbs
Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway
Number of Bays: 3
Support Center: [20' - 0''], [20' - 0''], [20' - 0'']
Support Kit: Included (8) columns and (4) headers
Trolley Clevis Height: 12'
Overall System Height: 13' - 6''
Overall Width: 15' - 10''
Bridge Festoon Type: FLAT CABLE
Runway Festoon Type: FLAT CABLE
Runway Color: INDUSTRIAL ENAMEL - GRAY
Bridge Color: INDUSTRIAL ENAMEL - YELLOW
Support Kit Color: INDUSTRIAL ENAMEL - GRAY
