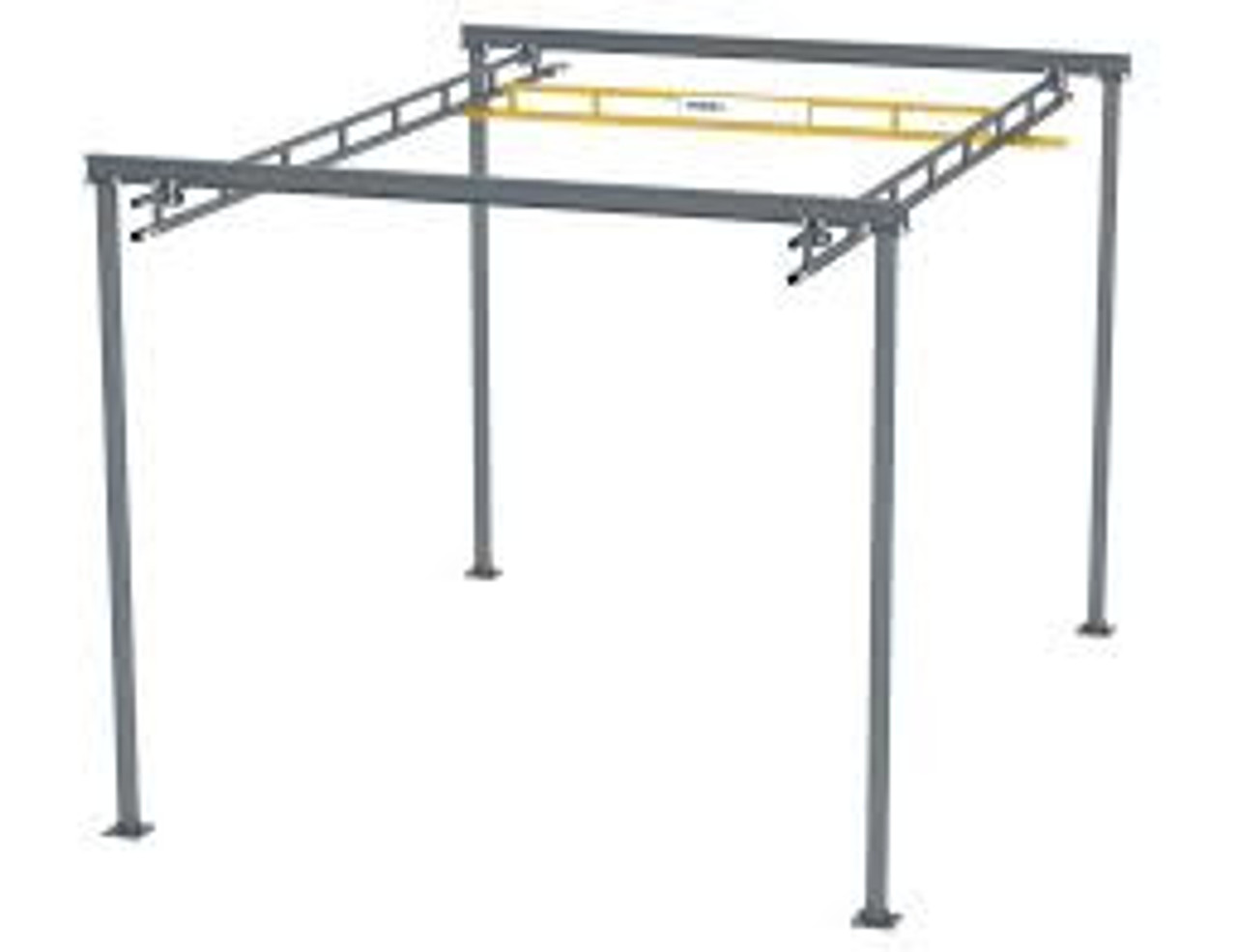

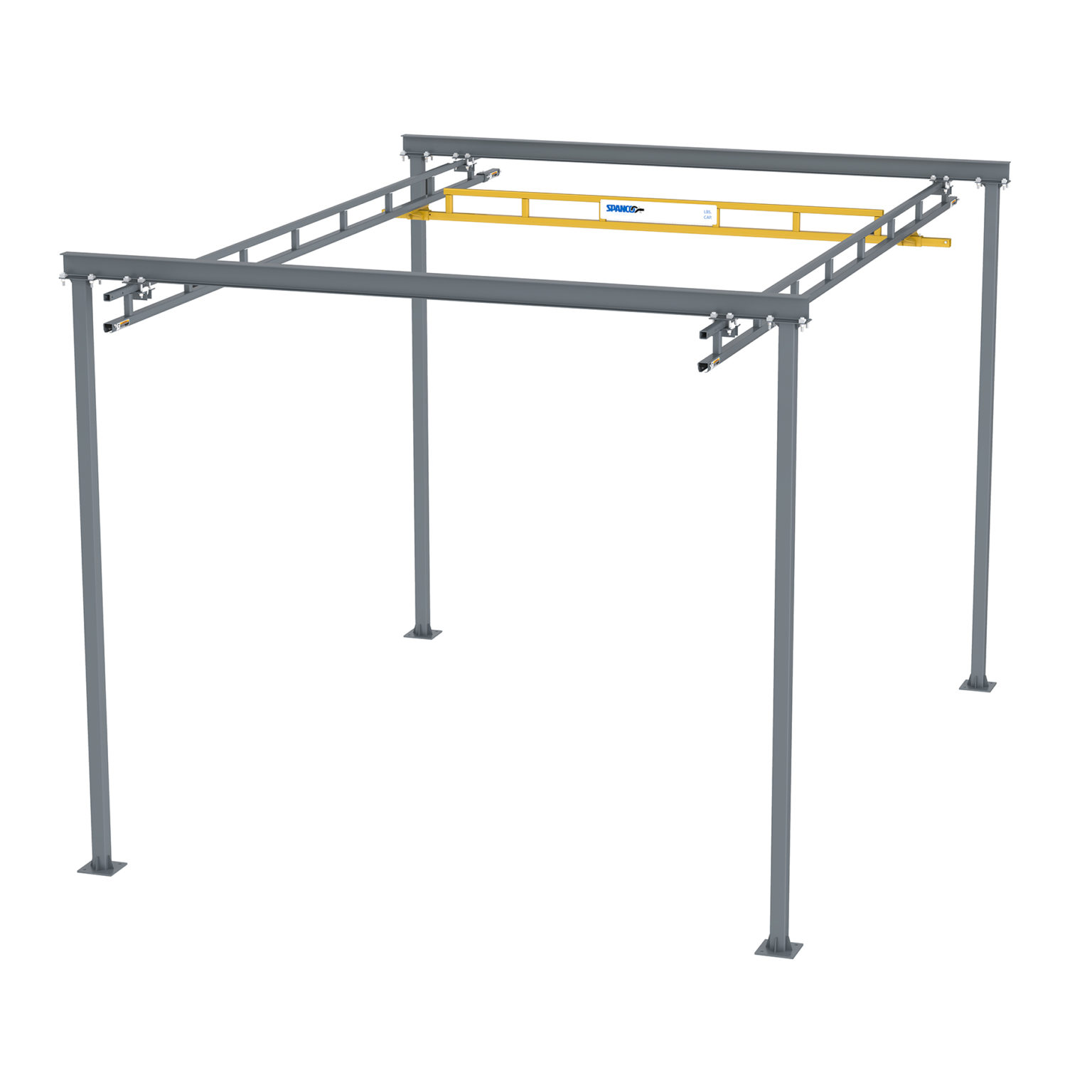

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 2000 lbs, Bridge Length: 15' - 0'', Bridge Span: 13' - 0'' Center of runway to center of runway, TR-15-63-700-FAST-12 SPANCO

Product Overview

• Bridge Capacity: 2000 lbs, ensuring robust support for heavy loads during material transportation.

• Bridge Length: 15' - 0'', providing ample space for material movement across the span.

• Bridge Span: 13' - 0'' from the center of one runway to the center of the other, ensuring proper alignment and stability.

• Runway Capacity: 2000 lbs, suitable for supporting the weight of the bridge and transported materials.

• Runway Length: 63' - 0'', including an 18-inch cantilever on both the left and right sides, enhancing stability and support.

• Number of Bays: Configured with three bays, providing enhanced versatility and flexibility in material handling.

• Support Center: Equipped with support centers spaced at 20' - 0'' intervals, ensuring structural integrity and support for the runways and bridge.

• Support Kit: Includes (8) columns and (4) headers, providing robust support for the entire system and ensuring stability during operation.

• Trolley Clevis Height: Positioned at 12', facilitating smooth movement of the trolley along the bridge.

• Overall System Height: Stands at 14' - 7'', providing sufficient clearance for materials and equipment passing underneath.

• Overall Width: Spans 16' - 7'', accommodating the width of the bridge and ensuring adequate space for material movement.

• Bridge Festoon Type: Equipped with FLAT CABLE festoon system, ensuring organized and safe routing of cables along the bridge.

• Runway Festoon Type: Also features FLAT CABLE festoon system, ensuring efficient cable management along the runways.

• Runway Color: Coated with INDUSTRIAL ENAMEL in gray, providing durability and corrosion resistance.

• Bridge Color: Coated with INDUSTRIAL ENAMEL in yellow, ensuring high visibility and safety during operation.

• Support Kit Color: Also coated with INDUSTRIAL ENAMEL in gray, providing uniformity in color scheme and enhancing aesthetics.

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 2000 lbs

Bridge Length: 15' - 0''

Bridge Span: 13' - 0'' Center of runway to center of runway

Runway Capacity: 2000 lbs

Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 3

Support Center: [20' - 0''], [20' - 0''], [20' - 0'']

Support Kit: Included (8) columns and (4) headers

Trolley Clevis Height: 12'

Overall System Height: 14' - 7''

Overall Width: 16' - 7''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
