Product Overview
-
Bridge Capacity: The bridge is required to support loads of up to 2000 lbs, ensuring robust performance for our material handling needs.
-
Bridge Length: We are looking for a bridge with a length of 15 feet, providing sufficient coverage for material transportation within our operational area.
-
Bridge Span: The bridge span should be 13 feet from the center of one runway to the center of the other, ensuring optimal functionality and maneuverability.
-
Runway Capacity: Each runway should be capable of supporting loads up to 2000 lbs, ensuring stability and reliability during operation.
-
Runway Length: The total length of the runways should be 23 feet, including an 18-inch left runway cantilever and the right runway, to accommodate our material handling requirements.
-
Number of Bays: We require a system with one bay, with the support center positioned at 20 feet, ensuring structural integrity and stability.
-
Support Kit: The system should include four columns and two headers, strategically positioned to provide sturdy support for the runways and bridge, ensuring safety and stability during operation.
-
Trolley Clevis Height: The trolley clevis height should be set at 12 feet, facilitating smooth movement and clearance for materials being transported.
-
Overall System Height: The overall height of the system should be 14 feet 7 inches, providing sufficient clearance for material handling activities while maximizing vertical space utilization.
-
Overall Width: With an overall width of 16 feet 7 inches, the system should offer ample clearance for material transportation and maneuverability within the operational area.
-
Bridge Festoon Type: Utilizing flat cable festoon, the bridge should ensure reliable power and signal transmission, facilitating smooth and uninterrupted operation.
-
Runway Festoon Type: Similar to the bridge, the runways should be equipped with flat cable festoon, ensuring efficient power and signal transmission for reliable operation.
-
Runway Color: Finished in industrial enamel gray, the color of the runways should provide a sleek and professional appearance while offering durability and resistance to environmental factors.
-
Bridge Color: The bridge should be coated in industrial enamel yellow, enhancing visibility and safety in the operational environment while maintaining durability and corrosion resistance.
-
Support Kit Color: The support kit components should be finished in industrial enamel gray, ensuring consistency in appearance and complementing the overall design of the system.

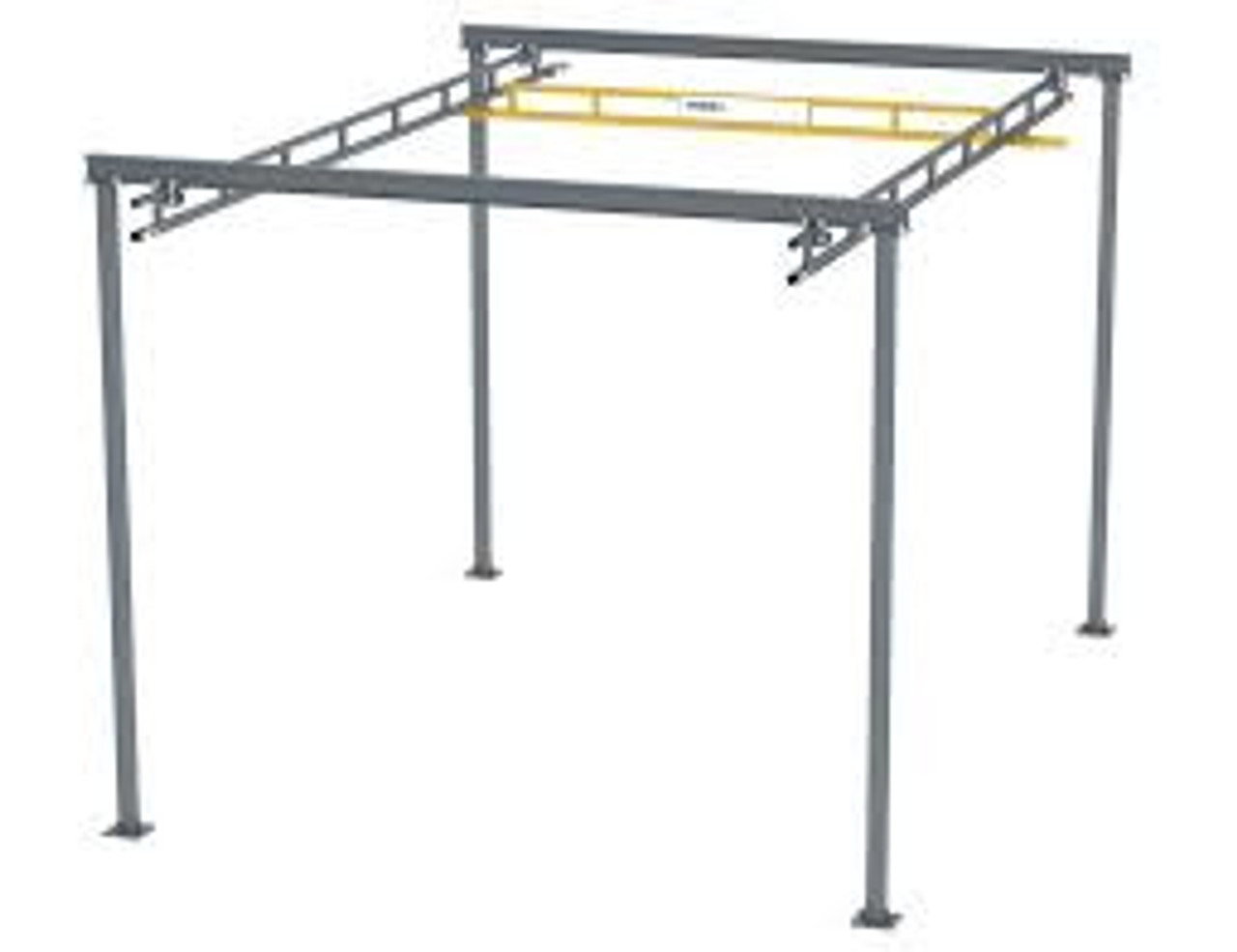

Trussed Bridge Running on Trussed Runways
Bridge Capacity: 2000 lbs
Bridge Length: 15' - 0''
Bridge Span: 13' - 0'' Center of runway to center of runway
Runway Capacity: 2000 lbs
Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway
Number of Bays: 1
Support Center: [20' - 0'']
Support Kit: Included (4) columns and (2) headers
Trolley Clevis Height: 12'
Overall System Height: 14' - 7''
Overall Width: 16' - 7''
Bridge Festoon Type: FLAT CABLE
Runway Festoon Type: FLAT CABLE
Runway Color: INDUSTRIAL ENAMEL - GRAY
Bridge Color: INDUSTRIAL ENAMEL - YELLOW
Support Kit Color: INDUSTRIAL ENAMEL - GRAY
