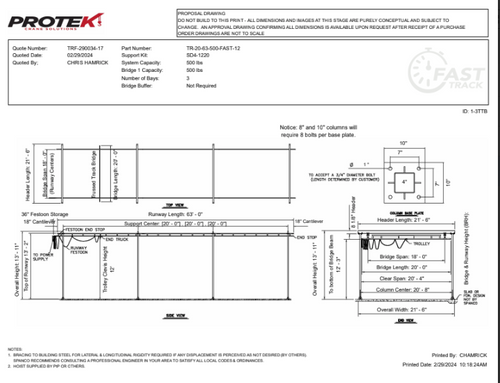

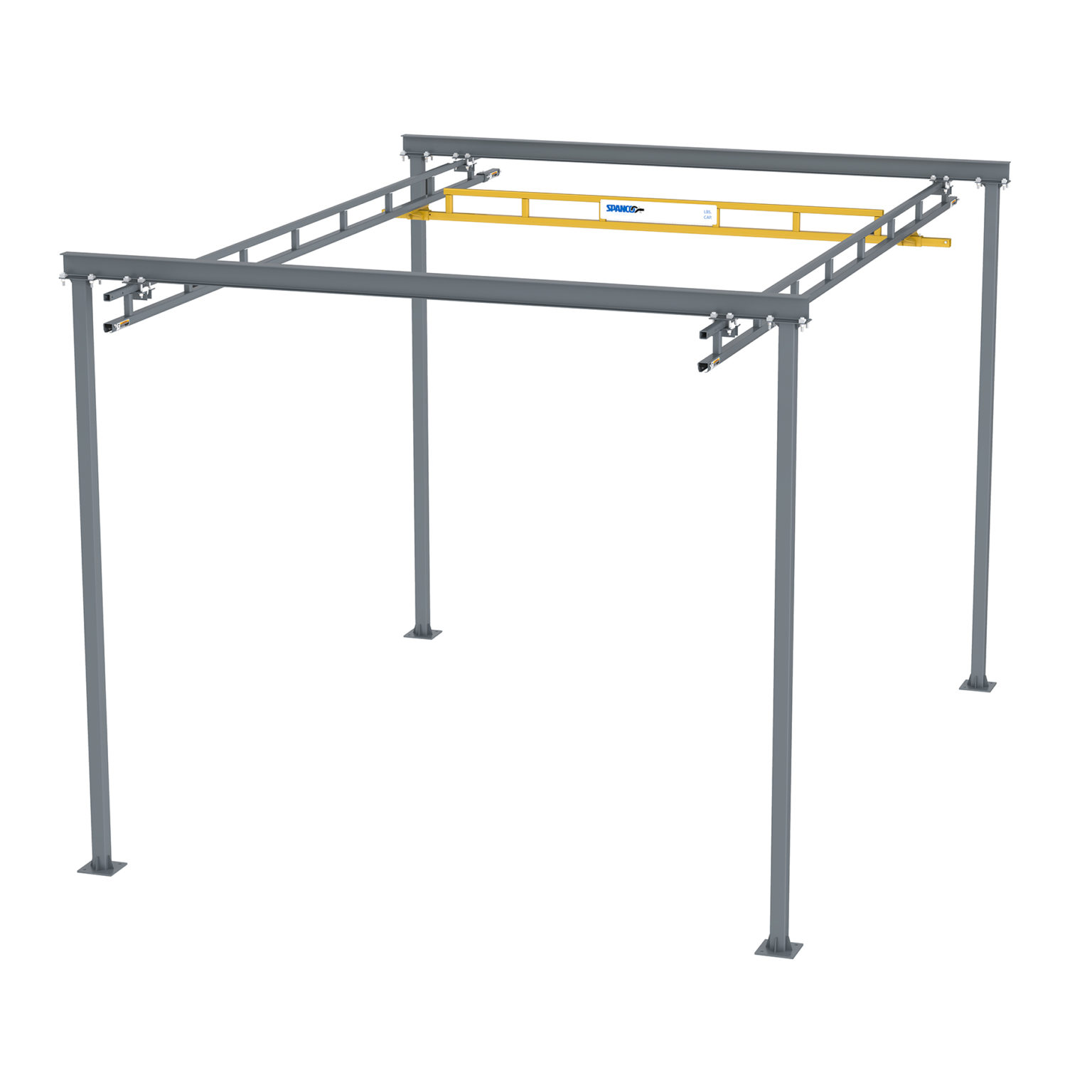

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 500 lbs, Bridge Length: 20' - 0'', Bridge Span: 18' - 0'' Center of runway to center of runway, TR-20-63-500-FAST-12 SPANCO

Product Overview

Bridge Capacity: This trussed bridge system is capable of supporting loads of up to 500 lbs, providing reliable transportation for various materials within industrial settings.

Bridge Length: The bridge spans a length of 20 feet, offering ample space for the movement of materials and equipment across the workspace.

Bridge Span: With a span of 18 feet from the center of one runway to the center of the other, this configuration ensures stability and proper alignment of the entire system.

Runway Capacity: The runways are designed to support loads of up to 500 lbs, providing sturdy and dependable support for the bridge and the transported materials.

Runway Length: The total length of the runways is 63 feet, including left and right runway cantilevers of 18 inches each, offering extended support and stability for material transportation.

Number of Bays: Configured with three bays, this setup enhances the structural integrity and load-bearing capacity of the entire system, accommodating heavier loads and ensuring optimal performance.

Support Center: Equipped with three support centers positioned at [20' - 0''], ensuring optimal support and stability throughout the system.

Support Kit: Includes eight columns and four headers, providing robust support for the bridge and runways, enhancing stability and load-bearing capacity.

Trolley Clevis Height: Positioned at a height of 12 feet, the trolley clevis facilitates smooth movement of the trolley along the bridge, ensuring efficient material transportation.

Overall System Height: Stands at 13 feet and 11 inches, providing sufficient clearance for materials and equipment passing underneath, ensuring safe operation within the workspace.

Overall Width: Spans 21 feet and 6 inches, accommodating the width of the bridge and ensuring adequate space for material movement, promoting efficient workflow.

Bridge Festoon Type: Equipped with a FLAT CABLE festoon system, ensuring organized and safe routing of cables along the bridge, minimizing the risk of entanglement and damage.

Runway Festoon Type: Also features a FLAT CABLE festoon system, ensuring efficient cable management along the runways, enhancing overall system reliability and safety.

Runway Color: Coated with industrial enamel in gray, providing durability and corrosion resistance to the runways, ensuring long-lasting performance in industrial environments.

Bridge Color: Coated with industrial enamel in yellow, ensuring high visibility and safety during operation, minimizing the risk of accidents and enhancing workplace safety.

Support Kit Color: The support kit is coated with industrial enamel in gray, providing a uniform color scheme and enhancing the aesthetics of the system, ensuring a professional appearance within the workspace.

Trussed Bridge Running on Trussed Runways
Bridge Capacity: 500 lbs
Bridge Length: 20' - 0''
Bridge Span: 18' - 0'' Center of runway to center of runway
Runway Capacity: 500 lbs
Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''
Number of Bays: 3
Support Center: [20' - 0''], [20' - 0''], [20' - 0'']
Support Kit: Included (8) columns and (4) headers
Trolley Clevis Height: 12'
Overall System Height: 13' - 11''
Overall Width: 21' - 6''
Bridge Festoon Type: FLAT CABLE
Runway Festoon Type: FLAT CABLE
Runway Color: INDUSTRIAL ENAMEL - GRAY
Bridge Color: INDUSTRIAL ENAMEL - YELLOW
Support Kit Color: INDUSTRIAL ENAMEL - GRAY
