Trussed Bridge Running on Trussed Runways, Bridge Capacity: 1000 lbs, Bridge Length: 20' - 0'', Bridge Span: 18' - 0'' Center of runway to center of runway, TR-20-63-600-FAST-12 SPANCO

Product Overview

• Bridge Capacity: With a substantial capacity of 1000 lbs, the bridge ensures efficient transportation of heavy loads.

• Bridge Length: Extending to 20 feet, the bridge provides ample space for material transport within the operational area.

• Bridge Span: Featuring an 18-foot span from the center of one runway to the center of the other, the bridge covers extensive ground for seamless material handling.

• Runway Capacity: Each runway boasts a capacity of 1000 lbs, guaranteeing the safe and secure transport of materials.

• Runway Length: Extending to 63 feet, inclusive of an 18-inch cantilever on both the left and right sides, the runways offer versatility in material handling.

• Number of Bays: This system is configured with three bays, each strategically positioned at a support center of 20 feet, ensuring optimal load distribution and structural integrity.

• Support Kit: Equipped with 8 columns and 4 headers, the support kit provides robust reinforcement, enhancing stability and strength throughout the system.

• Trolley Clevis Height: Set at a height of 12 feet, the trolley clevis facilitates smooth and efficient movement of materials along the runways.

• Overall System Height: Reaching a height of 14 feet 1 inch, the system offers ample vertical clearance for material transport and maneuverability.

• Overall Width: Extending to 21 feet 6 inches, the system provides sufficient space for material transportation, minimizing operational constraints.

• Bridge Festoon Type: Utilizing flat cable festoon technology, the bridge ensures reliable power and signal transmission for uninterrupted operation.

• Runway Festoon Type: Similarly, the runways are equipped with flat cable festoon technology, enhancing operational efficiency and reliability.

• Runway Color: Finished in industrial enamel gray, the runways offer durability and a professional aesthetic suitable for industrial environments.

• Bridge Color: Coated in industrial enamel yellow, the bridge enhances visibility and safety while maintaining durability.

• Support Kit Color: Consistent with the runways, the support kit is coated in industrial enamel gray, ensuring uniformity in appearance and durability.

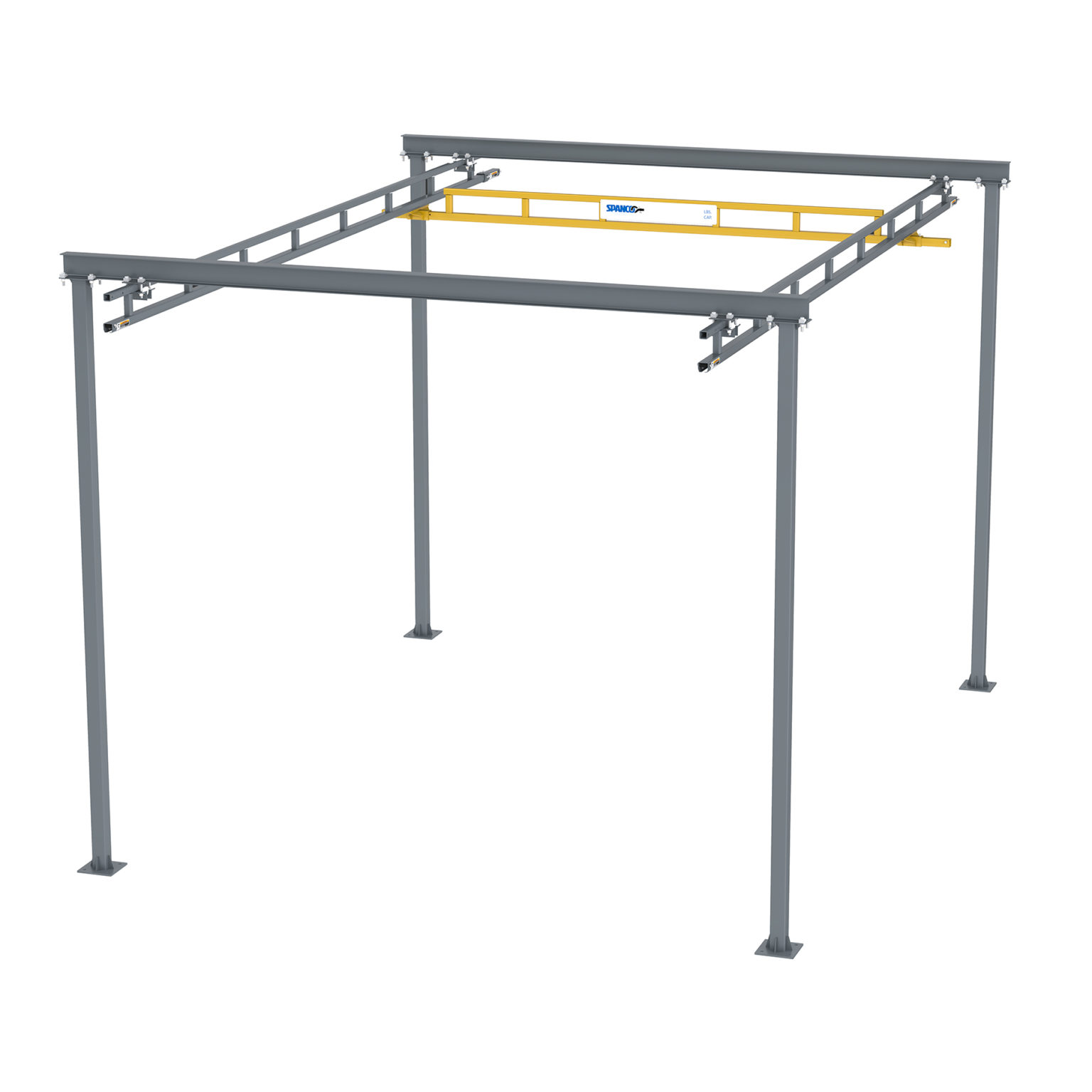

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 1000 lbs

Bridge Length: 20' - 0''

Bridge Span: 18' - 0'' Center of runway to center of runway

Runway Capacity: 1000 lbs

Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 3

Support Center: [20' - 0''], [20' - 0''], [20' - 0'']

Support Kit: Included (8) columns and (4) headers

Trolley Clevis Height: 12'

Overall System Height: 14' - 1''

Overall Width: 21' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
