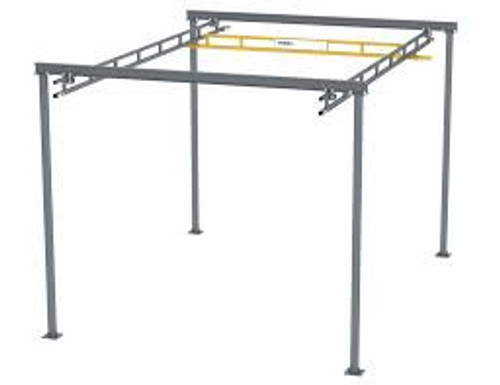

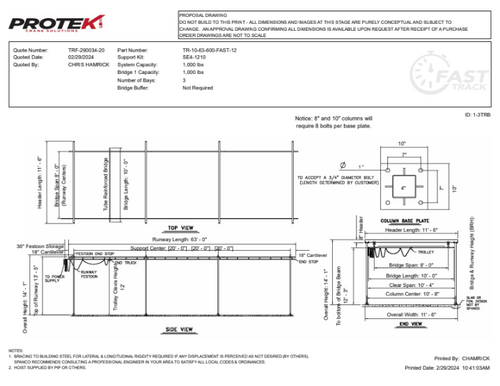

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 1000 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-63-600-FAST-12 SPANCO

Product Overview

Bridge Specifications: The bridge, engineered to handle a substantial load of 1000 lbs, stretches elegantly across a length of precisely 10 feet. Its span, spanning 8 feet from the center of one runway to the center of the other, ensures efficient material transfer within your facility.

Runway Specifications: The runways, mirroring the bridge's capacity, extend impressively over a length of 63 feet. These runways are meticulously crafted to include cantilevers on both ends, each providing an additional 18 inches of space for seamless maneuverability of your materials.

Support Structure: To ensure the structural integrity of the entire system, three support centers, strategically positioned at 20-foot intervals, provide robust reinforcement. The support kit, inclusive of 8 columns and 4 headers, further fortifies the system, guaranteeing stability and reliability in your operations.

Trolley Clevis Height: Situated at a height of 12 feet, the trolley clevis facilitates smooth and effortless traversal along the runways, enhancing operational efficiency within your facility.

Overall Dimensions: With an overall system height reaching a commanding 14 feet and 1 inch and spanning a width of 11 feet and 6 inches, this system commands attention with its imposing presence.

Festoon Types and Colors: Both the bridge and runway festoon types are of the flat cable variety, ensuring durability and efficiency in cable management. The industrial enamel yellow hue of the bridge and the industrial enamel gray color of the runways and support kit exude a professional aesthetic while maintaining visibility in your industrial setting.

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 1000 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 1000 lbs

Runway Length: 63' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 3

Support Center: [20' - 0''], [20' - 0''], [20' - 0'']

Support Kit: Included (8) columns and (4) headers

Trolley Clevis Height: 12'

Overall System Height: 14' - 1''

Overall Width: 11' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
