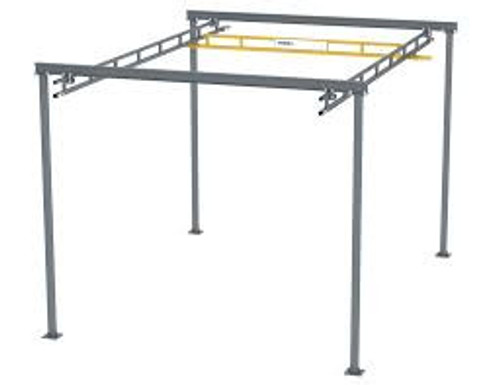

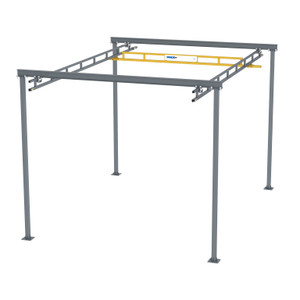

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 1000 lbs, Bridge Length: 10' - 0'', Bridge Span: 8' - 0'' Center of runway to center of runway, TR-10-23-600-FAST-12 SPANCO

Product Overview

• Bridge Capacity: It can handle up to 1000 lbs, making it perfect for hauling hefty loads with ease.

• Bridge Length: The bridge measures 10 feet long, offering just the right amount of space for moving materials around.

• Bridge Span: With an 8-foot span from one runway to the other, it ensures smooth material transport within the operational area.

• Runway Capacity: Each runway can support up to 1000 lbs, ensuring sturdy support for your materials.

• Runway Length: The runways stretch out to 23 feet, featuring 18-inch cantilevers on both ends for added flexibility.

• Number of Bays: It's designed with a single bay, positioned conveniently at a support center of 20 feet.

• Support Kit: Equipped with 4 columns and 2 headers, this kit provides solid reinforcement to keep everything stable and secure.

• Trolley Clevis Height: The trolley clevis sits at a height of 12 feet, allowing for smooth movement along the runways.

• Overall System Height: Standing tall at 14 feet 1 inch, it offers plenty of vertical space for material transport.

• Overall Width: It spans 11 feet 6 inches wide, striking a balance between functionality and space efficiency.

• Bridge Festoon Type: Featuring flat cable festoons, the bridge ensures reliable power and signal transmission for uninterrupted operation.

• Runway Festoon Type: The runways also utilize flat cable festoons, providing consistent performance even in demanding conditions.

• Runway Color: Finished in industrial enamel gray, the runways blend seamlessly into industrial environments.

• Bridge Color: Coated in industrial enamel yellow, the bridge adds a pop of color while maintaining durability and visibility.

• Support Kit Color: Just like the runways, the support kit comes in industrial enamel gray, keeping everything looking sleek and uniform.

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 1000 lbs

Bridge Length: 10' - 0''

Bridge Span: 8' - 0'' Center of runway to center of runway

Runway Capacity: 1000 lbs

Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 1

Support Center: [20' - 0'']

Support Kit: Included (4) columns and (2) headers

Trolley Clevis Height: 12'

Overall System Height: 14' - 1''

Overall Width: 11' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
