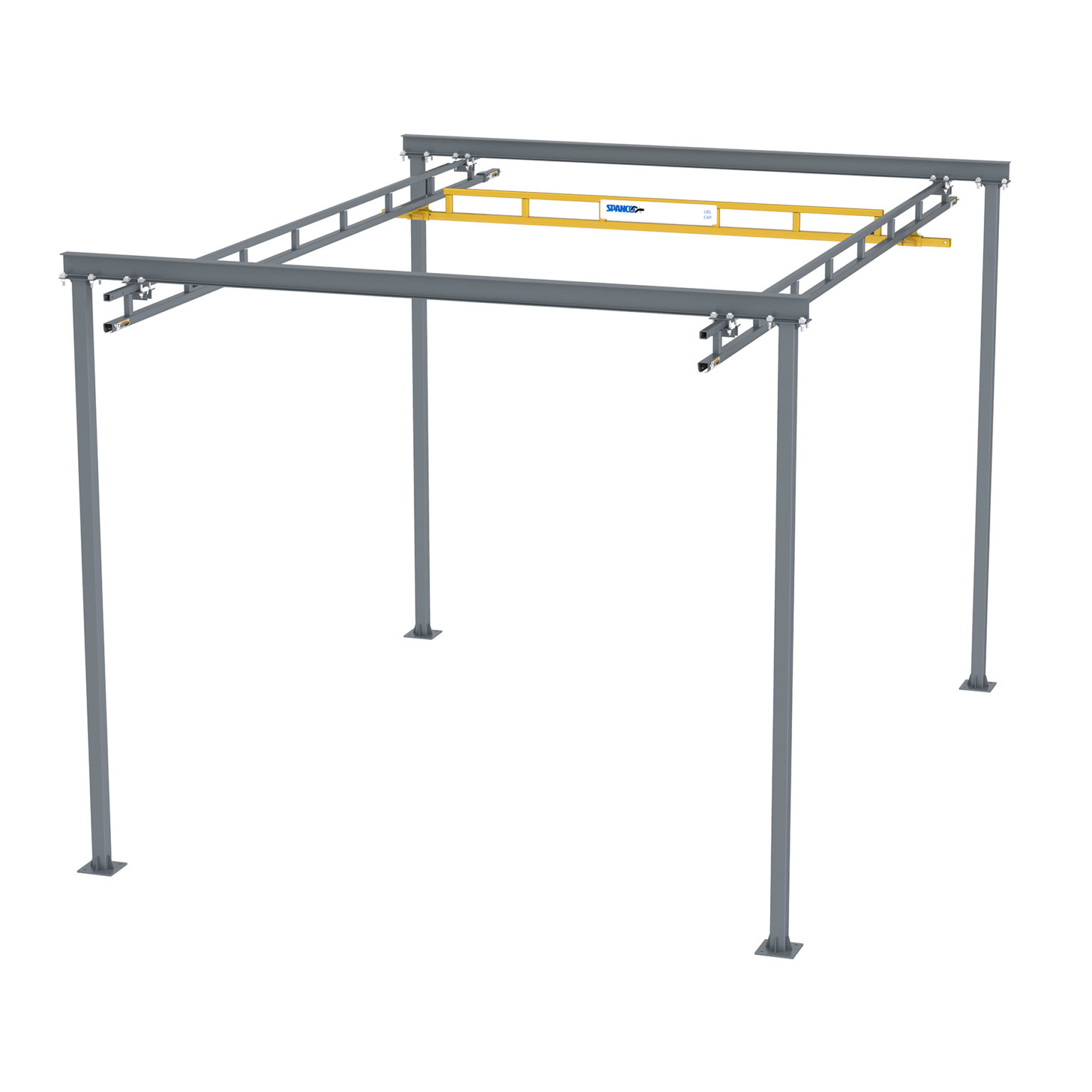

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 500 lbs, Bridge Length: 20' - 0'', Bridge Span: 13' - 0'' Center of runway to center of runway, TR-20-23-500-FAST-12 SPANCO

Product Overview

• Bridge Capacity: This bad boy can handle up to 500 lbs of weight.

• Bridge Length: It stretches out to 20 feet, giving us plenty of room for our materials.

• Bridge Span: With an 18-foot span from the center of one runway to the center of the other, it covers some serious ground.

• Runway Capacity: Just like the bridge, the runways can each handle up to 500 lbs.

• Runway Length: Each runway is 23 feet long, complete with an 18-inch left and right runway cantilever.

• Number of Bays: We're working with a single bay setup here.

• Support Center: Positioned at 20 feet, ensuring stability and strength.

• Support Kit: It comes equipped with 4 columns and 2 headers, providing sturdy support for the entire system.

• Trolley Clevis Height: The trolley clevis sits at a height of 12 feet, allowing for smooth movement of materials.

• Overall System Height: Stands tall at 13 feet 11 inches, giving us plenty of vertical space to work with.

• Overall Width: Spreads out to 21 feet 6 inches, providing ample room for material transportation.

• Bridge Festoon Type: The bridge is rigged up with flat cable festoon for reliable power and signal transmission.

• Runway Festoon Type: Same deal here - flat cable festoon for seamless operation.

• Runway Color: Finished in industrial enamel gray, ensuring durability and a professional look.

• Bridge Color: Sporting an industrial enamel yellow coat, enhancing visibility and safety in the work environment.

• Support Kit Color: Coated in industrial enamel gray, blending in seamlessly with the runways.

Trussed Bridge Running on Trussed Runways

Bridge Capacity: 500 lbs

Bridge Length: 20' - 0''

Bridge Span: 18' - 0'' Center of runway to center of runway

Runway Capacity: 500 lbs

Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''

Number of Bays: 1

Support Center: [20' - 0''

Support Kit: Included (4) columns and (2) headers

Trolley Clevis Height: 12'

Overall System Height: 13' - 11''

Overall Width: 21' - 6''

Bridge Festoon Type: FLAT CABLE

Runway Festoon Type: FLAT CABLE

Runway Color: INDUSTRIAL ENAMEL - GRAY

Bridge Color: INDUSTRIAL ENAMEL - YELLOW

Support Kit Color: INDUSTRIAL ENAMEL - GRAY
