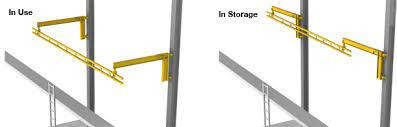

1-User, Arm Reach: 10'-0", Track Length: 23'-0" Including 18" Overhangs, Support Centers 20'-0", Standard Fold-Away Anchor TrackTM System, FAF-1-10-23-520-20 Rigid Lifelines

Product Overview

Worker Capacity: Designed for a single user, the Fold-Away Anchor TrackTM System ensures non-passable functionality, prioritizing safety in industrial environments.

Trussed Single Track Design: Engineered with a robust trussed single track design, this system provides optimal strength and stability while minimizing weight, ensuring reliable support during operation.

Support Arms: Equipped with two support arms, this system enhances stability and support, reinforcing the structure for safety and smooth operation.

Arm Reach: With an arm reach of 10 feet, users can access distant points within the workspace efficiently, enhancing productivity and maneuverability during tasks.

Track Length: The track spans 23 feet in length, including 18-inch overhangs on both ends, ensuring comprehensive coverage within the workspace for versatile applications.

Optimal Support and Bracket Centers: Supported by brackets spaced 20 feet apart and with bracket centers at 5 feet intervals, the system ensures optimal support and stability during operation, enhancing safety and performance.

Rotation Lock Feature: One of the support arms includes a rotation lock mechanism, preventing unintended rotation and ensuring controlled movement for enhanced safety.

Customizable Drop Length of Operating Rope: Customers can specify the drop length of the operating rope, ensuring proper installation and operation tailored to individual application requirements.

Anchor Trolley with Patented Auto-Brake Technology: Equipped with an anchor trolley featuring patented auto-brake technology, this system ensures smooth and controlled movement along the track, enhancing safety and preventing unintended traversal.

Fixed Stops: Fixed stops at each end of the track prevent the trolley from traversing beyond the designated limits, enhancing safety and preventing accidents or damage.

High Loading Capacity: Capable of withstanding thrust or pull loading of up to ±4500 pounds, this system demonstrates exceptional strength and durability for demanding industrial environments.

Optimized Weight: Weighing approximately 1008 pounds, the system strikes a balance between structural stability and maneuverability, facilitating ease of installation and adjustment.

Durable Coating and Painting: Coated with yellow industrial enamel suitable for indoor applications, this system offers superior corrosion resistance and durability, maintaining a professional appearance in indoor work environments.

Comprehensive System Inclusions: The system comes complete with swing arms, track, trolley(s), end stops, splice(s) (if applicable), and hangers, ensuring ease of installation and operation.

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 10'-0"
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Bracket Centers 5'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*
**Designed to be used ONLY when fully extended**
Trolleys: 1 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops One at Each End
Thrust/Pull Loading: ± 4500
Weight: ± 1008 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
