Standard Fold-Away Anchor TrackTM System 2-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 8'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ¬± 5900, Weight: 1047 lbs FAF-2-08-28-520DST-25 Rigid Lifelines

RIGID LIFELINES

MSRP: $12,416.00

$10,243.20

(You save $2,172.80 )

(No reviews yet) Write a Review

SKU:: FAF-2-10-23-520DST-20
Weight:: 1,047.00 LBS
Shipping:: Calculated at Checkout

Overview
Product Videos
Reviews

Product Overview

Worker Capacity: This system is capable of accommodating up to 2 users simultaneously, ensuring optimal efficiency in operations. It is specifically engineered as a non-passable structure, prioritizing safety and stability.

Trussed Single Track with Support Arms: The system is equipped with a sturdy trussed single track that ensures robust support for various applications. Included are two support arms, meticulously designed to enhance stability and load-bearing capacity.

Arm Reach: With an impressive arm reach of 8 feet, this system provides ample coverage for a wide range of tasks, allowing users to maneuver efficiently within their work environment.

Track Length and Design: The track spans a length of 23 feet, including 18-inch overhangs on both ends. This design ensures comprehensive coverage while allowing for flexibility in maneuvering equipment or materials. The support centers are strategically placed at 20 feet, maximizing stability and minimizing potential stress points.

Rotation Lock: A rotation lock mechanism is integrated into one of the support arms, providing enhanced control and stability during operations. This feature ensures precise positioning and minimizes the risk of unintended movement, further enhancing safety.

Operating Rope Specification: Customers have the option to specify the drop length of the operating rope, particularly relevant for manual operation. This customization ensures that the system is tailored to specific requirements, optimizing usability and functionality.

Usage Guidelines: The system is designed to be utilized exclusively when fully extended, ensuring optimal performance and safety. This specification underscores the importance of adhering to recommended usage guidelines for maximum efficiency and longevity.

Anchor Trolleys with Auto-Brake Technology: Two anchor trolleys equipped with patented auto-brake technology are included, offering superior control and safety during movement. This advanced feature automatically engages brakes to secure the trolleys in position, minimizing the risk of unintended movement and enhancing operational safety.

Fixed Stops: Fixed stops are installed at both ends of the track, providing precise endpoints for operational activities. This feature ensures accurate positioning and prevents overextension, contributing to overall safety and efficiency.

Thrust/Pull Loading and Weight Capacity: The system boasts an impressive thrust/pull loading capacity of approximately ± 5900, making it suitable for a wide range of applications. With a weight of ± 1047 lbs, the system strikes a balance between robustness and maneuverability.

Coating and Painting: Finished in yellow industrial enamel, the system is designed for indoor applications, offering durability and corrosion resistance. This coating ensures longevity and maintains aesthetic appeal in various industrial environments.

Complete System: The system is delivered complete with swing arms, track, trolleys, end stops, and hangers, ensuring seamless integration and ease of installation. Optional splices are included if applicable, providing versatility for different configurations and setups.

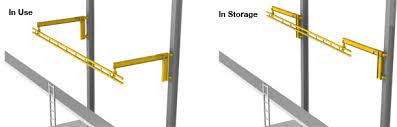

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 2 -User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 8'-0"
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Bracket Centers 4'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*
**Designed to be used ONLY when fully extended**
Trolleys: 2 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops Two at Each End
Thrust/Pull Loading: ± 5900
Weight: ± 1047 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
