Standard Fold-Away Anchor TrackTM System 2-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 8'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ± 5900, Weight: 1200 lbs FAF-2-08-33-520DST-30 Rigid Lifelines

Product Overview

• Worker Capacity: Designed to accommodate two users simultaneously, ensuring efficient operation without compromising safety.

• Trussed Single Track: Featuring a non-passable trussed single track design, this system provides robust support and stability, even under heavy loads and challenging conditions.

• Support Arms: Equipped with two support arms, each boasting an impressive reach of 8 feet, allowing ample space for users to work comfortably and securely.

• Track Length: The track spans 33 feet, inclusive of 18-inch overhangs on both ends, providing extensive coverage and flexibility in maneuverability.

• Support Centers: Positioned at 30 feet intervals along the track, ensuring optimal structural integrity and load distribution for enhanced performance.

• Bracket Centers: Spaced at 4 feet intervals, the bracket centers offer secure attachment points, contributing to overall stability and reliability.

• Rotation Lock: Features a rotation lock mechanism on one arm, allowing for precise positioning and control during operation, enhancing safety and efficiency.

• Operating Rope Drop Length: Customers have the option to specify the drop length of the operating rope, particularly relevant for manual operation, offering customization to suit specific needs.

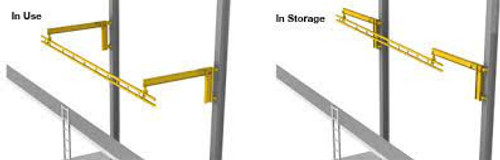

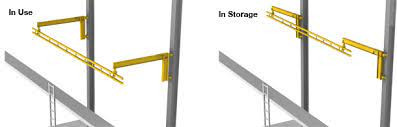

• Usage Guidelines: Intended for use exclusively when fully extended, adhering to safety standards and ensuring optimal functionality.

• Anchor Trolleys: Includes two anchor trolleys equipped with patented auto-brake technology, ensuring smooth movement and secure positioning, enhancing user safety and convenience.

• Fixed Stops: Incorporates two fixed stops at each end of the track, providing precise endpoint control and preventing overextension, further enhancing safety and efficiency.

• Thrust/Pull Loading: Capable of withstanding ± 5900 pounds of thrust or pull force, demonstrating robust construction and durability to meet the demands of industrial applications.

• Weight: Weighing approximately 1200 pounds, the system offers a sturdy foundation for reliable operation and long-term durability.

• Coating & Painting: Finished in yellow industrial enamel, the coating provides corrosion resistance and high visibility, making it suitable for indoor applications across various industrial settings.

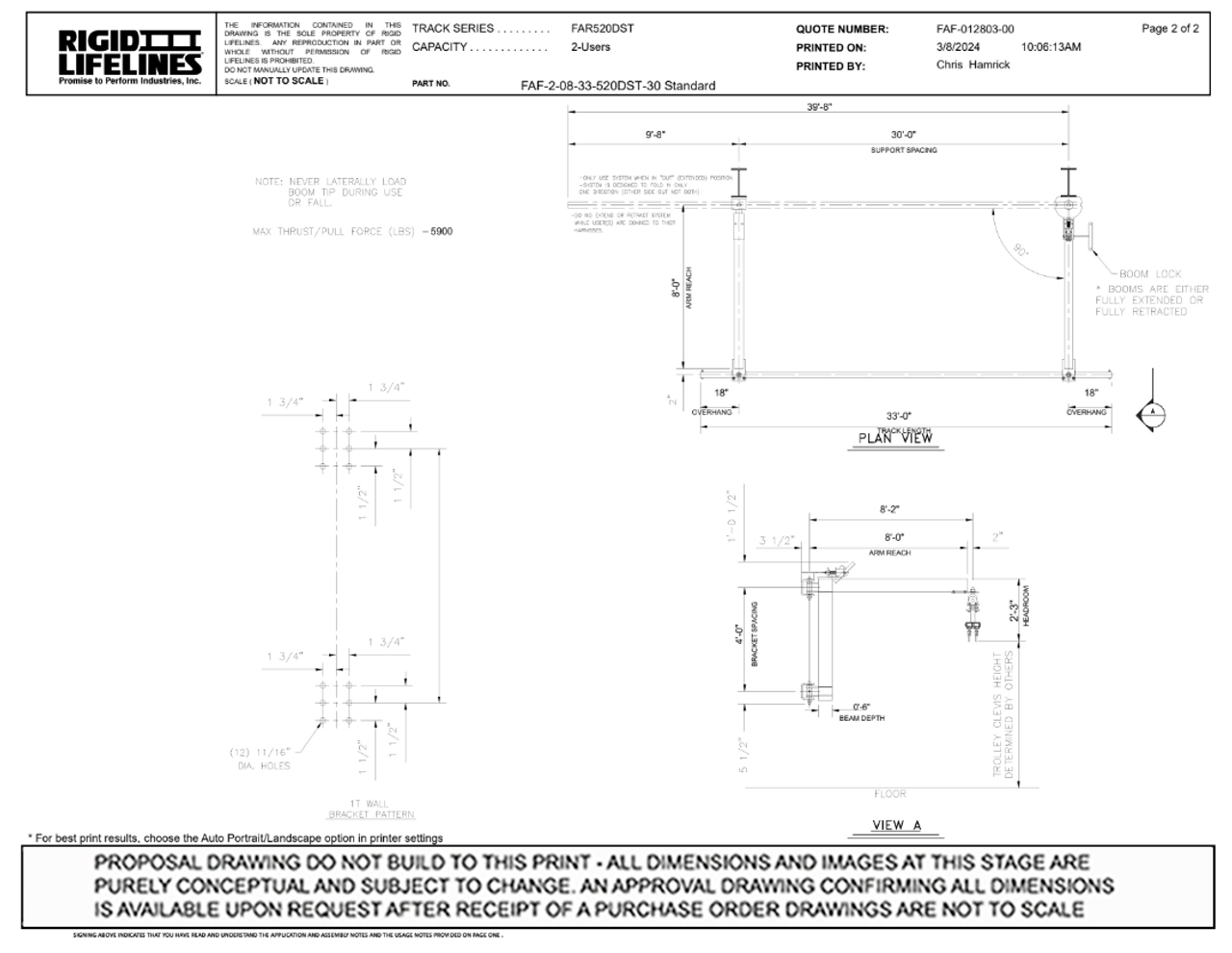

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 2 -User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 8'-0"
Track Length: 33'-0" Including 18" Overhangs on Both Ends
Support Centers 30'-0"
Bracket Centers 4'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*
**Designed to be used ONLY when fully extended**
Trolleys: 2 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops Two at Each End
Thrust/Pull Loading: ± 5900
Weight: ± 1200 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
