Standard Fold-Away Anchor TrackTM System 2-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 6'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ± 4400, Weight: 976 lbs FAF-2-06-28-520DST-25 Rigid Lifelines

Product Overview

Worker Capacity: This system is designed to handle up to 2 users, ensuring safety with a non-passable configuration on its trussed single track.

Support Arms: It comes with 2 support arms for added stability and support during use.

Arm Reach: Users can reach up to 6 feet, making it easy to access different areas within the workspace.

Track Length: The track spans 23 feet in total length, with 18-inch overhangs on both ends, providing ample coverage.

Support and Bracket Centers: The support centers are spaced 20 feet apart, with bracket centers at 4-foot intervals, ensuring stability and structural integrity.

Rotation Lock Feature: One of the support arms has a rotation lock for controlled movement and added safety.

Customizable Drop Length: If operated manually, customers can specify the drop length of the operating rope as needed.

Anchor Trolleys with Auto-Brake Technology: Equipped with 2 anchor trolleys featuring patented auto-brake technology for smooth movement along the track.

Fixed Stops: There are fixed stops at each end of the track to prevent over-travel, ensuring safe operation.

High Thrust/Pull Loading Capacity: With a ±4400-pound thrust/pull loading capacity, it's sturdy and reliable for demanding tasks.

Optimized Weight: Weighing around 976 pounds, it's lightweight yet robust for easy installation and maneuverability.

Durable Coating: Coated with yellow industrial enamel for indoor use, it offers corrosion resistance and maintains a professional appearance.

Comprehensive System: It includes swing arms, track, trolleys, end stops, splice (if needed), and hangers for a complete setup.

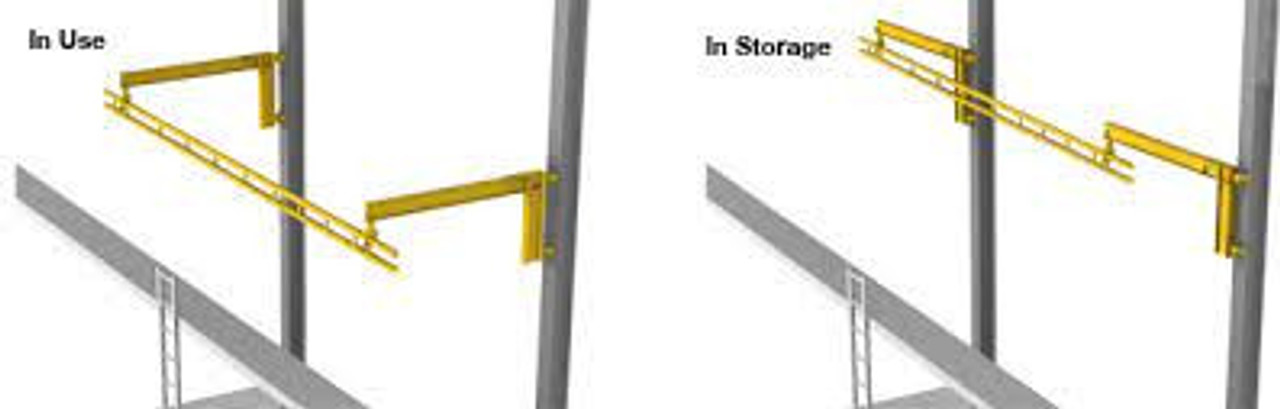

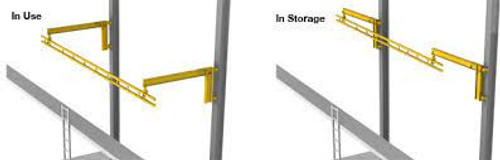

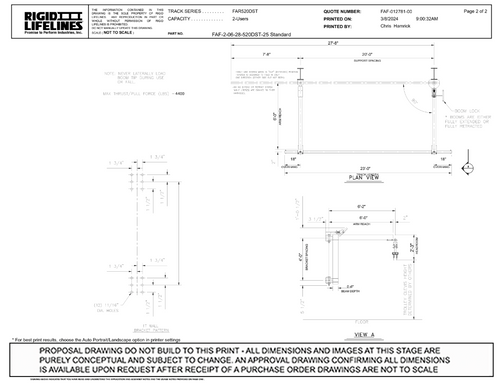

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 2 -User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 6-0"
Track Length: 23-0" Including 18" Overhangs on Both Ends
Support Centers 20-0"
Bracket Centers 4'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*
**Designed to be used ONLY when fully extended**
Trolleys: 2 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops Two at Each End
Thrust/Pull Loading: ± 4400
Weight: ± 976 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
