Product Overview

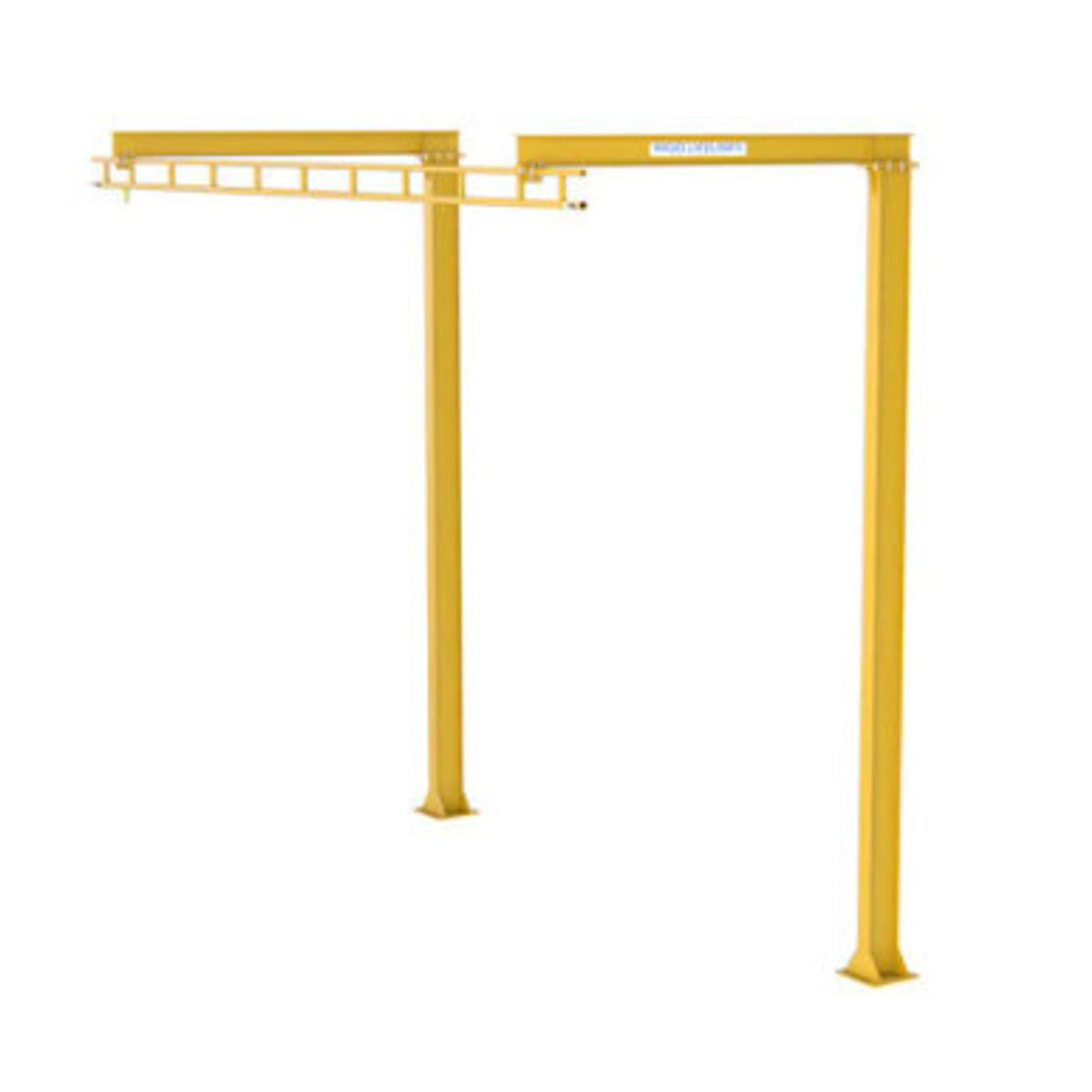

FAFS-1-08-23-520-20 Standard Inverted-L
Worker Capacity: Designed for 1-User (Non-Passable) operation on a Trussed Single Track.
Track Length: Extends to 23'-0", ensuring comprehensive coverage with 18" overhangs on both ends for added accessibility.
Support Centers: Positioned at 20'-0" intervals along the track, guaranteeing stability and efficient load distribution.
Trolley-Hook Height: Towering at 22'-0", providing ample clearance for smooth operation.
Arm Reach: Users benefit from an arm reach of 8'-0", facilitating easy access to materials within their workspace.
Number of Supports: Supported by 2 robust columns, ensuring structural integrity and safety during operation.
Trolleys: Equipped with Anchor Trolleys featuring Patented Auto-Brake technology, allowing for controlled movement along the track.
Technology:
- Fixed End Stops: Strategically positioned at each end to limit travel and ensure safe operation.
- Overturning Moment: Engineered to withstand overturning moments up to 450,000, ensuring stability under various conditions.
Coating: Painted with Armorpoxy Safety Yellow for Outdoor Application, ensuring visibility and protection against environmental elements.
Weight: With a weight of 2,808 lbs, this system offers durability while remaining manageable for installation and maintenance.
Recommended Foundation: Requires a foundation measuring 6' x 6' x 4' to support the system effectively.
Inclusions: The system comes complete with monorail track, hangers, freestanding cantilevered support columns, and trolleys, offering a comprehensive solution for elevated transportation needs.
This meticulously designed system embodies reliability, safety, and efficiency, making it an ideal choice for industrial settings requiring elevated transportation solutions. For further inquiries or to proceed with procurement, please do not hesitate to contact us.
FAFS-1-08-23-520-20 Standard
Inverted-L
Worker Capacity: 1-User (Non-Passable)
Trussed Single Track
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Trolley-Hook Height: 22'-0"
Arm Reach: 8'-0"
Number of Supports 2
Trolleys: Anchor Trolleys with Patented Auto-Brake
Technology
Fixed End Stops: One at Each End
Overturning Moment: 450,000
*Painted with Armorpoxy Safety Yellow for Outdoor Application*
Weight: 2,808 lbs
Recommended
Foundation: 6' x 6' x 4'
* System is complete with monorail track, hangers, freestanding
cantilevered support columns, and trolleys.
