Product Overview

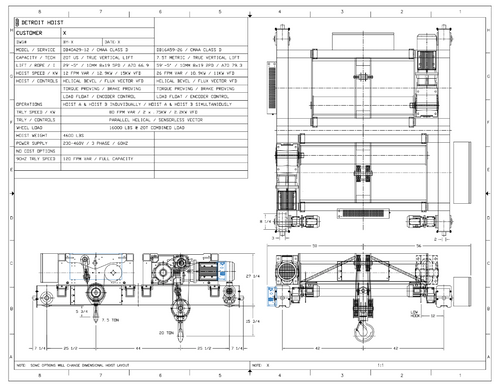

Elevate your heavy lifting operations with the Top Running Double Girder Crane Model DB40A29-12-DB16A59-26, offering exceptional performance and reliability for demanding industrial environments. With impressive capacities of 20.00 tons for the main hoist and 8.25 tons for the auxiliary hoist, this crane is engineered to handle substantial loads seamlessly.
This advanced crane features a robust top-running double girder design, ensuring solid support and stability during operations. The 5 part line reeving for the main hoist allows for a lift height of 29’5”, while the auxiliary hoist utilizes 2 part line reeving to achieve 59’5” of lifting capability. Whether you require high speed or precision, the choice is yours with a hoist lift speed of up to 12.00 FPM for the main hoist and an impressive 26.00 FPM for the auxiliary hoist, lightweight and efficient operation is within reach.
- Main and auxiliary hoist design for versatile lifting needs.
- Robust 13.4 KW and 10.4 KW motors for main and auxiliary hoists, ensuring powerful performance.
- Top-running double girder suspension for stable and secure hoisting.
- Closed-loop vector Variable Frequency Drive (VFD) control for smooth and precise lifting operations.
- Maximum trolley speed of 80.00 FPM for efficient horizontal load transportation.
- CMAA Class D rating for standard indoor service, suitable for a variety of industrial applications.
- Large trolley gauge of 84.0000 inches for stable movement between runway beams.
- Durable construction with premium graphite ductile iron wheels and sheaves.
- Proven safety features, including motor overload protection, dynamic braking, and adjustable electronic limits.
- WEIGHT: Approximately 4600.00 lbs, balancing strength with maneuverability.
This crane embodies cutting-edge technology tailored for peak performance in rigorous environments. Operating on a standard electric power supply of 460VAC, 3-phase, 60Hz, it enhances operational consistency across various settings. The integrated UL508A c UL us listed industrial control panel ensures compliance with electrical regulations and maintains safety standards.
With features such as rubber bumpers, dual 4-pole AC squirrel cage inverter-rated motors for both hoist and trolley, and superior dynamic braking capabilities, the Model DB40A29-12-DB16A59-26 stands as a reliable choice for your material handling requirements. Elevate your lifting solutions to new heights—this crane is engineered for accuracy, speed, and reliability for any industrial job site.
