Product Overview
Suspension / Mount: It's a top-running double girder setup for both main and auxiliary parts.
Capacity: This crane can handle up to 20.00 tons with the main hoist and 5.50 tons with the auxiliary hoist, giving you flexibility for various lifting needs.
Reeving / Lift: It's rigged with 5 part line reeving for the main hoist, providing a lift of 22'4", and 2 part line reeving for the auxiliary hoist, allowing a lift of 41'7".
Hoist Lift Speed: The main hoist can move at a max speed of 12.00 feet per minute (FPM), while the auxiliary hoist boasts a quicker 26.00 FPM.
Hoist Motor: Powered by a 13.4 KW motor for the main hoist and a 7.5 KW motor for the auxiliary hoist, ensuring reliable lifting performance.
Hoist Control: It comes with closed-loop vector Variable Frequency Drive (VFD) control for precise and smooth hoisting.
Trolley Speed: The trolley zips around at a max speed of 80.00 FPM, making it easy to move loads horizontally.
Trolley Motor: Driven by two motors, each rated at 0.75 KW, ensuring steady movement of the trolley.
Trolley Control: Equipped with sensorless vector Variable Frequency Drive (VFD) control for accurate trolley maneuvering.
Power Supply: Runs on standard electric power at 460VAC, 3-phase, 60Hz, with a tolerance of ±5%.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard indoor service, suitable for various indoor environments.
Trolley Gauge: The trolley gauge measures 72.0000 inches, providing ample space for smooth trolley movement along the runway beams.
Approximate Weight: Weighing in at around 4300.00 lbs, it strikes a balance between sturdiness and maneuverability.
Suspension / Mount: It's a top-running double girder setup for both main and auxiliary parts.
Capacity: This crane can handle up to 20.00 tons with the main hoist and 5.50 tons with the auxiliary hoist, giving you flexibility for various lifting needs.
Reeving / Lift: It's rigged with 5 part line reeving for the main hoist, providing a lift of 22'4", and 2 part line reeving for the auxiliary hoist, allowing a lift of 41'7".
Hoist Lift Speed: The main hoist can move at a max speed of 12.00 feet per minute (FPM), while the auxiliary hoist boasts a quicker 26.00 FPM.
Hoist Motor: Powered by a 13.4 KW motor for the main hoist and a 7.5 KW motor for the auxiliary hoist, ensuring reliable lifting performance.
Hoist Control: It comes with closed-loop vector Variable Frequency Drive (VFD) control for precise and smooth hoisting.
Trolley Speed: The trolley zips around at a max speed of 80.00 FPM, making it easy to move loads horizontally.
Trolley Motor: Driven by two motors, each rated at 0.75 KW, ensuring steady movement of the trolley.
Trolley Control: Equipped with sensorless vector Variable Frequency Drive (VFD) control for accurate trolley maneuvering.
Power Supply: Runs on standard electric power at 460VAC, 3-phase, 60Hz, with a tolerance of ±5%.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard indoor service, suitable for various indoor environments.
Trolley Gauge: The trolley gauge measures 72.0000 inches, providing ample space for smooth trolley movement along the runway beams.
Approximate Weight: Weighing in at around 4300.00 lbs, it strikes a balance between sturdiness and maneuverability.

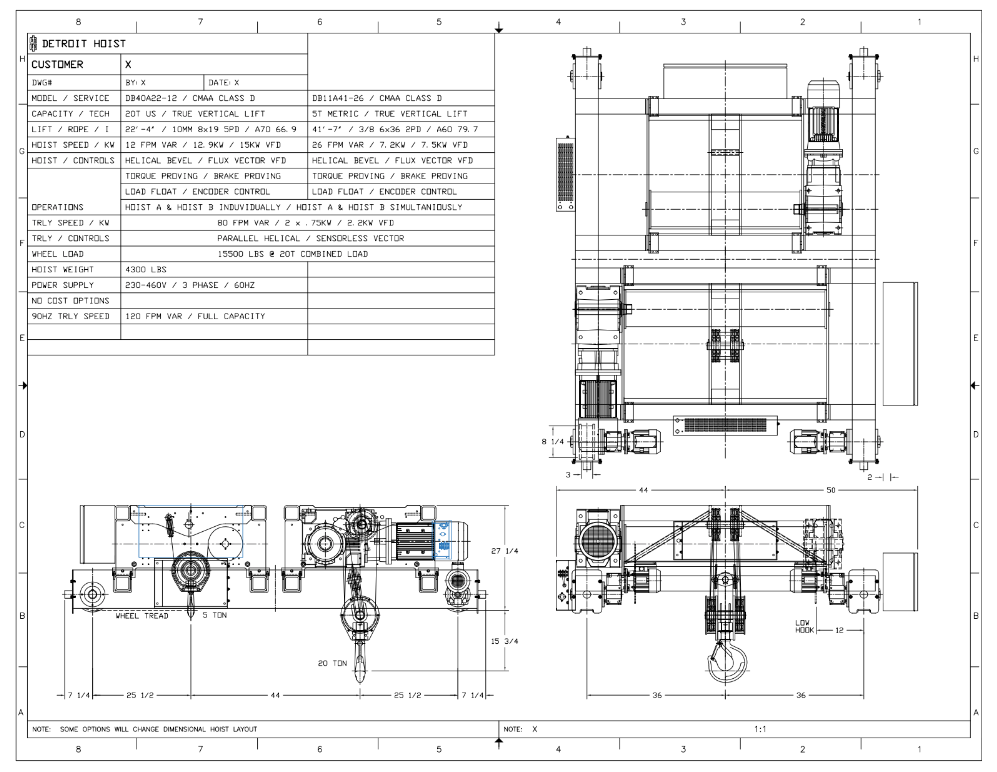

Model DB40A22-12-DB11A41-26
Suspension / Mount Top Running Double Girder Main / Auxiliary
Capacity 20.00 Ton / 5.50 Ton
Reeving | Lift 5 PD / 2 PD | 22'4" / 41'7"
Hoist Lift Speed 12.00 FPM Max / 26.00 FPM Max
Hoist Motor 13.4 KW / 7.5 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .75 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 460VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Indoor Service
Trolley Gauge 72.0000"
Approximate Weight 4300.00 lbs
MODEL FEATURES
Main / Auxiliary hoist design.
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with NEMA 4 enclosure.
A, B, A+B controls for hoist motion (90 Hz not available in both mode).
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
