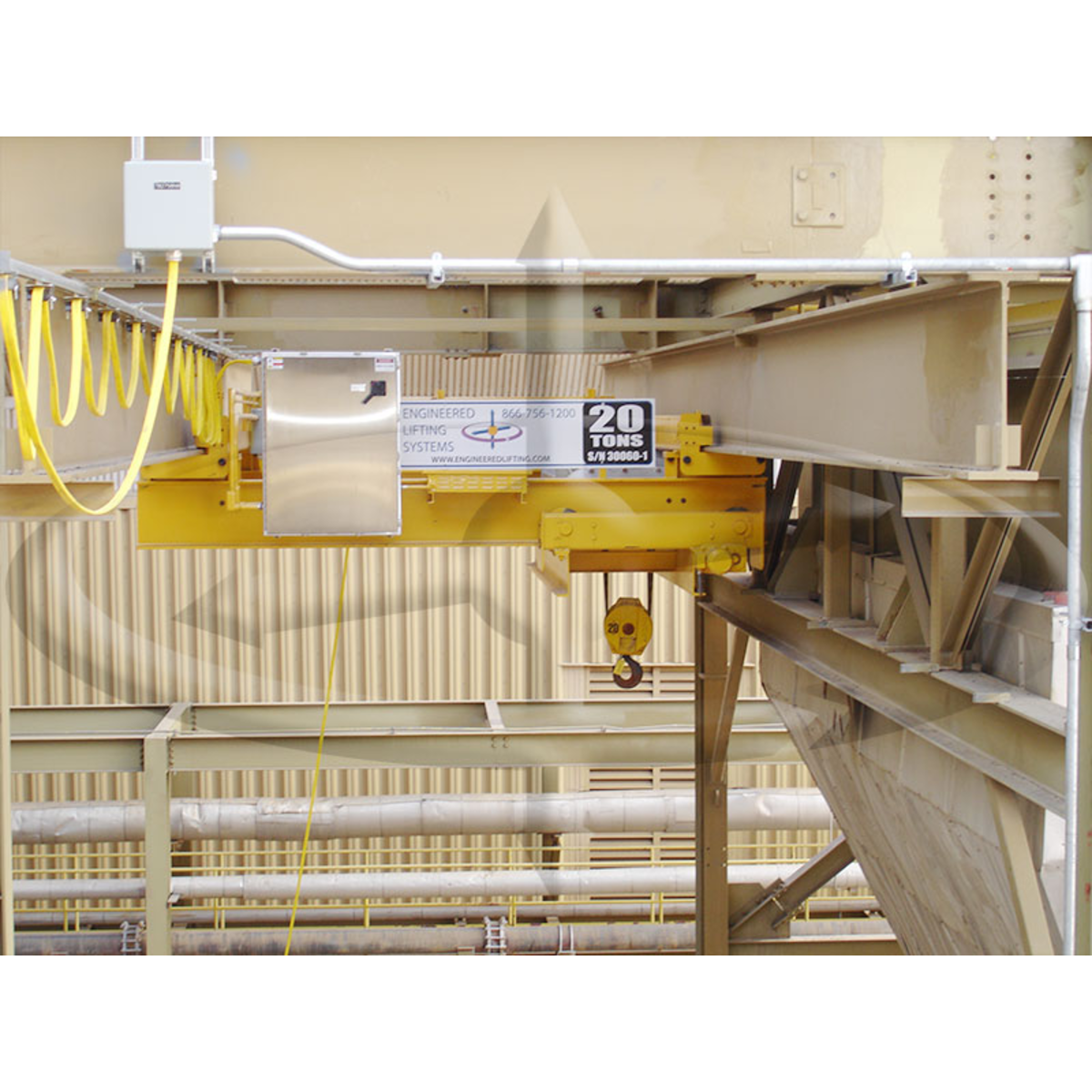

Detroit Hoist Top Running Double Girder Crane (Main/Auxiliary), 20 Ton / 11 Ton Capacity, 12 FPM / 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, Model DB40A29-12-DB22A29-13

Write a Review
$69,680.00
$60,970.00
(You save $8,710.00 )
SKU: DB40A29-12-DB22A29-13
Weight: 4,700.00 LBS
Shipping: $3,000.00 (Fixed Shipping Cost)
Capacity: 40,000 - 49,999 lbs
Lift: 29.4 ft
Mounting: Top Running
Configuration: Double Girder
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Main/Auxiliary), 20 Ton / 11 Ton Capacity, 12 FPM / 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, Model DB40A29-12-DB22A29-13

Detroit Hoist Top Running Double Girder Crane (Main/Auxiliary), 20 Ton / 11 Ton Capacity, 12 FPM / 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, Model DB40A29-12-DB22A29-13

$69,680.00
$60,970.00
(You save $8,710.00 )

Detroit Hoist Top Running Double Girder Crane (Main/Auxiliary), 20 Ton / 11 Ton Capacity, 12 FPM / 13 FPM Lift Speed, 80 FPM Trolley Speed, 84" Trolley Gauge, Model DB40A29-12-DB22A29-13

$69,680.00
$60,970.00
(You save $8,710.00 )

The Top Running Double Girder Main/Auxiliary Crane is engineered to excel in the most demanding industrial environments, effortlessly lifting up to 20 tons with the main hoist and 11 tons with the auxiliary hoist. This advanced crane combines innovative design with heavy-duty performance, making it a reliable choice for businesses focused on operational efficiency and safety.

With its dual girder configuration, this crane guarantees superior stability and support for heavy loads. The hoists are equipped with responsive controls and provide robust lifting capabilities across various applications, making it an indispensable asset for any manufacturing or warehousing operation.

  • Capacity: 20.00 Ton (Main Hoist) / 11.00 Ton (Auxiliary Hoist)
  • Hoist Lift Speed: 12.00 FPM Max for Main Hoist, 13.00 FPM Max for Auxiliary Hoist
  • Trolley Speed: Fast horizontal movement with a maximum speed of 80.00 FPM
  • Advanced Reeving: 5-part line for Main Hoist (29'­5") and 4-part line for Auxiliary Hoist (29'­1")
  • Precision Control: Closed-loop vector Variable Frequency Drive (VFD) for smooth operation
  • Robust Build: Approximately 4700 lbs for enhanced structural integrity while remaining manageable
  • Powerful Motors: 13.4 KW for Main Hoist and 7.5 KW for Auxiliary Hoist, offering reliable performance
  • Heavy-duty Trolley Motors: Two 0.75 KW motors ensure consistent trolley movement
  • Classified for Indoor Use: CMAA Class D suitability for standard indoor environments
  • Trolley Gauge: 84.0000 inches for optimal spacing and movement along the beams

The Top Running Double Girder Crane not only meets but exceeds industrial standards, utilizing premium-grade materials such as graphite ductile iron wheels for enhanced durability. With safety features like load floating, dynamic braking, overload protection, and precision positioning controls, your operations benefit from increased safety and productivity.

Enhance the lifting capabilities of your facility and invest in the Top Running Double Girder Main/Auxiliary Crane, designed to meet rigorous industrial demands while ensuring operational excellence.

The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
