Product Overview
-
Worker Capacity: 1-User (Non-Passable)
- This swing arm system is meticulously engineered to accommodate a single user at a time, ensuring strict adherence to safety protocols and minimizing the risk of overcrowding in the workspace.
-
Arm Reach: 14'-0"
- With an extensive arm reach spanning 14 feet, this system offers unparalleled versatility, enabling users to access distant points within the workspace with precision and efficiency.
-
Bracket Centers: 5'-0"
- The strategically positioned brackets, spaced at 5-foot intervals, provide robust support and stability for the swing arm assembly, ensuring optimal performance and safety during operation.
-
Boom Lock: No
- Absence of a boom lock mechanism allows for unhindered movement of the swing arm, providing flexibility and ease of operation while maintaining stringent safety measures.
-
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake Technology
- Equipped with a high-performance anchor trolley featuring patented auto-brake technology, this system prioritizes safety by automatically engaging brakes to prevent unintended movement and ensure controlled traversal along the track.
-
Thrust/Pull Loading: 6600
- Designed to withstand thrust or pull loading of up to ±6600 pounds, this swing arm system exhibits exceptional strength and resilience, making it suitable for demanding industrial applications requiring heavy-duty performance.
-
Fixed End Stops: One at Each End
- The inclusion of fixed end stops at both ends of the track serves as a reliable safety feature, preventing the trolley from exceeding the designated limits and enhancing operational safety within the predefined range.
-
Weight: 592 lbs
- Weighing approximately 592 pounds, this swing arm system strikes a balance between structural integrity and maneuverability, facilitating ease of installation and adjustment while providing robust support for overhead movement.
-
Coating & Painting: Yellow Industrial Enamel for Indoor Application
- Coated with yellow industrial enamel formulated for indoor applications, the system offers superior corrosion resistance and durability, ensuring longevity and maintaining a professional appearance in indoor environments.
-
Responsibility Note from Rigid Lifelines
- Rigid Lifelines underscores that they are not responsible for the design or engineering of the support structure required for installation, emphasizing the critical importance of ensuring proper structural integrity and compatibility with the system.
-
Anchor Trolley Availability and Safety Note
- The anchor trolley, an indispensable component for safety and operational functionality, is exclusively available from Rigid Lifelines. Its inclusion significantly reduces the risk of suspension trauma associated with fall arrest systems, prioritizing user safety.
-
Customer Requirement for Drop Length of Operating Rope
- Customers are required to specify the drop length of the operating rope, particularly relevant when selecting a boom lock option. This customization ensures optimal functionality and safety based on specific application requirements.
-
Performance Standards Compliance
- All components supplied by Rigid Lifelines adhere to or surpass the rigorous performance standards outlined by ANSI Z359, OSHA 1910, and OSHA 1926, guaranteeing compliance with industry regulations and ensuring exceptional performance and safety standards.
These detailed specifications underscore the advanced design, superior performance, and uncompromising safety features of the column-mounted swing arm system, making it an ideal choice for professional and industrial applications where reliability and safety are paramount.

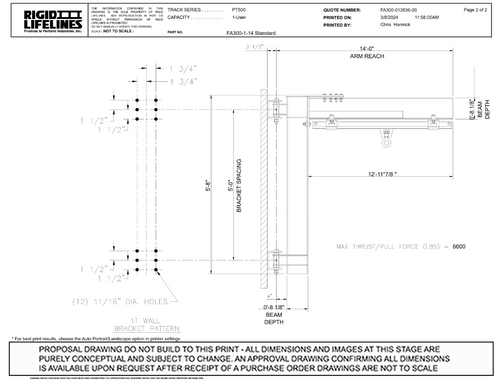

Column-Mounted Swing Arm
Standard
Worker Capacity: 1-User (Non-Passable)
Arm Reach: 14'-0"
Bracket Centers 5'-0"
Boom Lock No
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake
Technology
Thrust/Pull Loading: ± 6600
Fixed End Stops: One at Each End
Weight: ± 592 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with a swing arm, track, trolley(s), and end stops.
**Rigid Lifelines is Not Responsible for Design or Engineering of the
Support Structure**
*Painted with Yellow Industrial Enamel for Indoor Application*
** NOTE - The Anchor Trolley is only available from Rigid Lifelines - Greatly reduces risk of suspension trauma. **
*Customer Must Specify Drop Length of Operating Rope*
****ONLY NEED
DROP LENGTH WHEN BOOM LOCK IS SELECTED*****
All components supplied by RIGID LIFELINES meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926
