Standard Column-Mounted Swing Arm 1-Person, Arm Reach: 6'-0", Bracket Centers 4'-0", Boom Lock No, Thrust/Pull Loading: 3300, Fixed End Stops: One at Each End, Weight: 262 lbs FA300-1-06 Rigid Lifelines

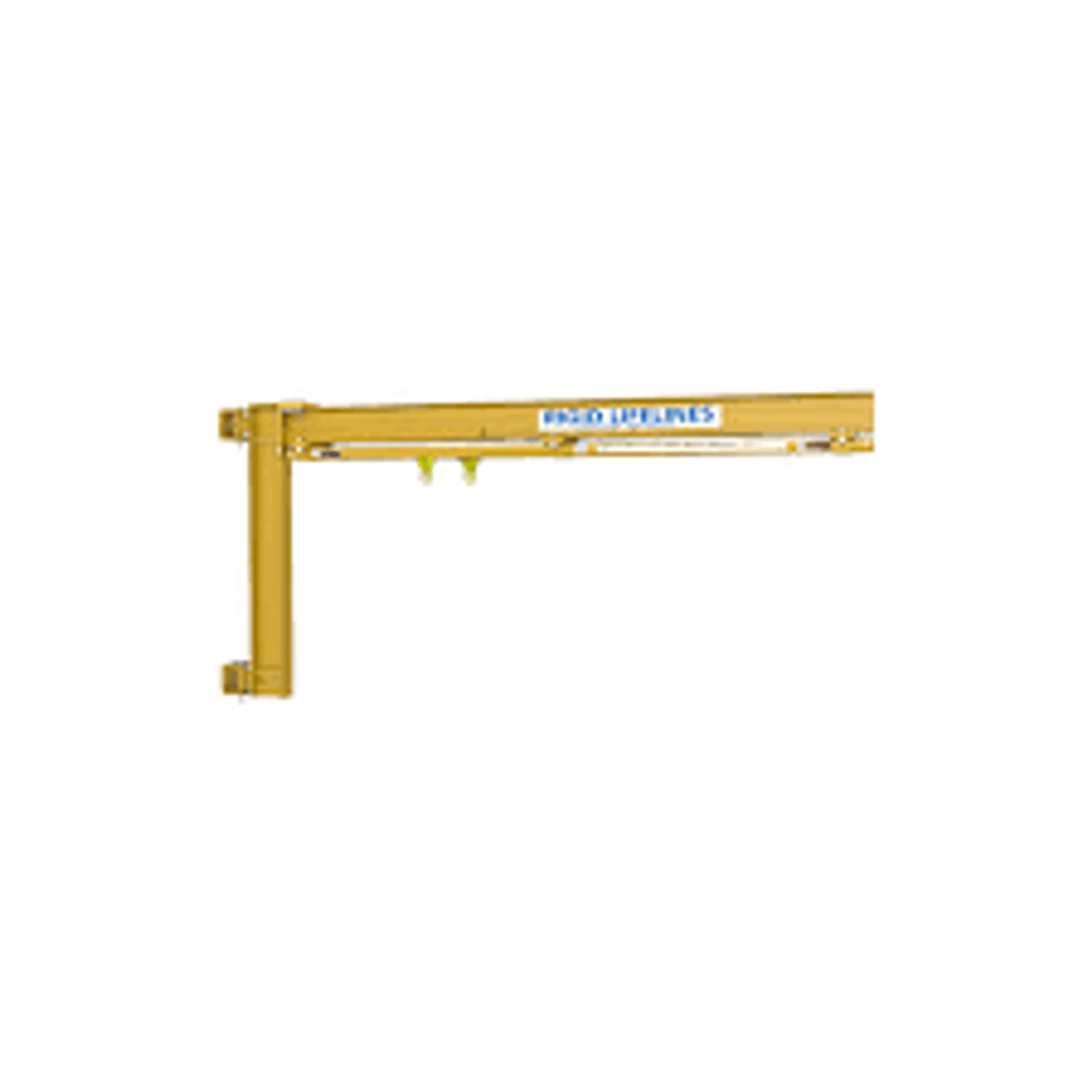

1. Column-Mounted Swing Arm - Standard:

   • This system features a standard configuration for mounting on columns, providing a fixed structure for overhead movement within a designated area.

2. Worker Capacity: 1-User (Non-Passable):

   • Designed for a single user, this system is not intended for simultaneous use by multiple individuals. It adheres to safety standards where only one user can be accommodated at a time.

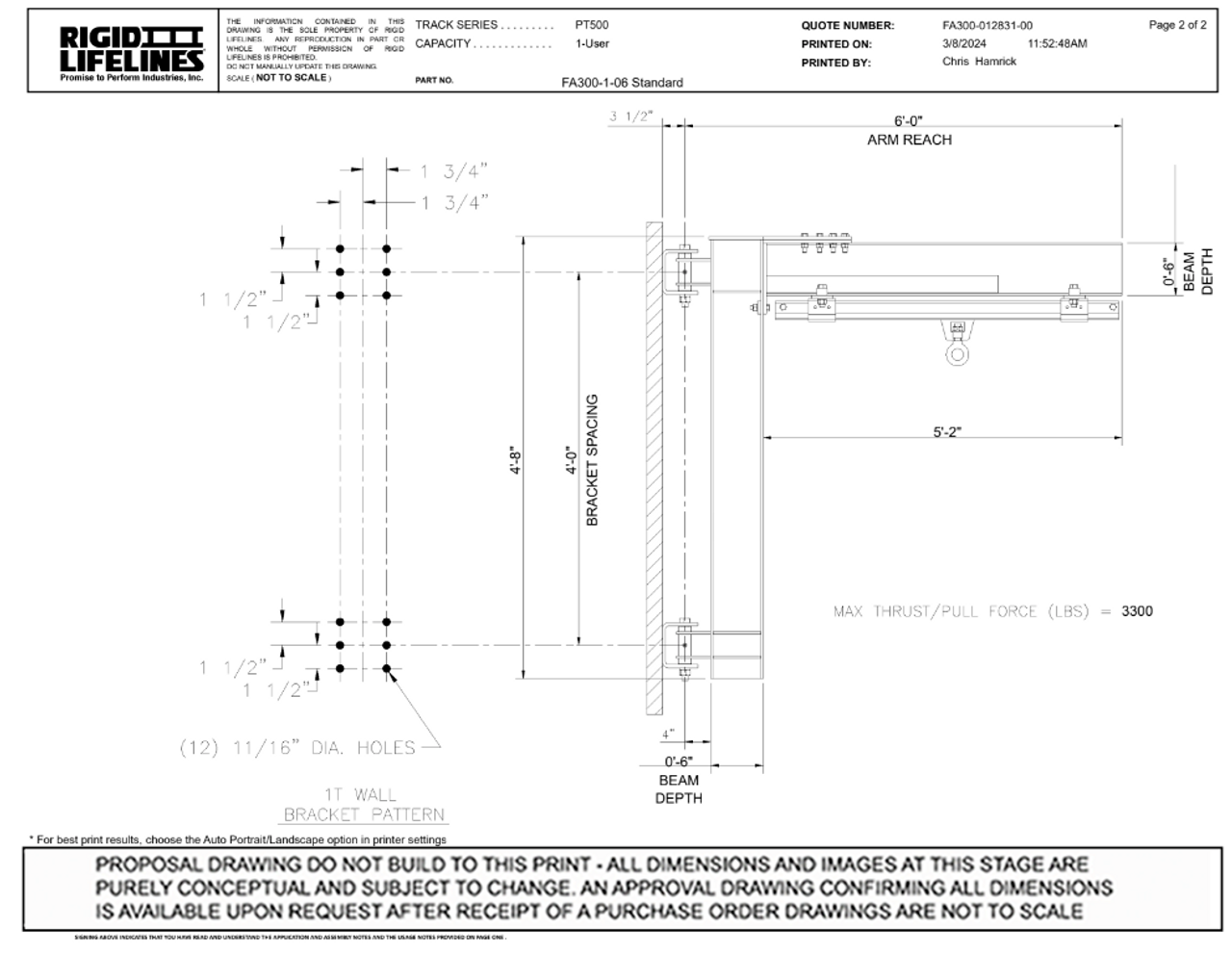

3. Arm Reach: 6'-0":

   • The swing arm extends to a length of 6 feet, allowing users to reach various points within the operating range of the system.

4. Bracket Centers: 4'-0":

   • The distance between bracket centers is 4 feet, providing structural support and stability for the swing arm assembly.

5. Boom Lock: No:

   • This system does not include a boom lock mechanism. A boom lock is a safety feature that secures the swing arm in place to prevent unintentional movement.

6. Trolleys: 1 Anchor Trolleys with Patented Auto-Brake Technology:

   • Equipped with one anchor trolley featuring patented auto-brake technology, enhancing safety by automatically engaging brakes to prevent unintended movement of the trolley along the track.

7. Thrust/Pull Loading: 3300:

   • The system can withstand a thrust or pull loading of approximately 3300 pounds, ensuring stability and structural integrity during operation.

8. Fixed End Stops: One at Each End:

   • Fixed end stops are installed at both ends of the track to prevent the trolley from traveling beyond the designated limits, ensuring safe operation within the defined range.

9. Weight: 262 lbs:

   • The system has an approximate weight of 262 pounds, facilitating ease of installation and mobility while providing robust support for overhead movement.

10. Coating & Painting: Yellow Industrial Enamel for Indoor Application:

    • The system is coated and painted with yellow industrial enamel specifically designed for indoor applications, providing durability and corrosion resistance in indoor environments.

11. Rigid Lifelines is Not Responsible for Design or Engineering of the Support Structure:

    • It's noted that Rigid Lifelines, the manufacturer, is not responsible for the design or engineering of the support structure where the system is installed. This emphasizes the importance of ensuring proper installation and structural integrity of the support framework.

12. Customer Must Specify Drop Length of Operating Rope:

    • The customer is required to specify the drop length of the operating rope, particularly relevant when a boom lock is selected. This customization ensures optimal functionality and safety based on specific application requirements.

13. Anchor Trolley Availability and Safety Note:

    • The anchor trolley, an essential component for safety and functionality, is exclusively available from Rigid Lifelines. It significantly reduces the risk of suspension trauma associated with fall arrest systems.

14. Performance Standards:

    • All components supplied by Rigid Lifelines meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926, ensuring compliance with industry safety standards and regulations.

These specifications provide a comprehensive overview of the column-mounted swing arm system, highlighting its features, capabilities, safety measures, and compliance with relevant standards.
