Standard Column-Mounted Swing Arm 1-Person, Arm Reach: 16'-0", Bracket Centers 6'-0", Boom Lock No, Thrust/Pull Loading: 6300, Fixed End Stops: One at Each End, Weight: 661 lbs FA300-1-16 Rigid Lifelines

1. Worker Capacity: 1-User (Non-Passable)

   • This meticulously engineered swing arm system is designed to accommodate a single user at a time, adhering to stringent safety standards to ensure optimal working conditions and prevent overcrowding in the workspace.

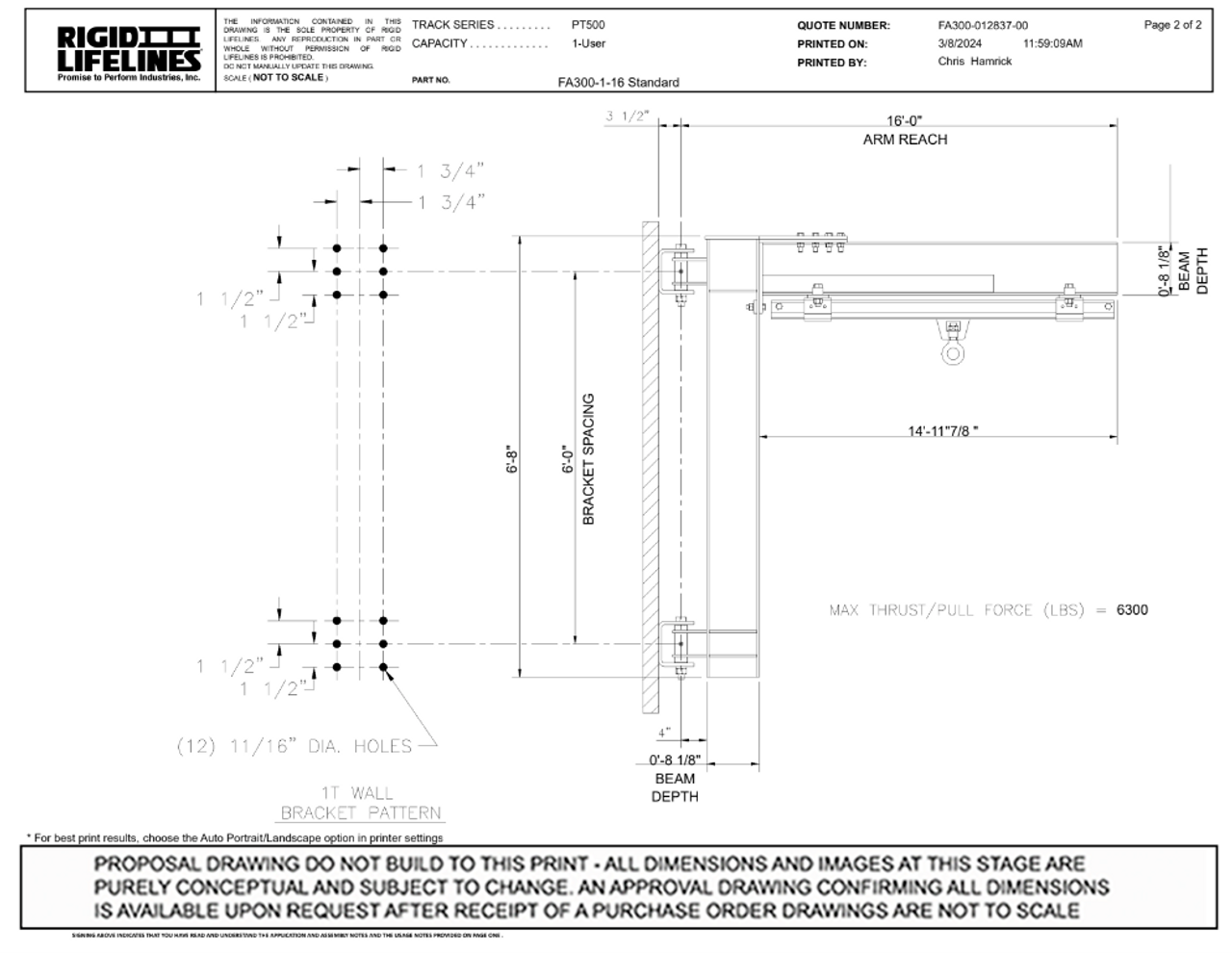

2. Arm Reach: 16'-0"

   • With an impressive arm reach extending up to 16 feet, this system provides unparalleled versatility, enabling users to access even the most distant points within the workspace with precision and efficiency.

3. Bracket Centers: 6'-0"

   • The brackets supporting the swing arm are strategically spaced at intervals of 6 feet, providing robust support and stability for the assembly, ensuring optimal performance and safety during operation.

4. Boom Lock: No

   • This swing arm system is not equipped with a boom lock mechanism, allowing for unrestricted movement and flexibility during operation while maintaining stringent safety measures.

5. Trolleys: 1 Anchor Trolleys with Patented Auto-Brake Technology

   • Equipped with a high-performance anchor trolley featuring patented auto-brake technology, this system prioritizes safety by automatically engaging brakes to prevent unintended movement and ensure controlled traversal along the track.

6. Thrust/Pull Loading: 6300

   • Designed to withstand thrust or pull loading of up to ±6300 pounds, this swing arm system exhibits exceptional strength and resilience, making it suitable for demanding industrial applications requiring heavy-duty performance.

7. Fixed End Stops: One at Each End

   • The inclusion of fixed end stops at both ends of the track serves as a reliable safety feature, preventing the trolley from exceeding the designated limits and enhancing operational safety within the predefined range.

8. Weight: ± 661 lbs

   • Weighing approximately 661 pounds, this swing arm system strikes a balance between structural integrity and maneuverability, facilitating ease of installation and adjustment while providing robust support for overhead movement.

9. Coating & Painting: Yellow Industrial Enamel for Indoor Application

   • Coated with yellow industrial enamel formulated for indoor applications, the system offers superior corrosion resistance and durability, ensuring longevity and maintaining a professional appearance in indoor environments.

10. Responsibility Note from Rigid Lifelines

    • Rigid Lifelines emphasizes that they are not responsible for the design or engineering of the support structure required for installation, highlighting the critical importance of ensuring proper structural integrity and compatibility with the system.

11. Anchor Trolley Availability and Safety Note

    • The anchor trolley, an essential component for safety and operational functionality, is exclusively available from Rigid Lifelines. Its inclusion significantly reduces the risk of suspension trauma associated with fall arrest systems, prioritizing user safety.

12. Customer Requirement for Drop Length of Operating Rope

    • Customers are required to specify the drop length of the operating rope, particularly relevant when selecting a boom lock option. This customization ensures optimal functionality and safety based on specific application requirements.

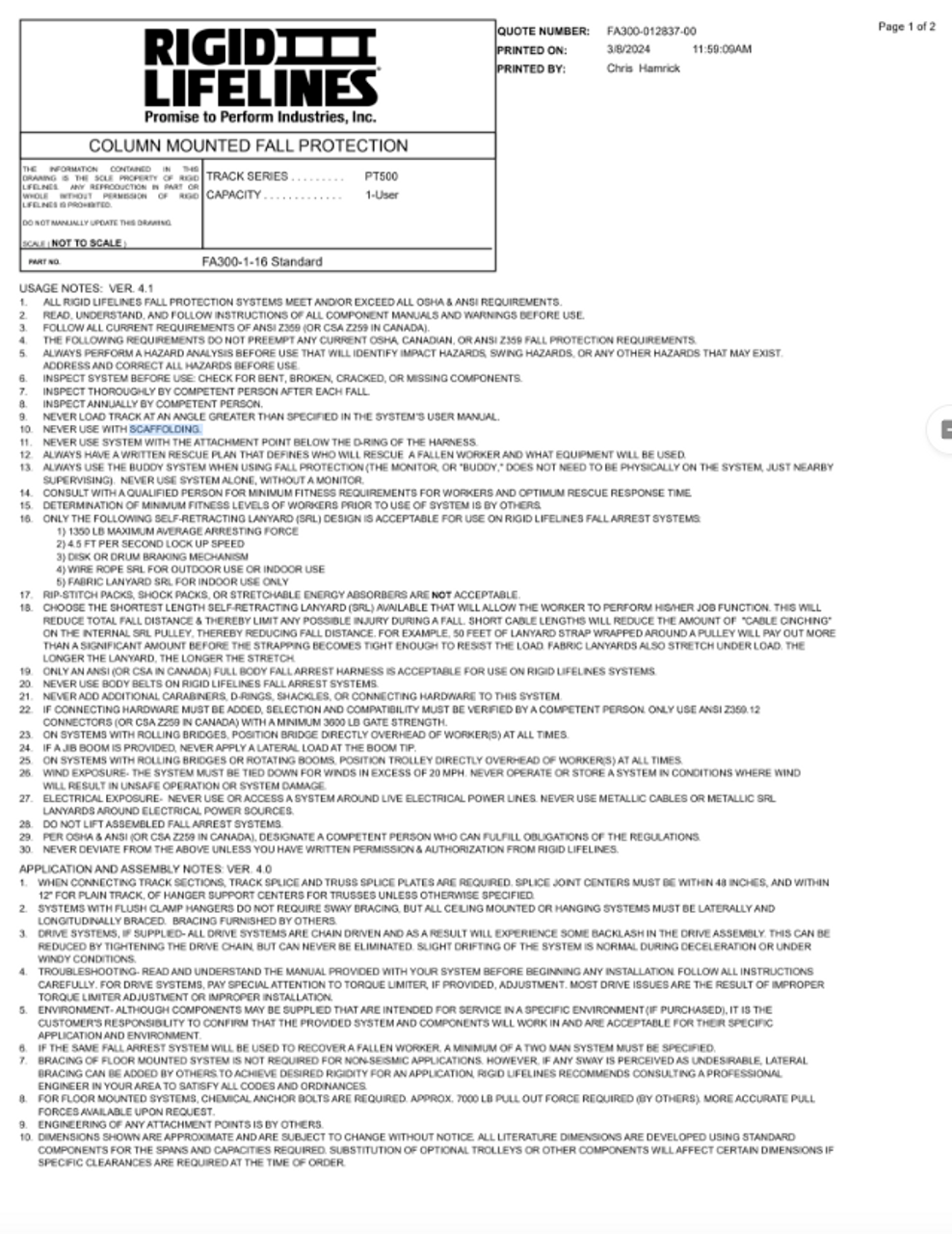

13. Performance Standards Compliance

    • All components supplied by Rigid Lifelines adhere to or surpass the rigorous performance standards outlined by ANSI Z359, OSHA 1910, and OSHA 1926, guaranteeing compliance with industry regulations and ensuring exceptional performance and safety standards.

These detailed specifications underscore the advanced design, superior performance, and uncompromising safety features of the column-mounted swing arm system, making it an ideal choice for professional and industrial applications where reliability and safety are paramount.
