Product Overview
-
Worker Capacity: 1-User (Non-Passable)
- This swing arm is all about keeping things safe and manageable for one person at a time. No overcrowding up there!
-
Arm Reach: 20'-0"
- With a massive 20-foot arm reach, this thing can practically reach across the room! Talk about covering some serious ground in your workspace.
-
Bracket Centers: 6'-0"
- The brackets holding this swing arm up are spaced out at 6-foot intervals, giving it a rock-solid foundation to swing from without any wobbling or shaking.
-
Boom Lock: No
- No need for a boom lock here - it's all about that free-flowing movement. Just make sure you've got a good handle on things while you're swinging around.
-
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake Technology
- This swing arm comes equipped with a slick anchor trolley featuring patented auto-brake technology. Translation: it'll stop on a dime if things start to get a little too wild up there. Safety first, right?
-
Thrust/Pull Loading: 8500
- This swing arm is built tough, able to handle some serious weight with a thrust or pull loading capacity of up to ±8500 pounds. That's one sturdy piece of equipment!
-
Fixed End Stops: One at Each End
- Don't worry about overdoing it - there's a fixed stopper at each end to make sure you don't swing too far and end up bumping into anything you shouldn't.
-
Weight: 1069 lbs
- Weighing in at around 1069 pounds, this swing arm system isn't exactly lightweight, but it's sturdy and dependable, ready to take on whatever you throw its way.
-
Coating & Painting: Yellow Industrial Enamel for Indoor Application
- Coated in bright yellow industrial enamel, this swing arm not only looks cool but also holds up against indoor conditions like a champ. Plus, it adds a pop of color to your workspace!
-
Responsibility Note from Rigid Lifelines
- Just a heads up - Rigid Lifelines wants you to know they're not responsible for designing or engineering the support structure. So, make sure you've got that sorted out on your end.
-
Anchor Trolley and Safety Note
- Oh, and speaking of safety, the anchor trolley is only available from Rigid Lifelines. It's a must-have for keeping things safe and greatly reduces the risk of suspension trauma.
-
Customer's Rope Drop Length Requirement
- If you're thinking of using a boom lock, just let them know how long you want the drop length. That way, everything's set up just how you like it.
-
Performance Standards Compliance
- And last but not least, rest assured that all the bits and pieces meet or exceed those safety standards set by ANSI Z359, OSHA 1910, and OSHA 1926. Safety first, always!
So, there you have it - an incredible swing arm system that's reliable, safe, and ready to lend a hand (or arm) whenever you need it!

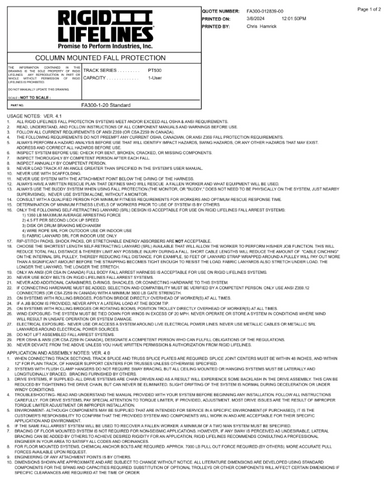

Column-Mounted Swing Arm
Standard
Worker Capacity: 1-User (Non-Passable)
Arm Reach: 20'-0"
Bracket Centers 6'-0"
Boom Lock No
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake
Technology
Thrust/Pull Loading: ± 8500
Fixed End Stops: One at Each End
Weight: ± 1069 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with a swing arm, track, trolley(s), and end stops.
**Rigid Lifelines is Not Responsible for Design or Engineering of the
Support Structure**
*Painted with Yellow Industrial Enamel for Indoor Application*
** NOTE - The Anchor Trolley is only available from Rigid Lifelines - Greatly reduces risk of suspension trauma. **
*Customer Must Specify Drop Length of Operating Rope*
****ONLY NEED
DROP LENGTH WHEN BOOM LOCK IS SELECTED*****
All components supplied by RIGID LIFELINES meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926
