Standard Column-Mounted Swing Arm 1-Person, Arm Reach: 10'-0", Bracket Centers 5'-0", Boom Lock No, Thrust/Pull Loading: 4500, Fixed End Stops: One at Each End, Weight: 364 lbs FA300-1-10 Rigid Lifelines

Product Overview

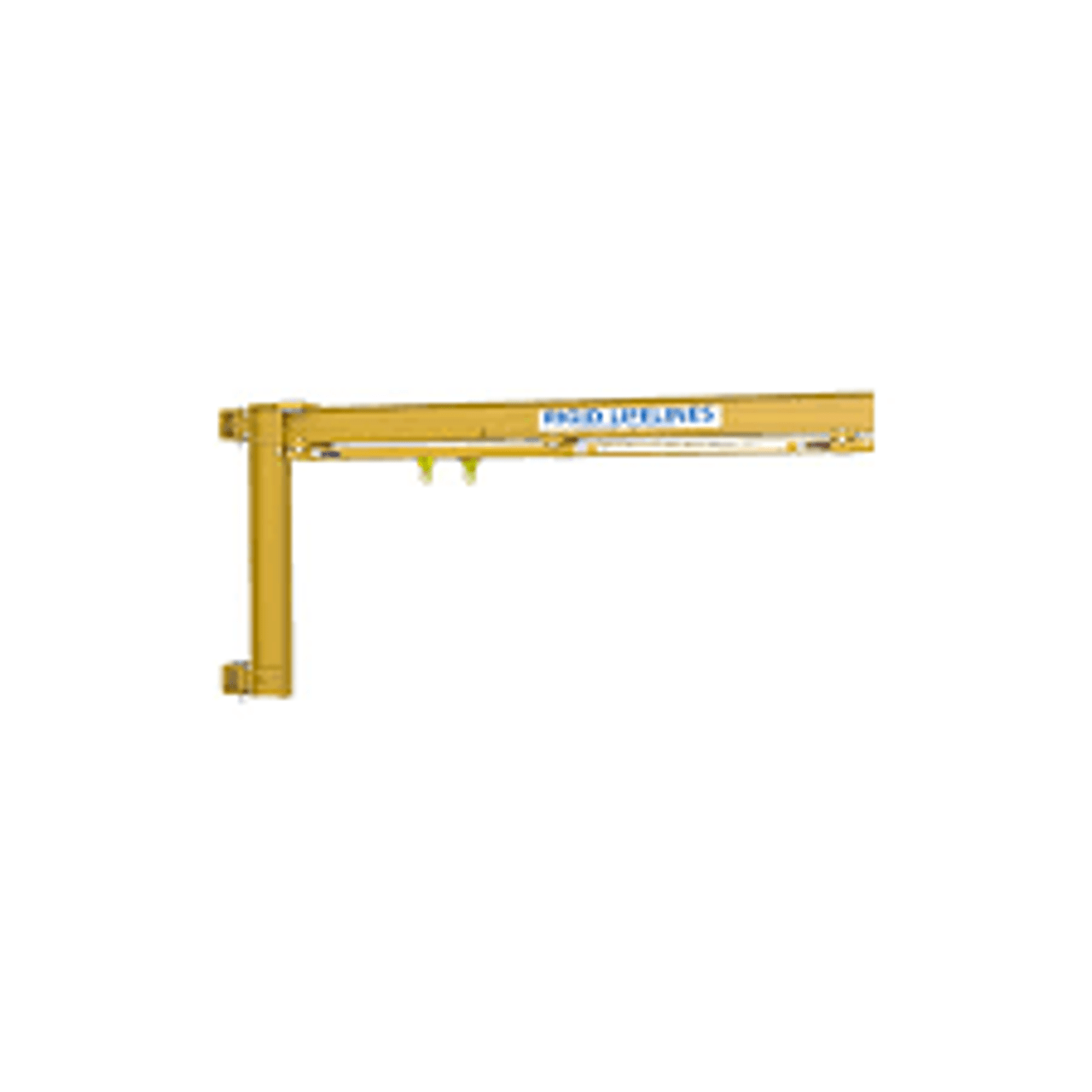

The Standard Column-Mounted Swing Arm by Rigid Lifelines is designed to provide unmatched safety and operational efficiency for single-user applications in industrial settings. With a robust construction, the system promises reliability while adhering to the highest safety standards.

This swing arm system boasts a generous arm reach of 10 feet and is structured to ensure stability and uniform weight distribution thanks to its bracket centers positioned at 5 feet apart. As a non-passable system intended for one user at a time, it prioritizes worker safety by preventing overcrowding, thereby allowing focused and effective operation.

• Worker Capacity: 1-User (Non-Passable)
• Arm Reach: 10'-0" for extensive operational range
• Bracket Centers: 5'-0" for structural stability
• Boom Lock: No, allowing for fluid arm movement
• Trolleys: 1 Anchor Trolley featuring patented auto-brake technology
• Thrust/Pull Loading: ± 4500 lbs, exhibiting durability and reliability
• Fixed End Stops: Positioned at each end to prevent overextension
• Weight: 364 lbs, balancing integrity with portability
• Coating & Painting: Durable yellow industrial enamel for indoor applications
• Design Responsibility: Supported structure design is the customer's responsibility
• Anchor Trolley: Exclusively available from Rigid Lifelines to reduce the risk of suspension trauma
• Drop Length Requirement: Customers must specify operating rope drop length for optimal functionality
• Performance Standards: All components meet/exceed ANSI Z359, OSHA 1910, and OSHA 1926 standards for safety

Investing in the Standard Column-Mounted Swing Arm ensures that your operations are not only efficient but also prioritize the safety of your personnel. Designed to comply with stringent performance requirements, this system is a valuable addition to any professional workspace where safety and operational efficiency are paramount.
