Standard Column-Mounted Swing Arm 1-Person, Arm Reach: 8'-0", Bracket Centers 4'-0", Boom Lock No, Thrust/Pull Loading: 4500, Fixed End Stops: One at Each End, Weight: 307 lbs FA300-1-08 Rigid Lifelines

Product Overview

1. Worker Capacity: 1-User (Non-Passable):

   • Yep, this system's built for one person at a time, keeping safety in check and making sure things don't get overcrowded up there.

2. Arm Reach: 8'-0":

   • With an arm reach of 8 feet, it's got some decent reach to help you get to those tricky spots without breaking a sweat.

3. Bracket Centers: 4'-0":

   • The brackets are spaced 4 feet apart, giving the swing arm a sturdy foundation to pivot on while you're doing your thing.

4. Boom Lock: No:

   • No boom lock here, so it's a bit more free-flowing. Just make sure to keep a handle on things while you're swinging around.

5. Trolleys: 1 Anchor Trolleys with Patented Auto-Brake Technology:

   • Got one of those slick anchor trolleys with auto-brake tech. It's like having a built-in safety net to stop you in your tracks if things start going haywire.

6. Thrust/Pull Loading: 4500:

   • Handles thrust or pull loads up to around 4500 pounds, so it's pretty solid and can take a fair bit of weight without breaking a sweat.

7. Fixed End Stops: One at Each End:

   • Don't worry about overshooting your mark - there's a fixed stop at each end to keep the trolley from going too far and causing any mishaps.

8. Weight: 307 lbs:

   • Not too heavy, not too light - just around 307 pounds. Makes it easy to set up and move around if you need to tweak things a bit.

9. Coating & Painting: Yellow Industrial Enamel for Indoor Application:

   • It's all coated in this bright yellow industrial enamel, perfect for indoor use. Plus, it adds a pop of color to your workspace!

10. Support Structure Responsibility Note:

    • Oh, and just a heads up, Rigid Lifelines isn't responsible for designing or engineering the support structure. So, make sure you've got that sorted out on your end.

11. Anchor Trolley and Safety Note:

    • And remember, the anchor trolley's only available from Rigid Lifelines. It's a must-have for safety and reduces the risk of any suspension-related issues.

12. Customer's Rope Drop Length Requirement:

    • If you're thinking of using a boom lock, just let them know your drop length preference. Makes sure everything's set up just how you like it.

13. Performance Standards:

    • Oh, and rest easy knowing all the bits and bobs meet or beat the safety standards set by ANSI Z359, OSHA 1910, and OSHA 1926. Safety first, always!

So, that's the lowdown on this swing arm system - reliable, safe, and ready to lend a hand (or arm) whenever you need it!

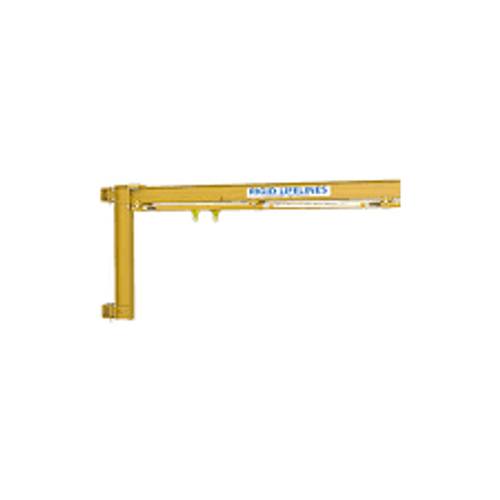

Column-Mounted Swing Arm
Standard
Worker Capacity: 1-User (Non-Passable)
Arm Reach: 8'-0"
Bracket Centers 4'-0"
Boom Lock No
Trolleys: 1 Anchor Trolleys with Patented Auto-Brake
Technology
Thrust/Pull Loading: 4500
Fixed End Stops: One at Each End
Weight: 307 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with a swing arm, track, trolley(s), and end stops.
**Rigid Lifelines is Not Responsible for Design or Engineering of the
Support Structure**
*Painted with Yellow Industrial Enamel for Indoor Application*
** NOTE - The Anchor Trolley is only available from Rigid Lifelines - Greatly reduces risk of suspension trauma. **
*Customer Must Specify Drop Length of Operating Rope*
****ONLY NEED
DROP LENGTH WHEN BOOM LOCK IS SELECTED*****
All components supplied by RIGID LIFELINES meet or exceed the performance requirements of ANSI Z359, OSHA 1910, and OSHA 1926
