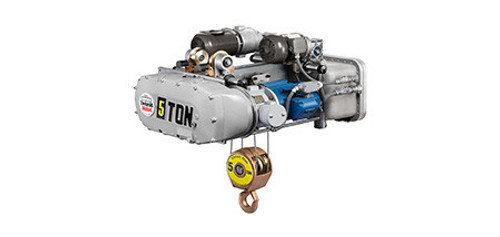

Product Overview
Suspension / Mount: This bad boy's designed for monorail suspension or mounting. You can set it up however you need, whether it's hanging from the ceiling or mounted on the wall.
Capacity: It's got a hefty lifting capacity of 5.50 tons. That means it can handle some serious weight without breaking a sweat.
Reeving | Lift: With a 2-part reeving system, this hoist can reach up to 77 feet and 3 inches. That's tall enough to reach the top of a seven-story building!
Hoist Lift Speed: It can lift stuff at a max speed of 26.00 feet per minute. Pretty zippy for a big ol' hoist, huh?
Hoist Motor: Powered by a 7.5 kW motor, this thing's got the muscle to lift heavy loads without breaking a sweat.
Hoist Control: It's got closed-loop vector Variable Frequency Drive (VFD) control, which basically means it's super precise and can handle all sorts of lifting tasks with ease.
Trolley Speed: The trolley can zoom along at 60.00 FPM, so you can move your stuff around the workspace in no time.
Trolley Motor: Comes with two .37 kW motors to power the trolley. They might be small, but they pack a punch!
Trolley Control: With sensorless vector VFD control, the trolley moves smoothly and stops precisely, giving you full control over your material handling.
Power Supply: Runs on standard electric power at 230VAC, 3-phase, and 60Hz. Plug it in, and you're good to go.
CMAA Class | Atmosphere | Location: It's built to meet Class D standards, so it can handle the usual industrial atmosphere without breaking a sweat. Plus, it's weather-resistant, so you can use it outdoors too!

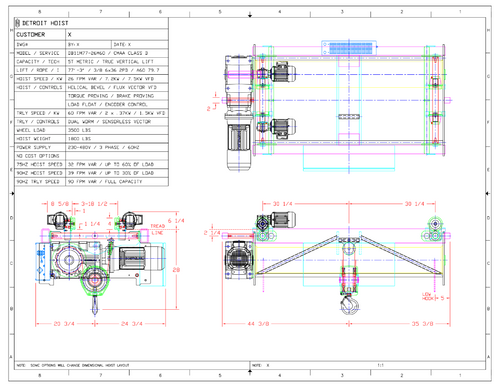

Beam Size: Just refer to the mechanical drawing for the exact beam size. Easy peasy.
Approximate Weight: Weighs in at around 1800.00 lbs. It's sturdy enough to handle heavy lifting but not too heavy to set up.
Model DB11M77-26
Suspension / Mount Monorail
Capacity 5.50 Ton
Reeving | Lift 2 PD | 77'3"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 7.5 kw
Hoist Control Closedloop vector VFD control
Trolley Speed 60.00 FPM Max
Trolley Motor 2 @ .37 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Beam Size Reference Mechanical Drawing
Approximate Weight 1800.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter rated trolley motors.
Rubber bumpers and drop lugs / rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
