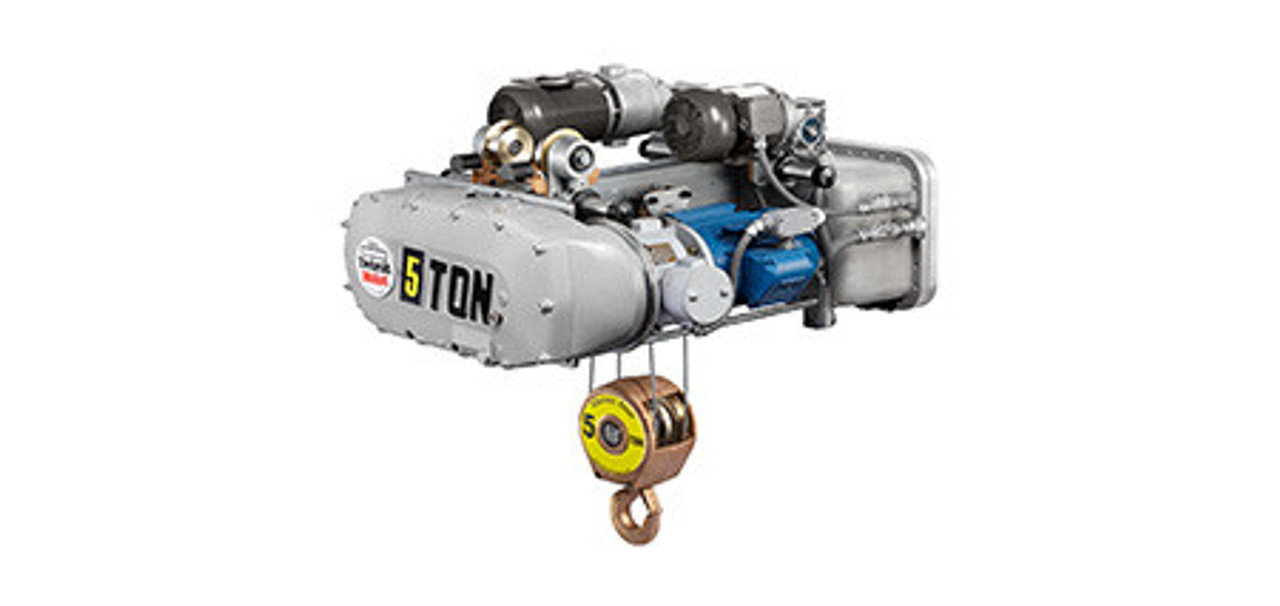

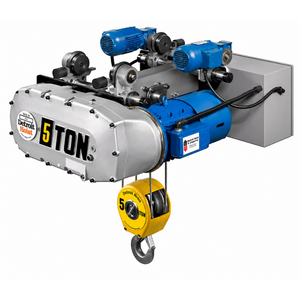

Monorail, Capacity: 5.50 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 60.00 FPM Max, DB11M41-26, Detroit

Product Overview

Suspension / Mount: Designed for monorail suspension or mounting, providing flexibility in installation to accommodate various operational setups and spatial constraints.

Capacity: Boasting a robust lifting capacity of 5.50 tons, this hoist system is well-suited for handling heavy loads with ease and efficiency, enhancing productivity in material handling operations.

Reeving | Lift: Utilizes a 2-part reeving system for lift operation, ensuring stability and control during lifting tasks over a substantial lift height of 41 feet and 7 inches.

Hoist Lift Speed: With a maximum lift speed of 26.00 feet per minute (FPM), this hoist system enables swift and efficient vertical movement of loads, optimizing workflow and reducing cycle times.

Hoist Motor: Driven by a powerful 7.5 kW hoist motor, this system delivers ample torque and power to facilitate smooth and reliable lifting of heavy loads, ensuring consistent performance under demanding conditions.

Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control, offering precise speed and torque regulation for accurate positioning and safe operation of the hoist mechanism.

Trolley Speed: The trolley system features a maximum speed of 60.00 FPM, enabling rapid horizontal movement of loads along the monorail beam, enhancing operational efficiency and flexibility.

Trolley Motor: Equipped with two .37 kW trolley motors, the system provides sufficient power to support the lateral movement of loads with precision and control.

Trolley Control: Utilizes sensorless vector VFD control for the trolley, ensuring smooth acceleration and deceleration, as well as precise positioning during lateral movement of loads.

Power Supply: Operates on electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, ensuring compatibility with standard industrial power sources and facilitating seamless integration into existing electrical systems.

CMAA Class | Atmosphere | Location: Compliant with CMAA Class D standards, this hoist system is engineered to operate reliably in standard atmospheric conditions, while also featuring weather-resistant characteristics for enhanced durability in outdoor environments.

Beam Size: The beam size is specified in the reference mechanical drawing provided, ensuring proper compatibility and integration with existing infrastructure.

Approximate Weight: Weighing approximately 1600.00 lbs, this hoist system strikes a balance between robust construction and manageable weight, facilitating ease of installation and handling.

Model DB11M41-26
Suspension / Mount Monorail
Capacity 5.50 Ton
Reeving | Lift 2 PD | 41'­7"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 7.5 kW
Hoist Control Closed­loop vector VFD control
Trolley Speed 60.00 FPM Max
Trolley Motor 2 @ .37 kW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant

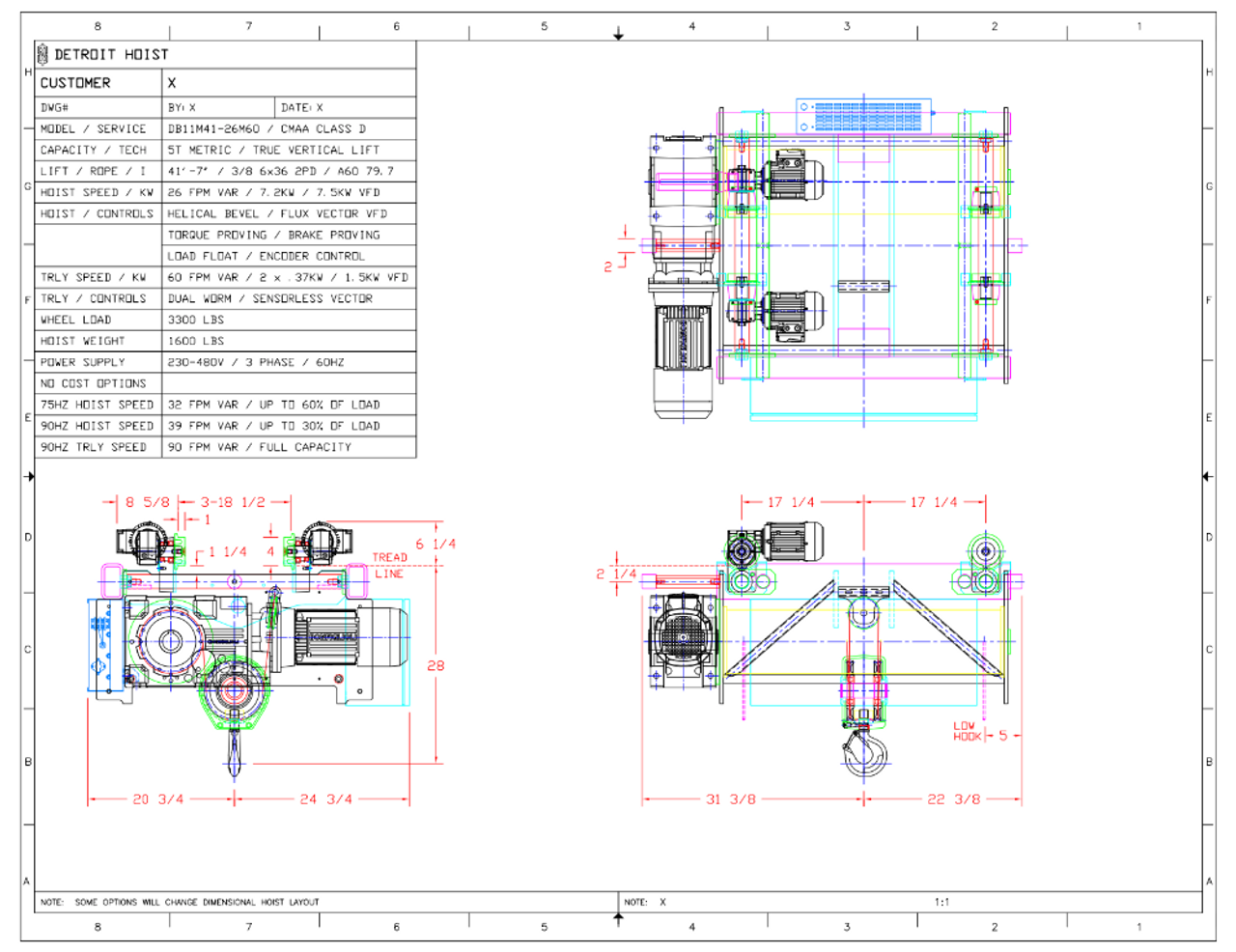

Beam Size Reference Mechanical Drawing
Approximate Weight 1600.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter rated trolley motors.

Rubber bumpers and drop lugs / rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
